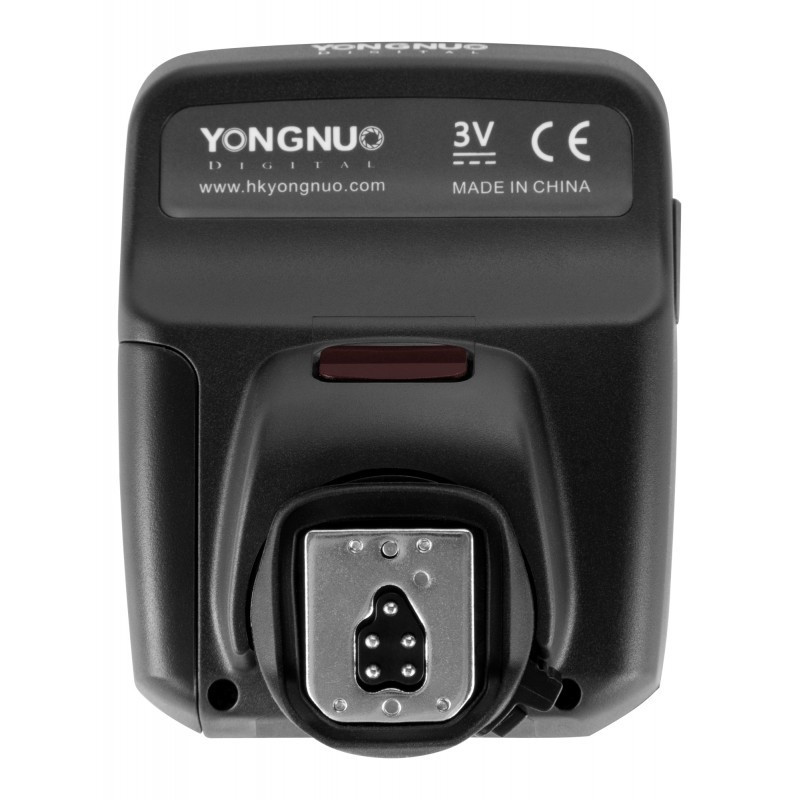

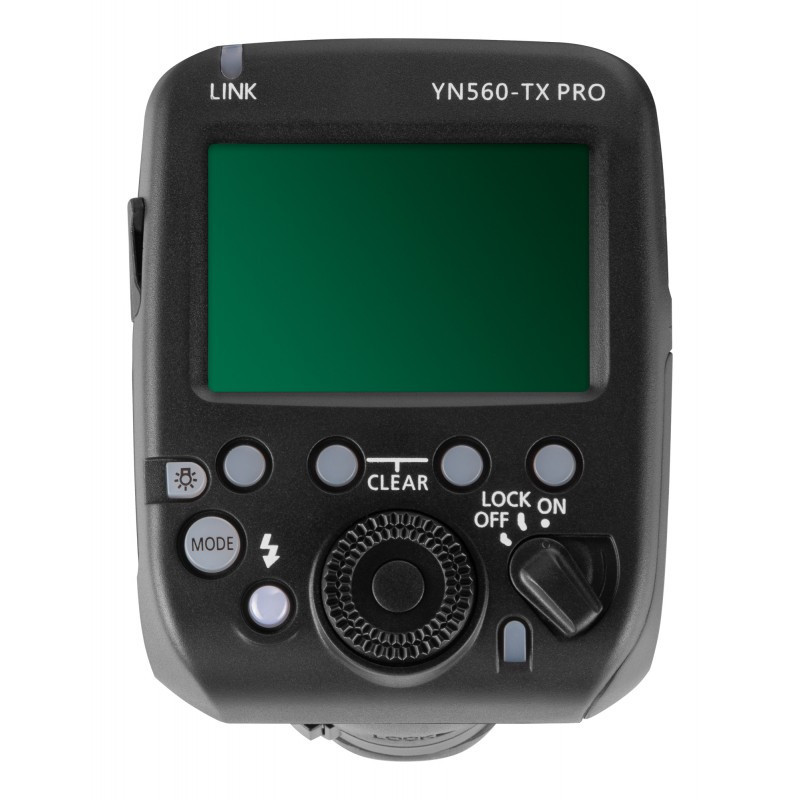

Yongnuo YN560-TX Pro Transmitter for Canon

Yongnuo YN560-TX Pro Transmitter for Canon

YN560-TX Pro is an advanced Yongnuo radio controller for remote control of reporter lamps. This improved version of the YN560-TX II combines the older RF602/603/605 and YN622 II wireless trigger systems in a sense. Among other things, the device allows you to control lamps in five groups: flash power adjustment, torch zoom, TTL automation and HSS synchronization. The controller is designed for Canon cameras.

Amazing opportunities

- Full support for TTL/M/Multi/GR flash modes

- 16 working channels, 5 independent groups and 10,000 configurable photographer IDs

- synchronization of the first and second shutter curtain

- synchronization with short HSS shutter speed

- flash power compensation, exposure lock and exposure bracketing

- remote lamp burner zoom control

- 2.4 GHz radio signal frequency allows communication at a distance of 100 meters!

Compatible lamps

The YN560-TX Pro radio controller can control reporter lights that have a built-in radio receiver.

These models can be activated in manual mode:

- YN560 III

- YN560 IV

- YN660

- YN720

- YN860Li

In automatic mode (TTL):

- YN200

- YN685C

- YN685N

- YN862C

- YN968C

- YN968N II

* the full list of compatibility and supported features is provided in a separate table

Compatible receivers

Lamps that do not have an integrated, system-compatible radio receiver can be connected to one of these models.

- RF-602-RX

- RF-603 II

- RF-605

- YN622C II

- YN622N II

Specification

- model: Yongnuo YN560-TX Pro

- signal frequency: 2.4 GHz

- signal range: up to 100 m

- available working channels: 16

- possible lamp groups: 5

- possible photographer IDs: 10000

- TTL flash output compensation: +/-3 EV in 1/3 EV steps

- manual flash power adjustment: 1/128 - 1/1 in 1/3 EV steps

- Launch modes:

- manual M

- Stroboscopic Multi

- automatic TTL

- GR Group

- power supply: 2x alkaline battery / AA rechargeable battery

- dimensions: 6.8 x 6.7 x 8.1 cm

- weight: 110 g

Other features:

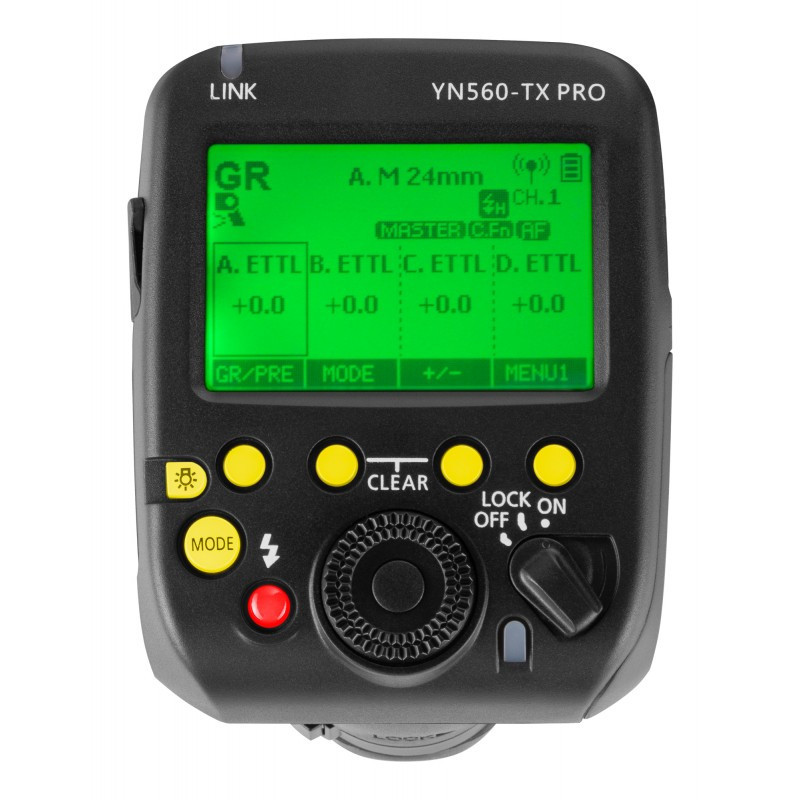

- large, LCD display with backlight

- clear, illuminated buttons

- intuitive interface

- synchronization with the first or second shutter curtain

- High-speed sync (HSS)

- AF system support

- micro USB port for software updates

Compatibility

- Canon cameras

- flashing:

- YN200

- YN560 III

- YN560 IV

- YN660

- YN685

- YN720

- YN860Li

- YN862C

- YN968C

- YN968N II

- radio triggers:

- RF602-RX

- RF603 II

- RF605

- YN622C II

- YN622N II

In the set

- 'Yongnuo YN560-TX Pro' radio controller to 'Canon'

- bushing
