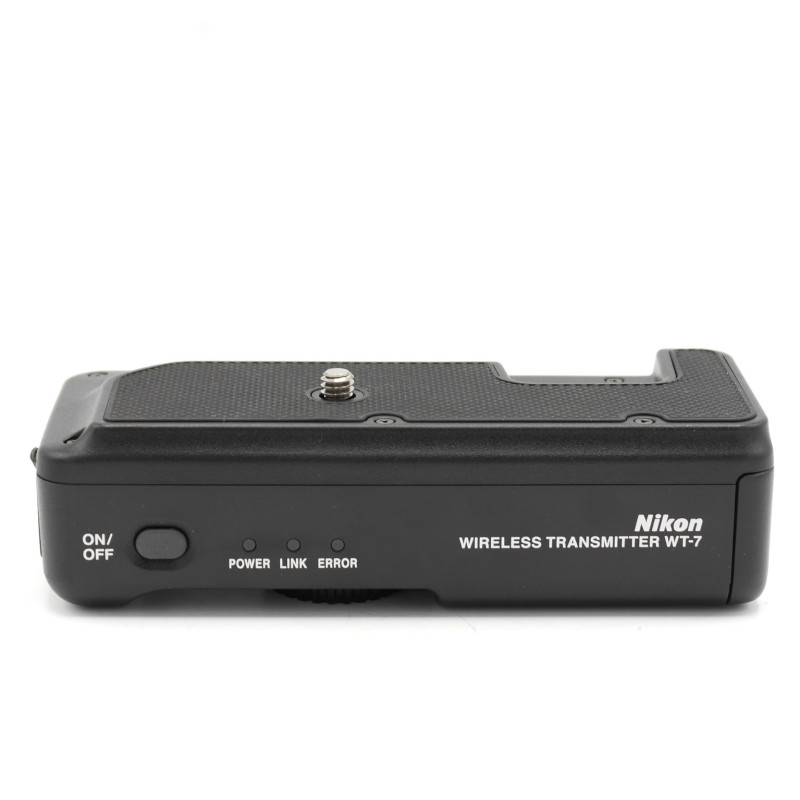

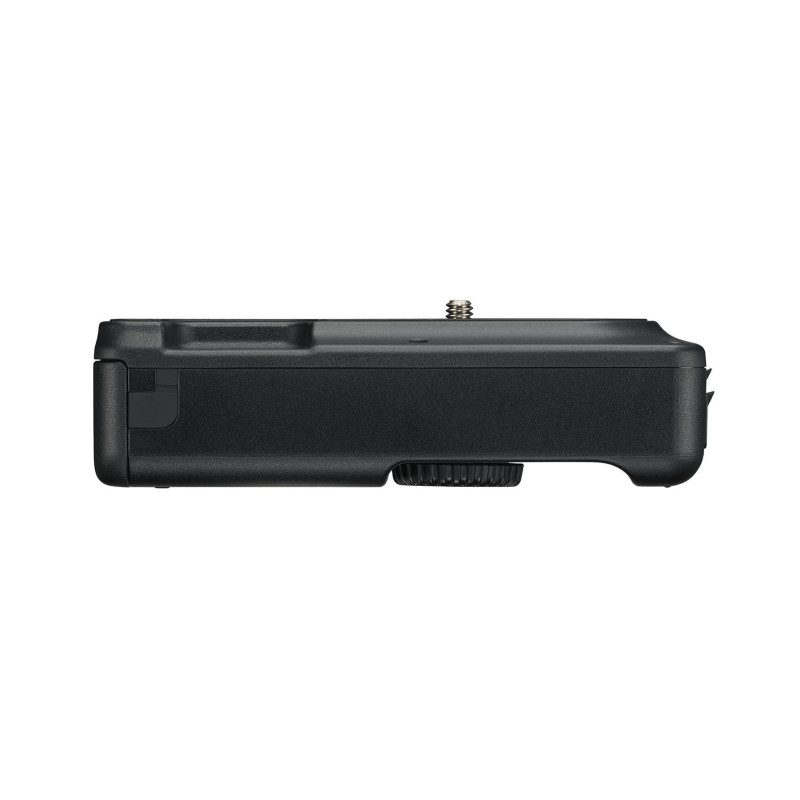

Nikon WT-7A Wireless Transmitter (Z6,Z7,D500,D780,D850, etc.)

Nikon WT-7A Wireless Transmitter(Z6,Z7,D500,D780,D850,D810,D810A,D750,D7200)

This compact, highly efficient transmitter provides a connection between the camera and a wireless network up to 200 m away, at speeds of up to 866.7 Mbps. It supports the IEEE 802.11ac wireless LAN function.

It has access point, HTTP and FTP connection modes, and can be used with multiple cameras simultaneously. Remote control of camera settings and live view output can be used in HTTP mode or on a computer running the Nikon Camera Control Pro 2 software. HTTP mode allows you to use any web browser, including that on a smart device, and control remotely via a wireless or cabled Internet connection.

The WT-7A wireless transmitter is powered by one EN-EL15¹ battery.

¹nepridedamas(komplektacijoje EN-EL15 battery not available)
Compatibility * :

Nikon D500, D780, D850, Z6, Z7(palaikoma all camera software)

Nikon D810(reikalinga C software version 1.12 or later)

Nikon D810A(reikalinga C software version 1.02 or later)

Nikon D750(reikalinga C software version 1.11 or later)

Nikon D7200(reikalinga C software version 1.02 or later)

More information about compatibility and support: https://www.nikonimgsupport.com/eu/BV_article?articleNo=000006299&configured=1&lang=en_GB#WT-7

*The latest firmware update for the WT-7A wireless transmitter is required for full support.

Technical data

Ethernet connection and standards

1 x RJ-45 (802.3ab, 802.3u, 802.3 Ethernet)

10/100/1000 Mbps (auto-sensing)

Wireless standards

802.11ac, 802.11a/b/g/n

Operating frequency (MHz)

WT-7A: 5180-5320 MHz(36/40/44/48/52/56/60/64 channels) 5745-5825 MHz(149/153/157/161/165 channels) 2412-2462 MHz (channels 1-11)

Approximate range (line of sight) 1

Approximately 200 m (656.1 ft)

Data transfer speed 2

802.11a/g: 6,9,12,18,24,36,48,54 Mbps

802.11b: 1,2,5.5,11 Mbps

802.11n: 300 Mbps (maximum)

802.11ac: 866.7 Mbps (maximum)

Security authentication

Open system, common code, WPA-PSK, WPA2-PSK

Encryption

128/64-bit WEP, TKIP, AES

Wireless setup

WPS 2.0 support

Access protocols

Infrastructure network, special

Energy source

Rechargeable EN-EL15 Li-ion battery 1x - purchase separately (not included)

EP-5B charging cable and EH-5b AC adapter - purchase separately (not included)

Working environment

Temperature: 0-40°C / 32-131°F; Humidity: less than 85% (non-condensing)

Weight

Approximately 175g / 6.2oz (body only)

Dimensions (W × H × D)

Approximately 135 × 37 × 60 mm

1. With a large antenna on the wireless LAN access point. The range is determined by the signal strength and the presence of foreign objects.

2. Maximum theoretical data rate per IEEE standard. Actual speed may vary.
