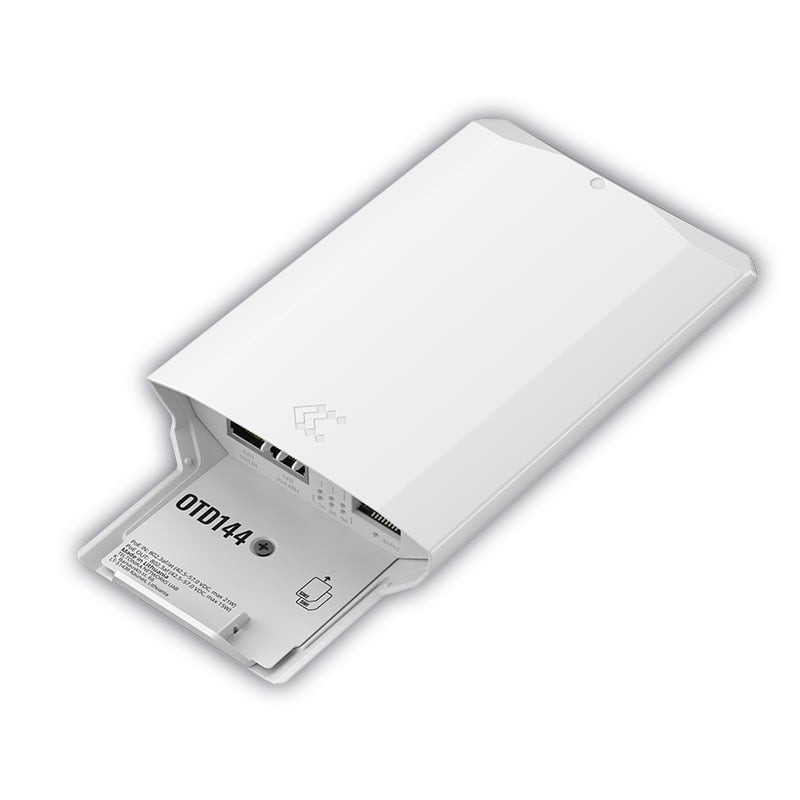

Wireless LAN router Teltonika OTD144
Product reference: 26-TELTOLANOTD144
  • Type: Wireless LAN Router
  • Brand: Teltonika
  • Model: OTD144
  • Mobile connection: 4G LTE (LTE Cat4)
  • Ethernet: 2 × RJ45 10/100 Mbps
  • PoE: PoE In / PoE Out (21W)
  • Dual SIM support
  • Management: SNMP, SSH, RMS
  • CPU: Mediatek MIPS 24KEc 580 MHz
  • Resistance class: IP55
  • Operating temperature: -40 +75 °C
  • Industrial
Wireless LAN router Teltonika OTD144

Wireless LAN router Teltonika OTD144

Product reference: 26-TELTOLANOTD144
  • Type: Wireless LAN Router
  • Brand: Teltonika
  • Model: OTD144
  • Mobile connection: 4G LTE (LTE Cat4)
  • Ethernet: 2 × RJ45 10/100 Mbps
  • PoE: PoE In / PoE Out (21W)
  • Dual SIM support
  • Management: SNMP, SSH, RMS
  • CPU: Mediatek MIPS 24KEc 580 MHz
  • Resistance class: IP55
  • Operating temperature: -40 +75 °C
  • Industrial
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13654 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Mobile Module 4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
  • 3GPP version Release 9
  • SIM Switch 2 SIM cards, auto-switch on weak signal, data/SMS limit, roaming, no network, network denied, connection fail, SIM idle protection
  • Status Parameters IMSI, ICCID, operator details, signal strength (RSSI, SINR, RSRP, RSRQ), connection state, data stats, LAC, TAC, Cell ID, bands, etc.
  • SMS Support for status, config, Email ↔ SMS, scheduled SMS, autoreply, HTTP gateway, SMPP
  • USSD Support Supports sending and reading USSD messages
  • Block/Allow List Operator block/allow list (country/operator-based)
  • Band Management Band lock and used band status display
  • SIM PIN Management Set, change, or disable SIM PIN
  • APN Auto APN
  • Bridge Mode Direct connection between mobile ISP and LAN device
  • Transfer Mobile WAN IP assignment to LAN device
  • Wireless mode 802.11b/g/n (Wi-Fi 4), AP, STA
  • Wi-Fi security WPA2-Enterprise, WPA2-PSK, WPA3, OWE, TKIP, AES, EAP-TLS, 802.11w, MAC-based control
  • SSID/ESSID Options SSID stealth, MAC access control
  • Wi-Fi User Limit Up to 100 simultaneous users
  • Advantages of wireless communication Mesh (802.11s), Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS management (802.11v), client isolation, WMM
  • Wireless MAC Filter Allowlist, Blocklist
  • Wireless QR Code Auto-join by scanning QR
  • TravelMate Forwards hotspot landing page to next connected device
  • LAN 2 x 10/100 Mbps ETH ports (configurable as WAN), IEEE 802.3/3u/3az, auto MDI/MDIX
  • Route selection Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
  • Network protocols TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, ARP, VRRP, PPP(oE), UPNP, SSH, Telnet, SNMP, MQTT, WOL, VXLAN
  • VoIP Passthrough H.323 and SIP-ALG NAT helpers
  • Connection Monitoring Ping/Wget/LCP/ICMP-based reboot link check
  • Firewall Features Port forwarding, traffic rules, TTL customization, custom rules
  • Firewall Status Page View rules, stats, counters
  • Port management View, enable/disable, auto-config, speed control
  • Network Topology Visual network map
  • DHCP Support Static/dynamic IP, relay, leases with MAC wildcards
  • QoS/SQM Traffic priority by source, protocol, service, WMM, 802.11e
  • DDNS > 77 providers supported, manual configuration possible
  • DNS over HTTPS Secure DNS resolution via DoH proxy
  • Network Backup VRRP, Wired failover options
  • Public Internet access point Captive portal, Radius, SMS/SSO auth, themes, walled garden, URL params, group/user mgmt
  • SSHFS Remote file system mount over SSH
  • Traffic management Real-time monitoring, usage history, signal charts
  • Authentication Pre-shared key, X.509 certs, TACACS+, RADIUS (internal/external), IP/login blocking, time-based login block
  • Firewall Config Preconfigured via WebUI, CLI custom firewall, DMZ, NAT, NAT64
  • Attack Prevention DDOS (SYN flood, SSH, HTTP attacks), port scan detection (SYN-FIN, X-mas, NULL, etc.)
  • VLANs Port/tag-based VLAN
  • Mobile Quota Control Data limit, period/start time, warning, phone number tracking
  • WEB Filter Block list allow list for content control
  • Access Control Flexible access to SSH, Web, CLI, Telnet
  • Certificate Manager Create CA/server/client certs, Let's Encrypt, SCEP support
  • 802.1x Support Port-based network access control
  • OpenVPN Multiple clients server support, 27 encryption methods
  • OpenVPN encryption All standard AES, DES, RC2, BF, CAST5, GCM, CFB, OFB, etc.
  • IPsec XFRM, IKEv1/v2, 14 encryption modes incl. AES-GCM, DES, 3DES
  • GRE GRE tunnel GRE over IPsec support
  • PPTP/L2TP Client/server, L2TPv3, L2TP over IPsec
  • Stunnel Add TLS to any app without code change
  • DMVPN Supports Phases 2/3, dual hub
  • SSTP Client instance support
  • ZeroTier Customer support
  • WireGuard Client and server support
  • Tinc Tunneling with encryption, auth, compression
  • OPC UA Client and Server, TCP support
  • Modbus MQTT Gateway MQTT <-> Modbus (read/write data via broker)
  • MODBUS Modes Client, Server
  • MODBUS TCP Custom register read/write to local files, extend functionality
  • MODBUS Formats INT, UINT (8/16/32-bit), HEX, ASCII, float, byte order variants
  • Data to Server Protocols HTTP(S), MQTT, Azure MQTT
  • Data to Server Capabilities Extract from multiple sources/protocols, send to one server, support LUA scripting
  • DNP3 Modes Station, Outstation
  • DNP3 Connection TCP
  • DLMS/COSEM Mode Client
  • DLMS Connection TCP
  • API Support Teltonika Web API (beta), configurable endpoints
  • Web UI HTTP(S), FW updates, status, event logs, CLI, troubleshooting
  • PHOTO Firmware update from server, auto notifications
  • SSH Support SSH v1/v2
  • Email alerts Status alerts for services
  • SMS Control Status, configuration
  • Call Functions Reboot, data toggle, output control, call timer
  • TR-069 Compatibility OpenACS, GenieACS, AVSystem, etc.
  • MQTT MQTT broker publisher
  • SNMP Support v1/v2/v3, trap, brute force protection
  • JSON-RPC API over HTTP(S)
  • RMS Teltonika Remote Management System
  • ThingWorx Monitoring WAN, IP, operator name/type/signal
  • Cumulosity Monitoring Model, firmware, SIM info, cell ID, reboot/firmware action
  • Azure IoT Hub Parameter sync, direct method API, zero-touch provisioning
  • AWS IoT Core Jobs-based API control, cloud interaction
  • Processor Mediatek 580 MHz, MIPS 24KEc
  • RAM 128MB
  • FLASH Storage 16MB
  • Firmware Update Methods Web UI, FOTA, RMS
  • Keep Settings FW update without losing configuration
  • Factory reset Restore to manufacturer defaults
  • Firmware Customization RutOS (OpenWRT), branding, UI/logo customization
  • Supported languages Bash, Lua, C/C++, Python, Java (via package)
  • SDK SDK build environment provided
  • Package Manager Install additional software
  • PoE In 1 x PoE In, 802.3af/at
  • PoE output 1 x PoE Out, 802.3af Alternative B, Max 15 W
  • Power connector RJ45 Socket
  • Input voltage range 42.5-57.0 VDC, surge and polarity protection
  • Energy consumption Idle < 2.5 W; Max < 6W; PoE Max < 21W
  • Ethernet Interfaces 2 x RJ45, 10/100 Mbps
  • Status LED indicators 3 x Mobile type, 3 x signal strength, 4 x ETH status
  • SIM Slots 2 x Mini SIM (2FF), 1.8/3 V
  • Antennas 2 x Internal
  • Antenna Specs 2 x 698-960/1710-2690 MHz, 50 Ω, VSWR < 3, gain < 4.5 dBi
  • Reset Options Reboot, user default, full factory reset
  • Housing material Plastic (PC+ASA)
  • Dimensions 110 x 49.30 x 235 mm
  • Weight 315 g
  • Mounting options Bracket for wall or pole
  • Operating temperature -40°C to 75°C
  • Working humidity 10% to 90% non-condensing
  • IP class IP55
  • Regulation CE, UKCA, CB, RCM, WEEE, EAC, UCRF
