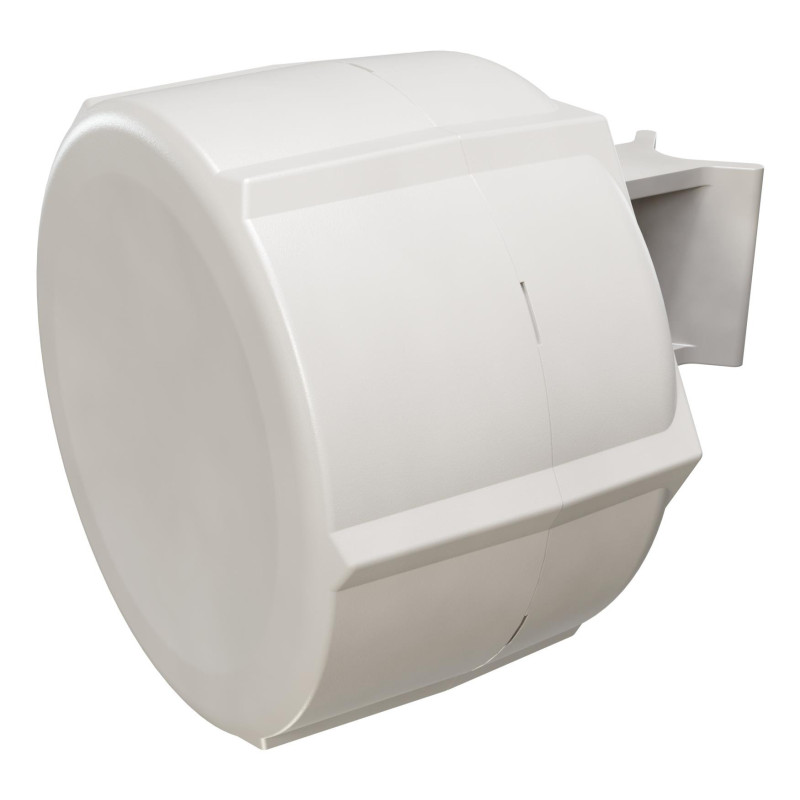

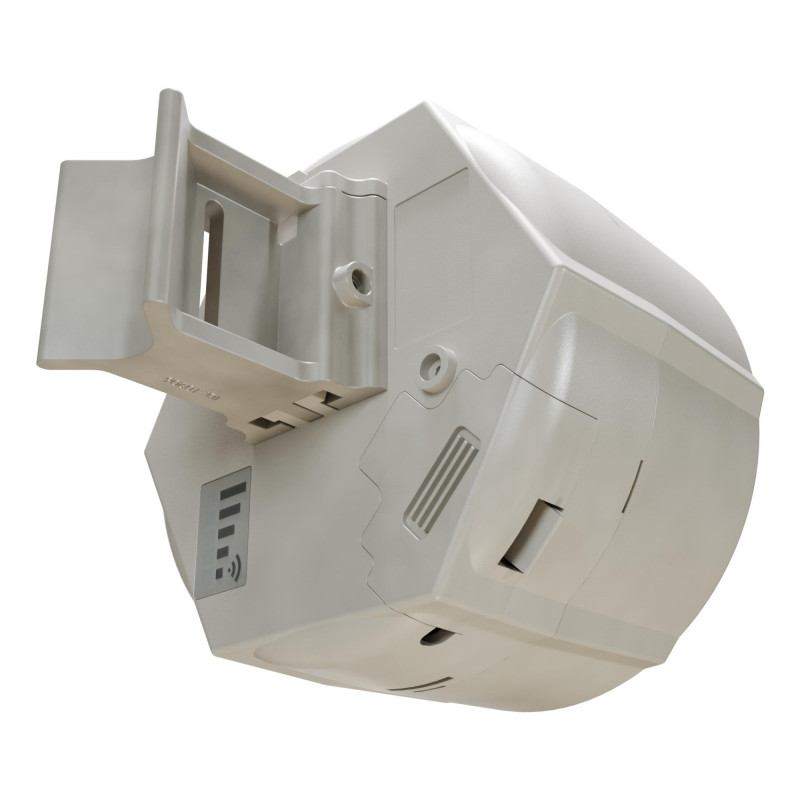

The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide - but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.
Mount it outside, point it at the nearest tower, and always stay connected!
SXT has always been about reliable connectivity with minimal visual impact:
- Weatherproof/Snow-resistant
- Unobtrusive, durable and discreet
- Designed to attract less unwanted attention
The SXT LTE7 kit keeps everything that made the platform popular - and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.
We've included two Micro-SIM slots - for backup. It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation,allowing SXT to use multiple LTE bands simultaneously. That's a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. Andhigher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internetspeed doubling in rural areas after switching to carrier aggregation, so there is no need to wait forcable network expansions.
The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!
Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.
| 4G LTE kategorija | 7 |
| 4G standartai | LTE-TDD & LTE-FDD |
| Atitikties sertifikatai | CE/EAC/RoHS |
| Bruto svoris | 0.925 kg |
| Duomenų perdavimo sparta (LTE) (atsisiuntimas) | 300 Mbit/ai |
| Duomenų perdavimo sparta (LTE) (nusiuntimas) | 100 Mbit/ai |
| Duomenų tinklas | 3G/4G |
| Eterneto LAN duomenų perdavimo norma | 10/100 Mbit/ai |
| Eterneto LAN sąsajos tipas | Greitas eternetas |
| Ethernet LAN (RJ-45) portų kiekis | 2 |
| Ethernet LAN jungtis | Taip |
| Galios suvartojimas (maks.) | 24 W |
| Integruotas procesorius | Taip |
| Kintamosios srovės adapteris | Taip |
| Maitinimo per Eternetą (PoE) prievadų skaičius | 2 |
| Maitinimo šaltinio tipas | PoE |
| Model | SXT LTE7 kit |
| Model name | SXT LTE7 kit |
| Montavimas | Montuojama ant stulpo |
| Neto svoris | 0.5 kg |
| Palaikomi 4G dažniai | 1500/1800/2100/2300/2500/2600/700/800/850/900 MHz |
| Procesoriaus dažnis | 0.65 GHz |
| Procesoriaus gamintojas | "Qualcomm" |
| Procesoriaus modelis | QCA9531 |
| Produkto spalva | Balta |
| RAM talpa | 0.064 GB |
| Shipping Box Depth | 68.5 cm |
| Shipping Box Height | 50.5 cm |
| Shipping Box Weight | 18.5 kg |
| Shipping Box Width | 35 cm |
| SIM kortelių skaičius | 2 |
| SIM kortelės tipas | "MicroSIM" |
| Summary | Mikrotik SXT LTE7 kit. Device type: Cellular network modem/router, Product colour: White, Mounting: Pole mounting. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Data network: 3G, 4G, 4G standard: LTE-TDD & LTE-FDD, 4G bands supported: 2100,1800,850,2600,900,700,800,1500,2300,2500 MHz. Compliance certificates: CE, EAC, RoHS. Processor manufacturer: Qualcomm, Processor model: QCA9531, Processor frequency: 0.65 GHz |
| Tarptautinės apsaugos (IP) kodas | IP54 |
| Tinka naudojimui išorėje | Taip |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.165 |
| Unit Box Width | 0.24 |
| Unit Brutto Volume | 0.006054 cubm |
| Vendor Homepage | https://mikrotik.com/product/sxt_lte7_kit |
| Vidinės saugyklos talpa | 0.016 GB |
| Vidutinis laikas tarp trikčių (MTBF) | 200000 h |
| Vieneto aukštis | 13.5 cm |
| Vieneto gylis | 16.5 cm |
| Vieneto plotis | 24 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 20 |
| Įtaiso tipas | Korinio tinklo modemas / maršrutizatorius |
| Įėjimo įtampa | 12 - 57 V |
| "Wi-Fi" | Ne |
