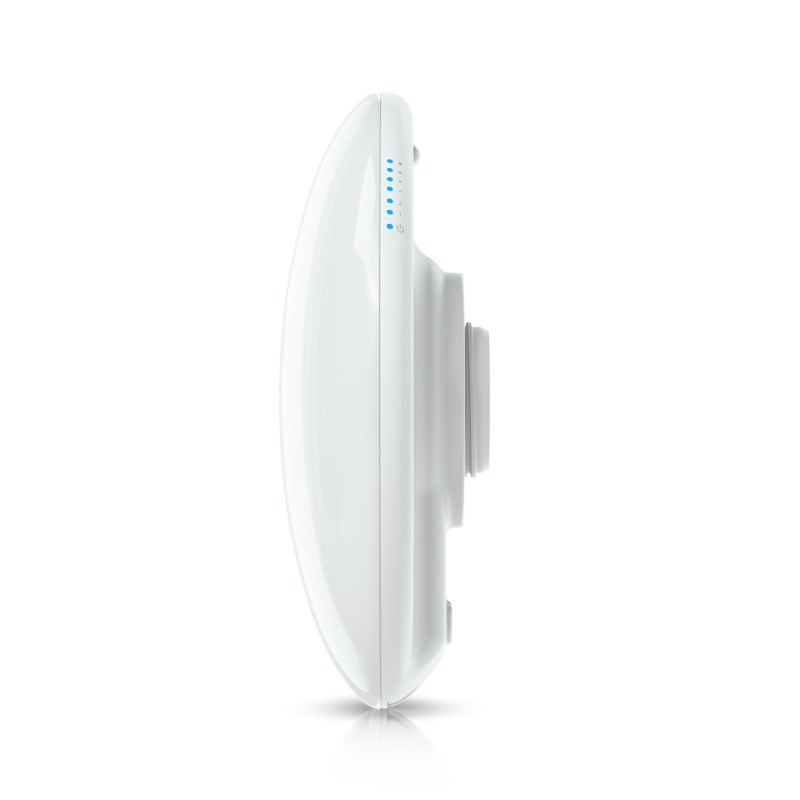

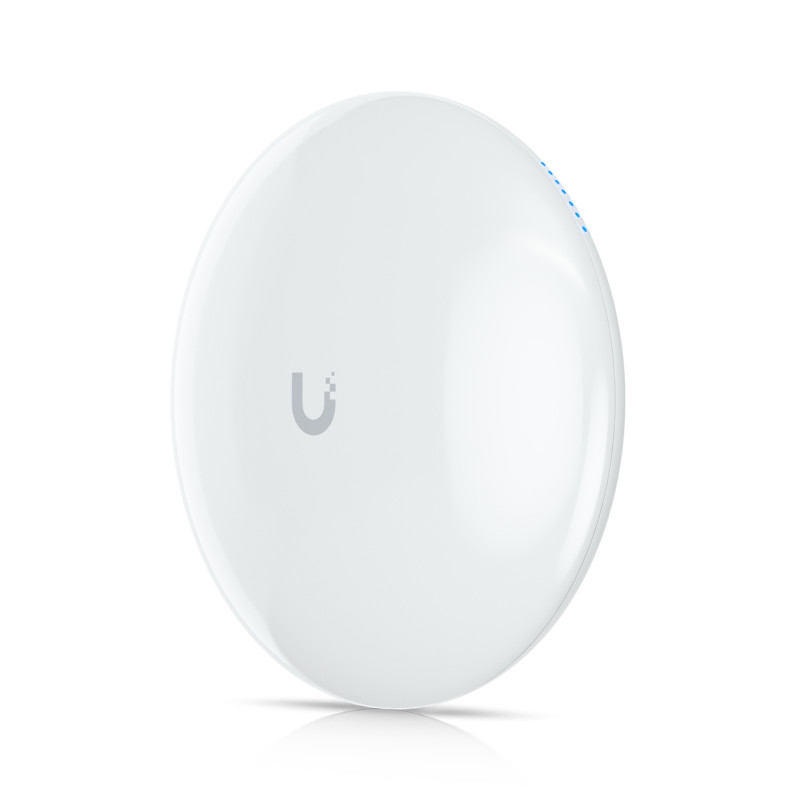

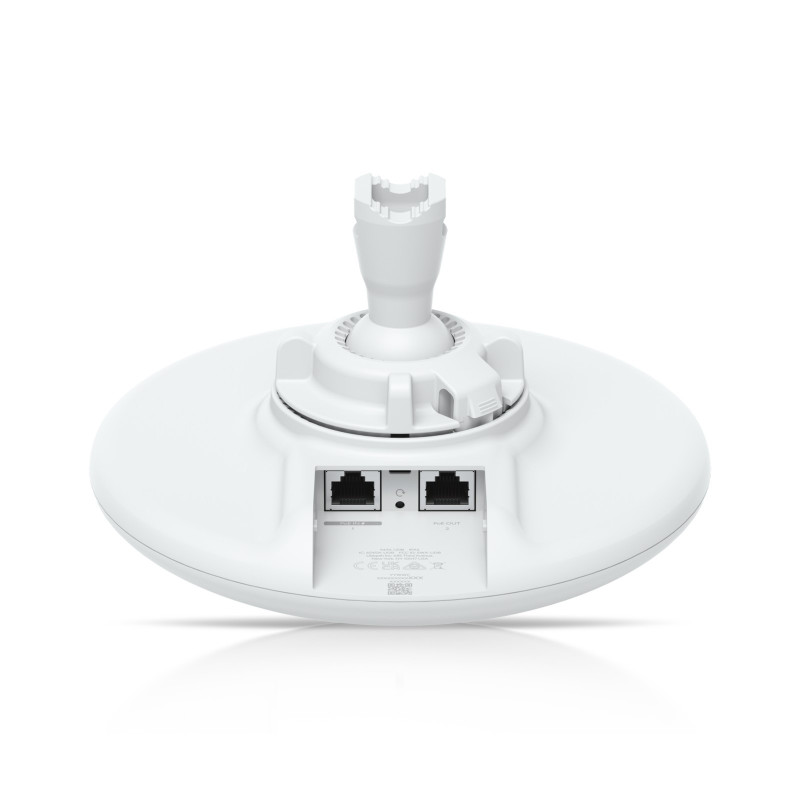

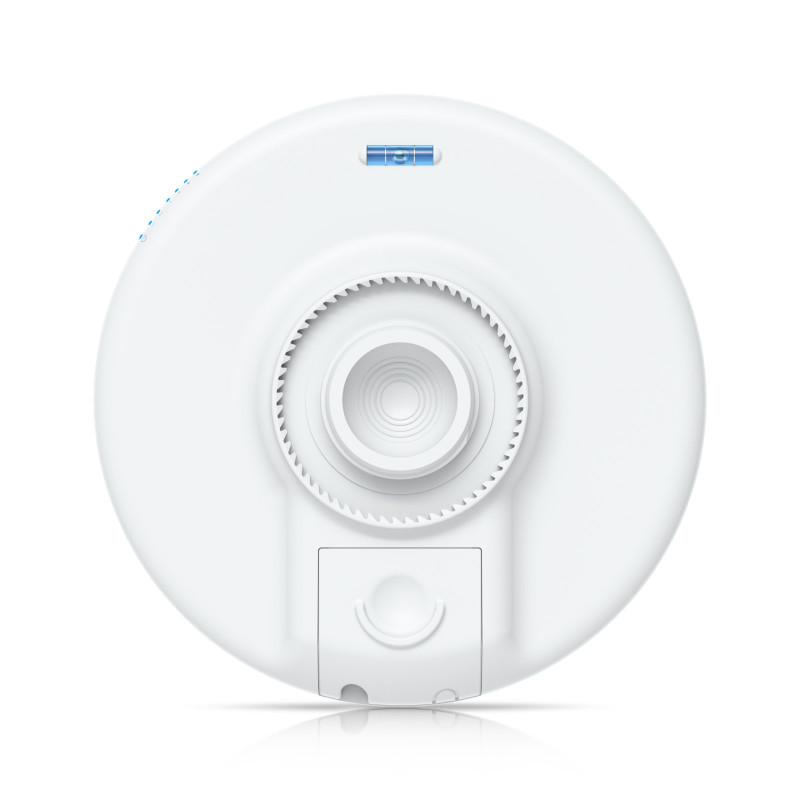

Ubiquiti UDB-Pro - UniFi Device Bridge Pro
Product reference:
3-0810084698051
Ubiquiti UDB-Pro - UniFi Device Bridge Pro
Ubiquiti UDB-Pro - UniFi Device Bridge Pro
Product reference:
3-0810084698051
Ubiquiti UDB-Pro - UniFi Device Bridge Pro
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*
- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
| Summary: | Ubiquiti UDB-Pro. Maximum data transfer rate: 866.7 Mbit/s. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 19 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired Wireless |
| Vendor Homepage: | https://eu.store.ui.com/eu/en/products/udb-pro |
| Category Code: | BRE |
| CnCode: | 85176200 |
| Unit Box Height: | 0.125 |
| Unit Box Length: | 0.23 |
| Unit Box Width: | 0.23 |
| Maximum data transfer rate: | 866.7Mbit/s |
| Antenna design: | Internal |
| Antenna gain level (max): | 19dBi |
| Antenna type: | 2x2 |
| Frequency band: | 5GHz |
| Modulation: | 16-QAM/256-QAM/64-QAM/BPSK/QPSK |
| Outdoor range: | 5+ km |
| Signal strength: | 25dBm |
| Top Wi-Fi standards: | Wi-Fi 5 (802.11ac) |
| Wi-Fi: | Yes |
| Wi-Fi band: | Single-band (5 GHz) |
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 10/100/1000Mbit/s |
| Ethernet LAN interface type: | Gigabit Ethernet |
| Networking standards: | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n |
| Connectivity technology: | Wired Wireless |
| Ethernet LAN (RJ-45) port: | 2 |
| Power over Ethernet plus (PoE+) port quantity: | 1 |
| Security algorithms: | WPA2-AES |
| International Protection (IP) code: | IPX6 |
| LED indicators: | LAN/Power/Signal strength |
| Material: | Polycarbonate (PC)/Stainless steel |
| Mounting type: | Pole |
| Power LED: | Yes |
| Product colour: | White |
| Product type: | Network bridge |
| Reset button: | Yes |
| DC input voltage: | 42.5 - 57V |
| Power consumption (max): | 9W |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) voltage: | 48V |
| Power source type: | DC,PoE |
| Operating relative humidity (HH): | 5 - 95% |
| Operating temperature (TT): | -40 - 60°C |
| Compliance certificates: | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Depth: | 64.3mm |
| Height: | 189.5mm |
| Weight: | 515g |
| Width: | 189.5mm |
| Cables included: | AC |
| Mounting bracket(s) included: | Yes |
| Power supply included: | Yes |
| Quantity per pack: | 1pc(s) |
| Model: | UDB-PRO |
| Units per Shipping Box: | 8 |
| Unit Calculated Volume: | 0.008008m³ |
| Unit Calculated Weight: | 1.25kg |
