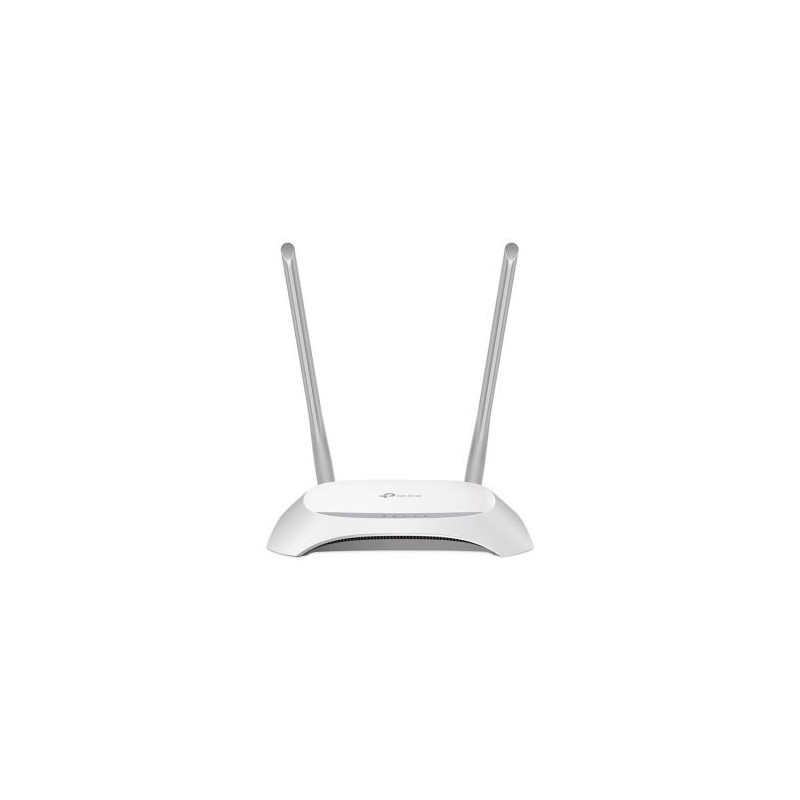

TP-Link Wi-Fi Router TL-WR840N, 300Mbps, LAN / WAN, 802.11n, White EU

Features:

• 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work


• Easy wireless security encryption at a push of WPS button


• IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC


• WDS wireless bridge provides seamless bridging to expand your wireless network

Technical specifications:

Wireless

• Standards: Wi-Fi 4




  • IEEE 802.11n/b/g 2.4 GHz






• WiFi Speeds: N300




  • 2.4 GHz: 300 Mbps (802.11n)






• WiFi Range: Suitable for 2 bedroom houses




  • 2× Fixed Antennas






• WiFi Capacity: Legacy




  • Working Modes: Router Mode, Access Point Mode, Range Extender Mode, WISP Mode





Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway


• Guest Network: 1× 2.4 GHz Guest Network


• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Hardware

• Processor: Single-Core CPU


• Ethernet Ports:



  • 1× 10/100 Mbps WAN Port


  • 4× 10/100 Mbps LAN Ports






• Buttons: Reset Button


• Power: 9 V ⎓ 0.6 A

Software

• Protocols: IPv4, IPv6


• Parental Controls: URL Filtering, Time Controls


• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP


• Quality of Service: QoS by Device


• NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP


• IPTV: IGMP Proxy, IGMP Snooping


• DHCP: Address Reservation, DHCP Client List, Server


• DDNS: NO-IP, Comex, DynDNS


• Management: Tether App, Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser


• Certifications: FCC, CE, RoHS

Environment:

• Operating Temperature: 0 ~40 (32 ~104 )


• Storage Temperature: -40 ~70 (-40 ~158 )


• Operating Humidity: 10%~90% non-condensing


• Storage Humidity: 5%~90% non-condensing

Test Data

• WiFi Transmission Power:




  • CE: <20dBm (2.4GHz)


  • FCC: <30dBm






• WiFi Reception Sensitivity: Various sensitivity levels for different data rates

Physical

• Dimensions (W×D×H): 7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm)

Items included:

• Wi-Fi Router TL-WR840N


• Power Adapter


• RJ45 Ethernet Cable


• Quick Installation Guide
