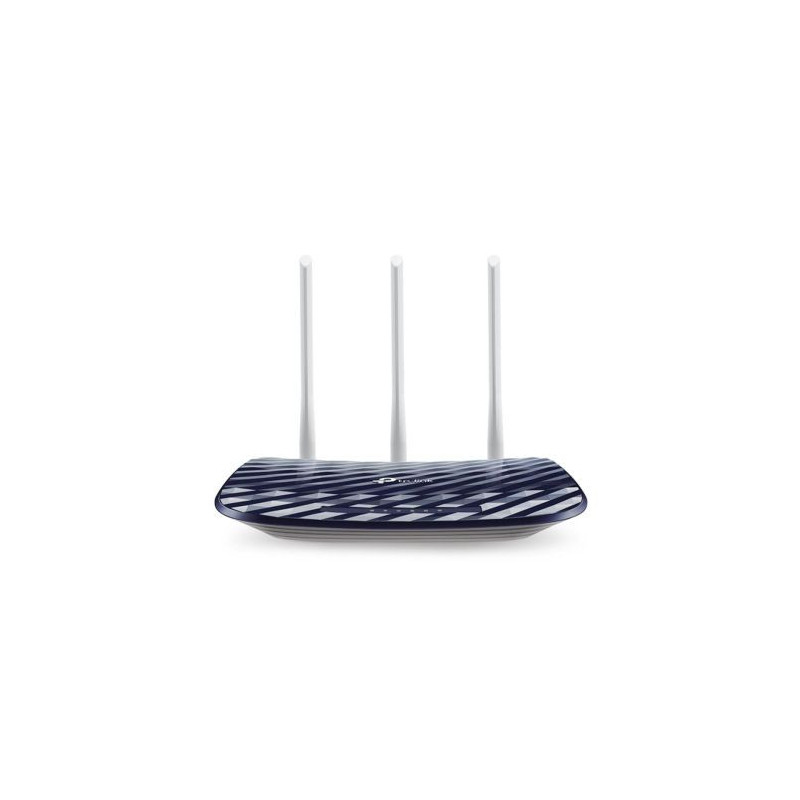

TP-Link Wi-Fi Router Archer C20 AC750, 750Mbps, LAN / WAN, 802.11ac, Black EU

Features:

• Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth


• Three external antennas provide stable omnidirectional signal and superior wireless coverage


• Supports three modes：Router，Range Extender and Access Point Modes


• IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming


• Parental Controls manage when and how connected devices can access the internet


• Guest Network provides separate access for guests while securing the host network

Technical specifications:

Wireless

• Standards: Wi-Fi 5




  • IEEE 802.11ac/n/a 5 GHz


  • IEEE 802.11n/b/g 2.4 GHz






• WiFi Speeds: AC750




  • 5 GHz: 433 Mbps (802.11ac)


  • 2.4 GHz: 300 Mbps (802.11n)






• WiFi Range: Suitable for 2 bedroom houses




  • 3× Fixed Antennas






• WiFi Capacity: Medium




  • Dual-Band






• Working Modes: Router Mode, Access Point Mode, Range Extender Mode

Security

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway


• Guest Network: 1× 5 GHz, 1× 2.4 GHz


• WiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Hardware

• Processor: Single-Core CPU


• Ethernet Ports:




  • 1× 10/100 Mbps WAN Port


  • 4× 10/100 Mbps LAN Ports






• Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button


• Power: 9 V ⎓ 0.6 A

Software

• Protocols: IPv4, IPv6


• Parental Controls: URL Filtering, Time Controls


• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP


• Quality of Service: QoS by Device


• NAT Forwarding: Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP


• IPTV: IGMP Proxy, IGMP Snooping


• DHCP: Address Reservation, DHCP Client List, Server


• DDNS: NO-IP, Comex, DynDNS


• Management: Tether App, Webpage

Other

• System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser


• Certifications: FCC, CE, RoHS


• Environment:




  • Operating Temperature: 0 ~40 (32 ~104 )


  • Storage Temperature: -40 ~70 (-40 ~158 )


  • Operating Humidity: 10%~90% non-condensing


  • Storage Humidity: 5%~90% non-condensing





Test Data

• WiFi Transmission Power:




  • CE: <20dBm (2.4GHz), <23dBm (5GHz)






• WiFi Reception Sensitivity:




  • 5GHz: Various sensitivity levels


  • 2.4GHz: Various sensitivity levels





Physical

• Dimensions (W×D×H): 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)

Items included:

• Wi-Fi Router Archer C20


• Power Adapter


• RJ45 Ethernet Cable


• Quick Installation Guide
