TP-LINK TPLINK PoE Injector Omada (POE380S)

POE380S
Omada PoE++ Injector
Funktie
2× porty RJ45 s speed 10 Gbps/5 Gbps/2,5 Gbps/1 Gbps/100 Mbps/10 Mbps fast speed

Vyhovuje standartadom IEEE802.3af/at/bt, delivers up to 90 W

It reduces the cost of the infrastructure with the current transmission of power through the ethernet cable

Automatically determines and delivers precise performance to meet the needs of the device

Nástenná a stolová construction suits most installation scenarios

Plug Play installation, no configuration required

Integrated power supply

Durable metal case

Specifications

Standardy a protokoly
*IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Sieťové mediácie
*10BASE-T: UTP category 3, 4, 5 cable (maximálne 100 m), EIA/TIA-568 100? STP (maximálne 100 m)
*100BASE-TX: cable UTP category 5, 5e (maximálne 100 m), EIA/TIA-568 100? STP (maximálne 100 m)
*1000BASE-T: cable UTP category 5, 5e, 6 (maximálne 100 m)

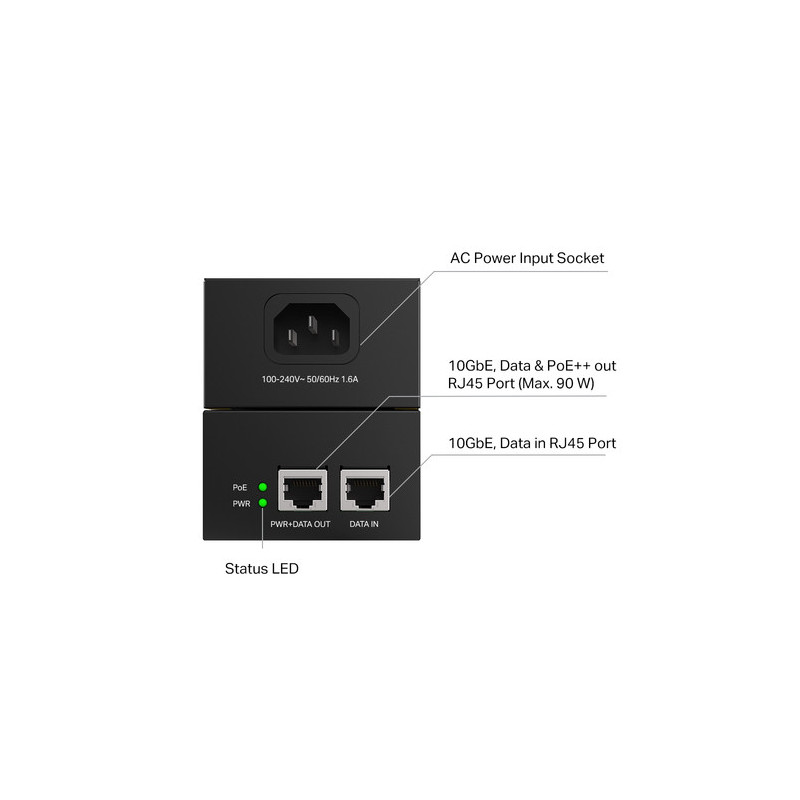

Porty
*1× 10 Gbps/5 Gbps/2,5 Gbps/1 Gbps/100 Mbps/10 Mbps port RJ45 na vstup dát
*1× 10 Gbps/5 Gbps/2,5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 port power supply and output (max. 90 W)
*1× AC outlet
Spotreba energie
*Vstup: 100-240 V, 50/60 Hz, 1.6 A
*Output: Automatic determination of the necessary power requirements (max. 90 W)
Basic functions
*Algorithms of automatic sensing enable power supply devices 802.3af/at/bt* PD
*Automatic determination of the necessary requirements for power supply
*Installation on a wall and a stool
*Plug-and-Play
LED
*Power supply / PoE
Rozmery (W x H x H)
*155 x 70 x 42 mm
