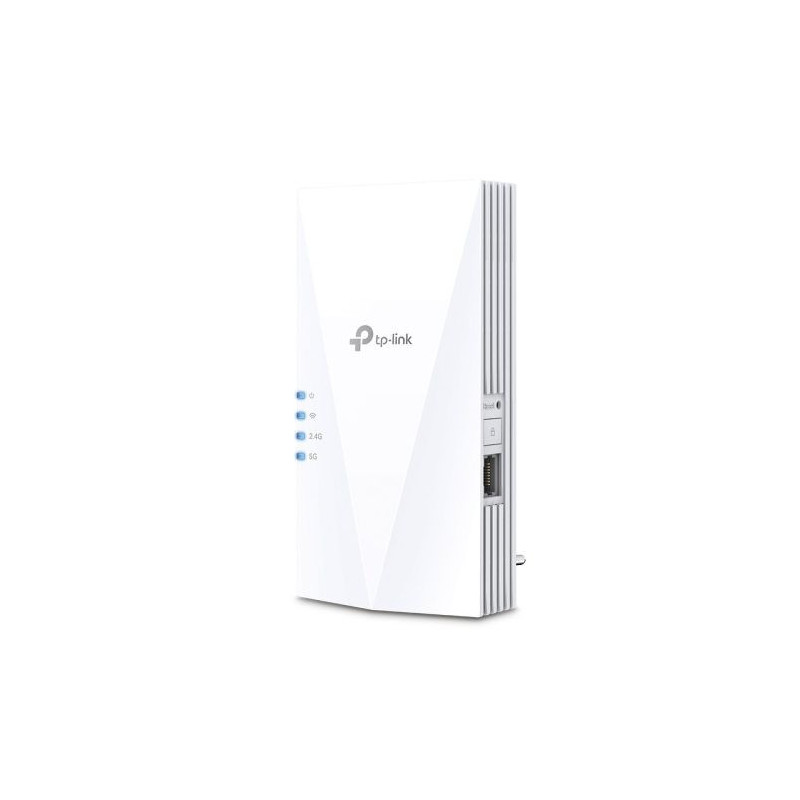

TP-Link Range Extender RE500X AC1500 Wireless Dual Band, Mesh System, 1500Mbps, 802.11ac, Wi-Fi 6, White EU

Features:

• Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1201 Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.


• Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.


• EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.


• Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles.


• AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.


• Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.


• Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.

Technical specifications:

• Hardware Features


• Ports: 1 Gigabit Ethernet Port


• Button: WPS Button, Reset Button


• Input Power: 100-240V~50/60Hz


• Power Consumption: 10W


• Dimensions (W x D x H): 3.1×1.4×5.9 in. (78×36×149 mm)


• Antenna: 2 Internal Antennas

Wireless Features

• Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz


• Frequency: 2.4GHz and 5GHz


• Signal Rate:




  • 300 Mbps at 2.4GHz


  • 1200 Mbps at 5GHz






• Working Modes: Range Extender/Access Point


• Reception Sensitivity:




  • 5GHz:




    • 11a 6Mbps: -95dBm


    • 11ax HE20 MCS11: -65dBm


    • 11ax HE40 MCS11: -62dBm


    • 11ax HE80 MCS11: -60dBm


    • 11ax HE20 MCS0: -94dBm


    • 11ax HE40 MCS0: -92dBm


    • 1ax HE80 MCS0: -89dBm






  • 2.4GHz:




    • 11b 1Mbps: -99dBm


    • 11n HT20 MCS0: -95dBm


    • 11n HT20 MCS7: -77dBm


    • 11n HT40 MCS0: -92dBm


    • 11n HT40 MCS7: -73dBm










• Wireless Functions: Enable/Disable Wireless Radio, DFS (latest firmware and hardware version required), Access Control, LED Control, Power Schedule, Wi-Fi Coverage


• Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK encryptions, WPA3 encryptions


• Transmission Power: CE (EU): 2.4 GHz ≤15dBm, 5 GHz ≤23dBm


• Mesh Technology: EasyMesh-Compatible

Others

• Certification: FCC, RoHS


• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment:

• Operating Temperature: 0 ~40 (32 ~104 )


• Storage Temperature: -40 ~70 (-40 ~158 )


• Operating Humidity: 10%~90% non-condensing


• Storage Humidity: 5%~90% non-condensing

Items included:

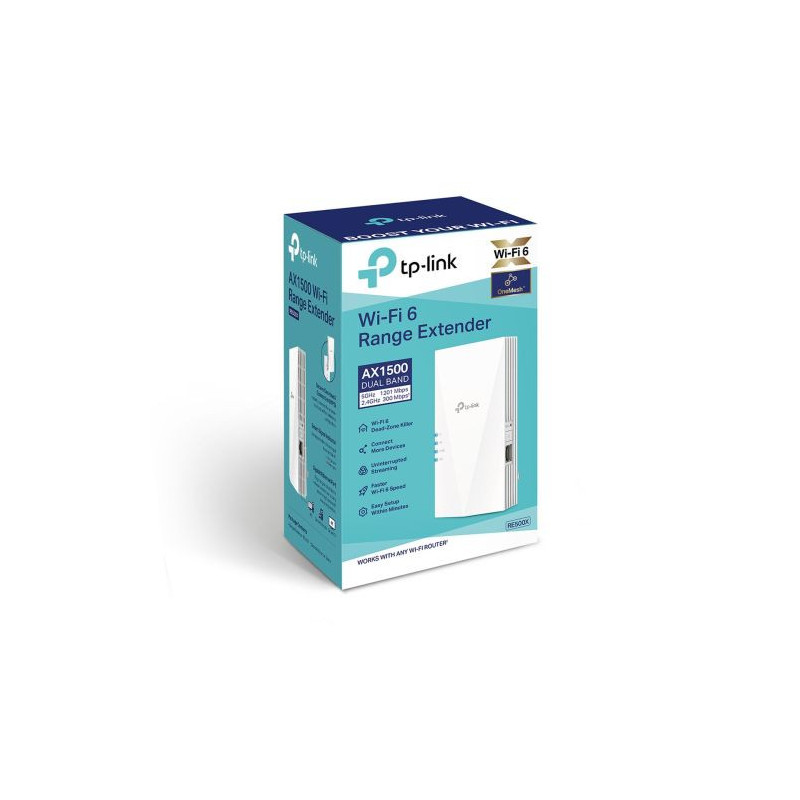

• Wi-Fi Range Extender RE500X, Quick Installation Guide
