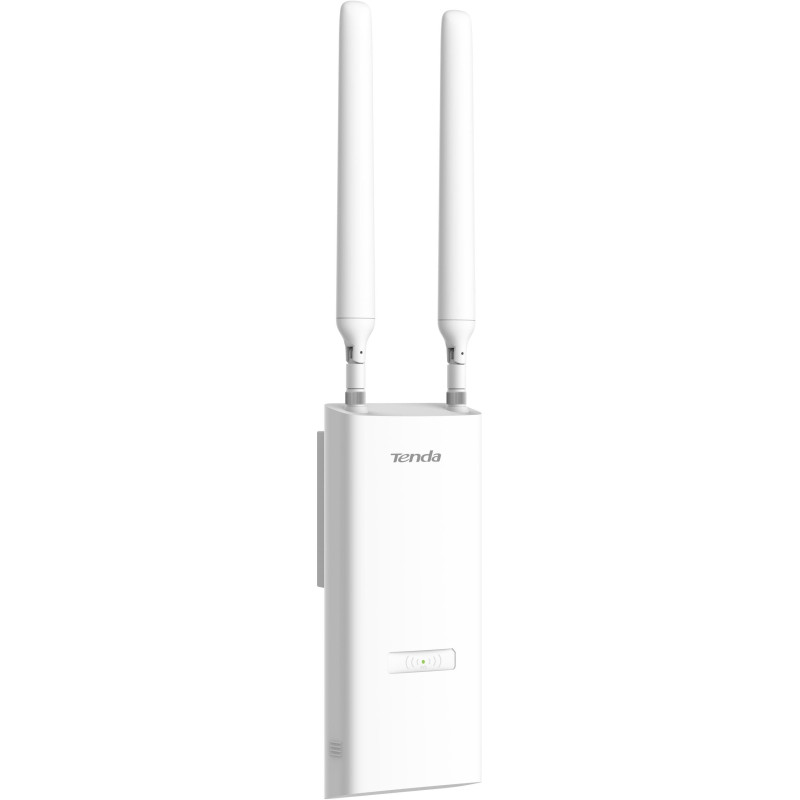

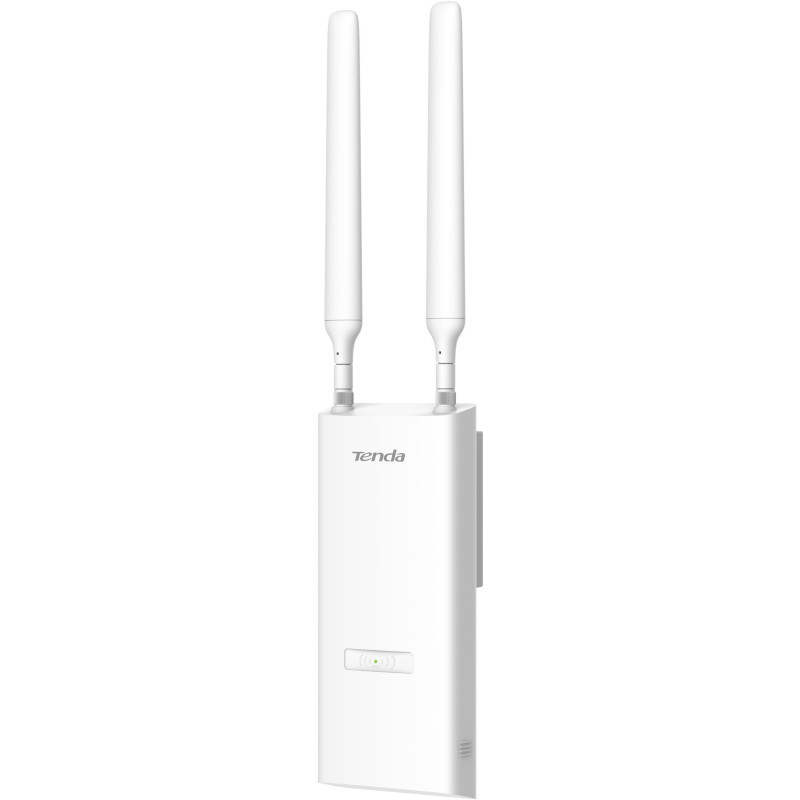

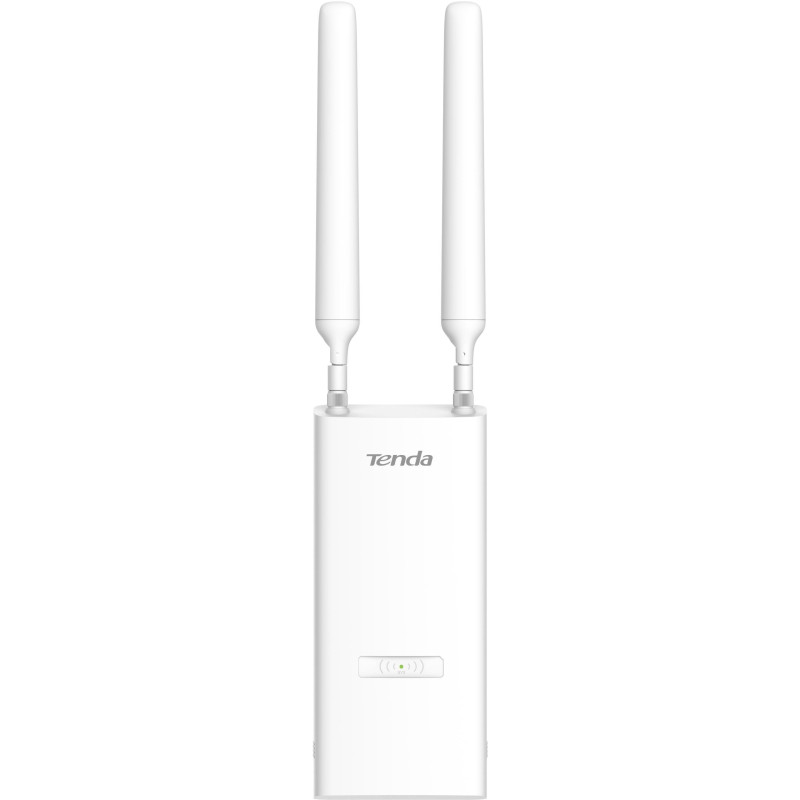

Tenda OAP1200 Outdoor Wi-Fi AP AC1200, Gigabit LAN, IP65, VLAN, 802.11k / v / r, aktívne aj pasívne PoE

Tenda OAP1200 is a wireless Wi-Fi access point (Access Point) for outdoor and indoor use, supports 802.11ac(wave2)/a/b/g/n standards in the 2.4 to 5 GHz band with speeds up to 1167 Mb/s technology MU-MIMO, OFDMA, Beamforming. Fast roaming 802.11 k/v/r. It contains 1x Gigabit LAN port, which supports active PoE 802.3af power supply, but also passive power supply (24V 0,5A). Support 12x SSID (8x 2.4 GHz + 4x 5GHz), VLAN tagging, AP Isolation and other technologies, connecting up to 256 clients.
Wireless performance
Tenda OAP1200 is suitable for smaller and medium-sized companies, as well as for households. Thanks to adjustable transmission power and support for Mu-MIMO, OFDMA, Beamforming, the signal can be properly regulated and directed to maximize coverage. Thanks to the use of the 80 MHz band (supports 20/40/80 MHz), it reaches a WiFi speed of up to 1167 Mb/s (2,4GHz: 300 Mb/s, 5 GHz: 867 Mb/s).
Tenda OAP1200 contains "Quick Setup" for quick and simple setup in a few steps. Thanks to the guide in česk, slovensk and poľskom jazyku vám installation and configuration of your new Wi-Fi device zaberie len pár minut.
Fast Roaming 802.11 k/v/r - quick transition between AP without výpadkov
Tenda OAP1200 also contains the most advanced functions for switching between individual APs without failures and connection interruption - protocol 802.11 k/v/r.
Security and other functions
Tenda OAP1200 supports standard security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, Mixed WPA/WPA2-PSK, encrypted AES, TKIP and TKIPAES, option to order broadcast of your wireless network name (SSID), filtering MAC addresses, VLAN for individual SSIDs, up to 12x different SSIDs (8x for 2.4 GHz and 4x for 5 GHz) with different security, setting output power and other super-standard network functions. The device is equipped with two antennas with a signal of 4 dBi. V jeden moment can be connected to a total of 256 clients.
Main parameters
WiFi 802/11ac(wave2)/a/b/g/n 1167Mb/s Dual Band, 2.4 GHz (300 Mb/s) a 5 GHz (867 Mb/s), technology MU-MIMO
Active PoE: 802.3af, power supply max 11.5 W
Power supply: 24V, 0.5A
Maximalný pojádů: 2.4 GHz output power: 23 +/- 1.5 dBm, 5 GHz output power: 23 +/- 1.5 dBm, adjustable
Band: 20 MHz / 40 MHz / 80 MHz
Max. number of clients: 256
Prevádzkové regimes: AP, Client + AP
12x different SSIDs (8x pre 2.4 GHz and 4x pre 5 GHz) with different security
Citlivosť: 802.11b -93 dBm, 2.4 GHz 802.11n (MCS7) -73dBm, 5 GHz 802.11a -93 dBm, 5 GHz 802.11n (MCS7) -74 dBm
Porty: 1x Gigabit LAN 10/100/1000 Mb/s
SSID isolation, support isolation of clients
SSID-To-VLAN Tagging
WiFi activation/deactivation, hidden SSID (Hide SSID)
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK, WPA2-PSK_
Centralizování manažment
RSSI Threshold, Weak signal terminal elimination, Prioritize 5 GHz
Activation/deactivation LED diode Power
Placement on a strop, wall, column etc.
External antennas 2x, each 4 dBi, connector RP-SMA
LAN setting: Static IP, Dynamic IP
Manažment: Restart, Obnovenie do várenského settings, Systemové logy, Aktualizácia firmware, Setting time and date, Backup/restore configuration
Temperature: operating: -30°C ~ 50°C
Temperature: operating: 10%~90% non-condensing
Defaultná IP adresa: 192.168.0.254, prihlasovacie meno: admin, hesolo: admin
Certifikacia:CE/Rohs
Tlakidlá: 1x Reset
LED diódy: 1x LED SYS
Ochrana proti prepätiu: 6,000 V
Usage: Indoor, outdoor, covered IP65
Dimensions: 195 x 83 x 42 mm
Package contents
1x Tenda OAP1200
1x holder for mounting on the wall
1x instruction manual (CZ, SK, PL)
1x sada skrutiek a hmoždiniek
