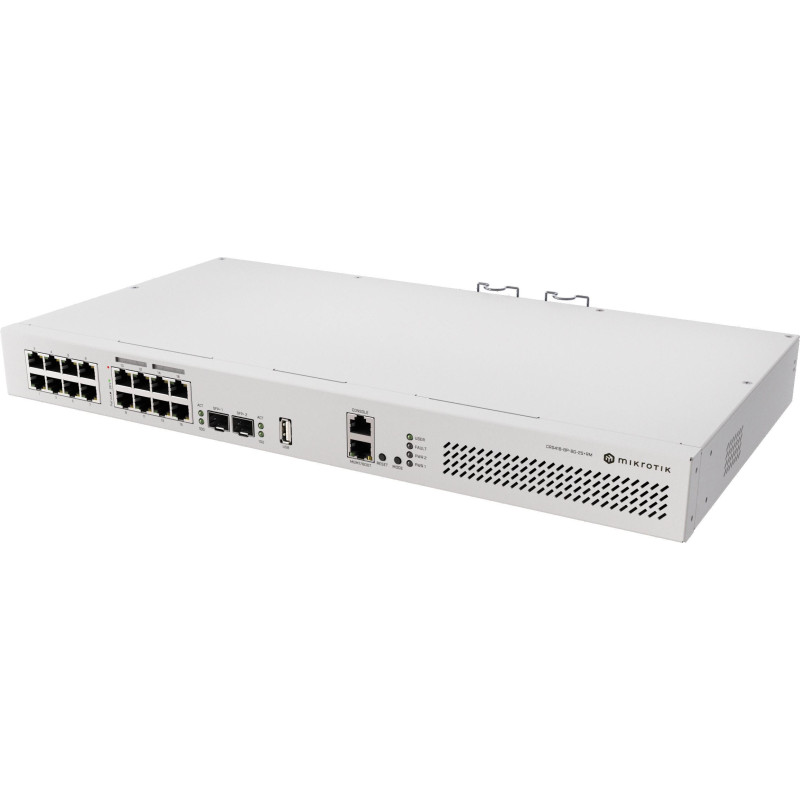

Powerful rackmount switch with 17 gigabit ports, 8x PoE-out, two SFP+ ports with support for RouterOS v7
Youtube video: https://www.youtube.com/watch?v=NSiljceTi0o_
Features
*Performance enough to store most small/medium-sized office routers - 2.2 GHz four-core ARM CPU, L3 hardware offloading, RouterOS v7
*Posibility of use as an internet barrier, firewall and CAPsMAN controller
*8x PoE-out ports (802.3af/at and 24V pasívny PoE-out) with power up to 150 W total
*17x gigabit ethernet ports - combination of PoE and standard ports
*2x 10G SFP+ slots not connected to media servers, fast ISP network, core switch or storage

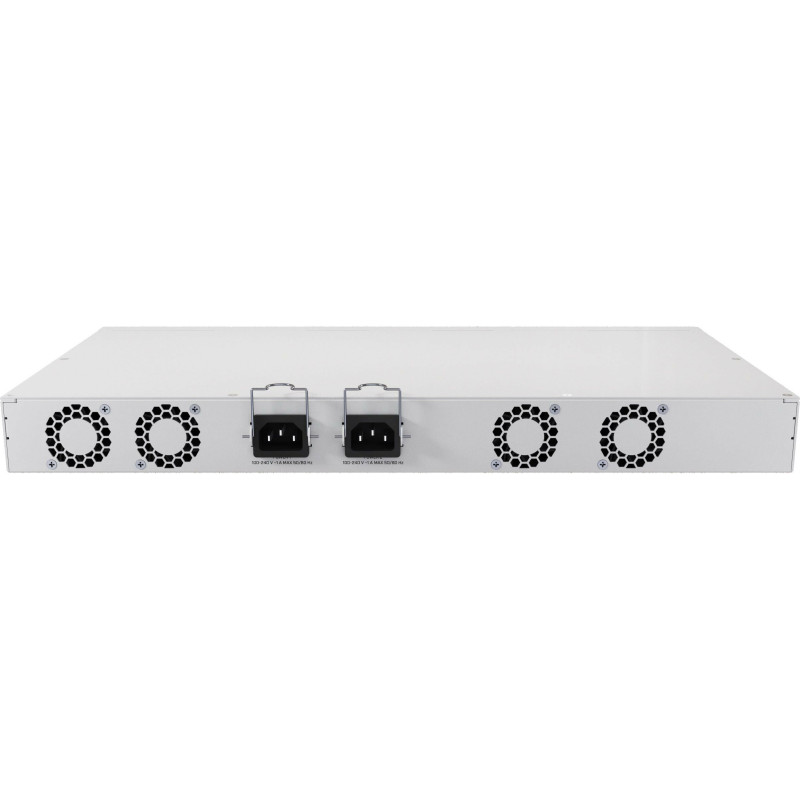

*1U rackmount provision with redundant power supplies
*USB 3 not extended storage or configuration tools
*RouterOS v7 - advanced functions of VLAN, ACL, SNMP, monitoring a traffic shaping without license fees
Specifications
* Architecture: ARM 64bit
* CPU: IPQ-8072, 4 cores, 2208 MHz
* Switch chip: 98DX226S
* RouterOS license: 5
* Operating system: RouterOS v7
* RAM: 1 GB
* Storage: 128 MB, NAND
* IPsec hardware acceleration: áno
Power supply
* Pochet AC vstupov: 2
* Разхансь вспутные процессия AC: 100-240 V
* Number of PSU slots: 2
* Frequency: 50-60 Hz
* Maximum energy consumption: 215 W
* No-load consumption: 28 W
* Cooling: 4 fans
PoE-out
* Ports: Ether9-Ether16
* Standard: 802.3af/at
* Max. output na port (18-30 V): 1.1 A
* Max. output na port (30-57 V): 0.56 A
* Total output current: 5.4 A
* Total output power: 150 W
Ethernet
* 10/100/1000 Ethernet ports: 17
* 1G Ethernet ports PoE-out: 8
* SFP+ ports: 2
Periphery
* Console port: RJ45
* Number of USB ports: 1
* USB Power Reset: áno
* USB Type: USB 3.0 Type A
* Maximum USB current: 1 A
Link to the manufacturer's website: https://mikrotik.com/product/crs418_8p_8g_2s_rm#fndtn-specifications
| Model design | |
|---|---|
| Fanless switch | No |
| Includes switch | Yes |
| Switch design | Do the rack |
| Connection | |
| Number of SFP+ ports | 2 |
| PoE in standard version | Not supported |
| Standard PoE output | 802.3at (max. 33,6W) - PoE+ |
| Entry point | Out (output) |
| PoE power budget (W) | 101-200 |
| Speed | |
| Maximum LAN speed | 10Gbps |
| Outdoor accessories | |
| Number of LAN ports | 17 |
