Switch hAP ax S E62iUGS-2axD5axT

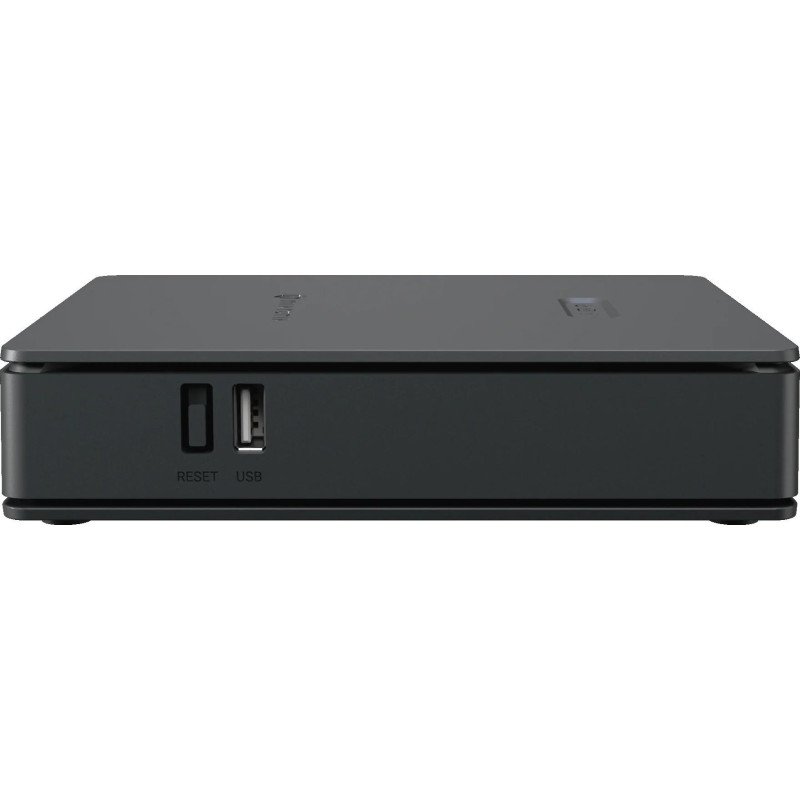

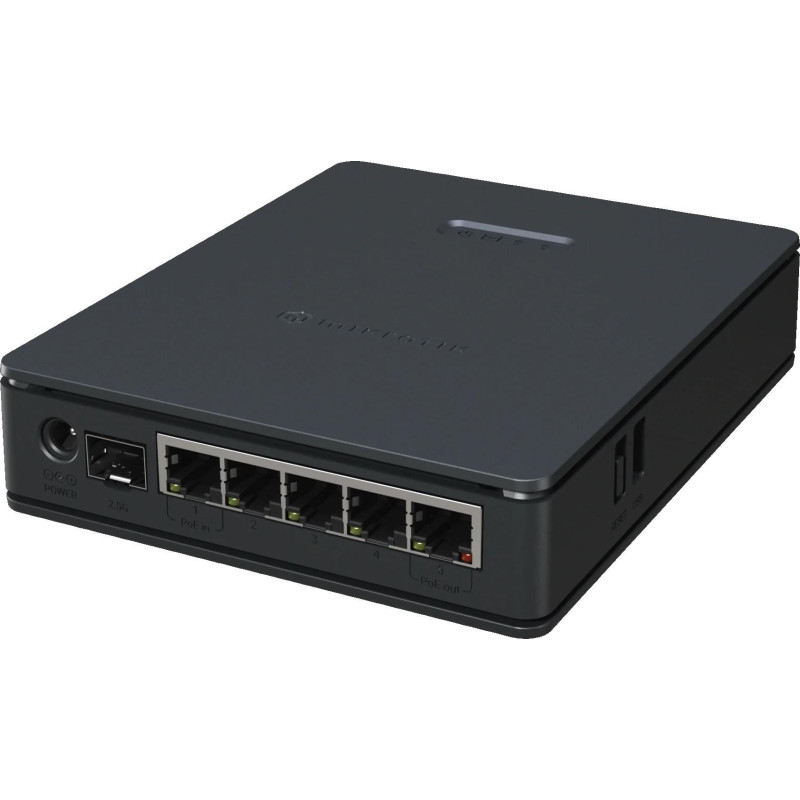

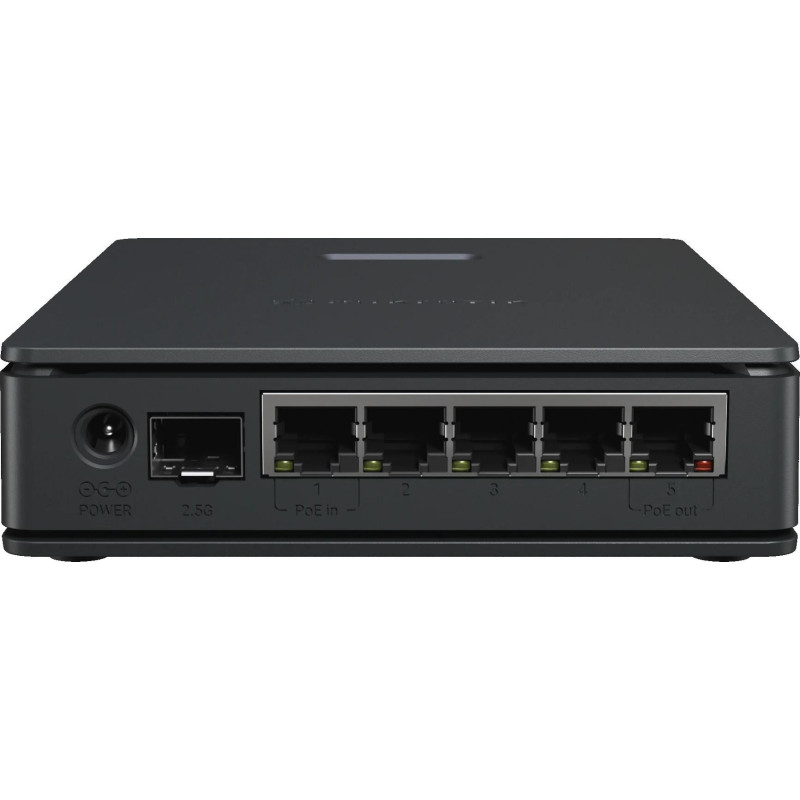

MikroTik hAP ax S
Functions

Powerful Wi-Fi 6 connectivity

* Dual-band Wi-Fi 6 s speed up to AX2400 guarantees high performance even for demanding home and business networks.

Strong 5 GHz triple-chain radio part

* Trojreťazcové 5 GHz radio provides bandwidth up to 900 Mbit/s for stable connection even in busy environments.

Flexible connection and extension

* 5× Gigabit Ethernet, SFP port with support for 2.5G, USB port and power supply via PoE-in or DC jack.

PoE-out for other devices

* Port Ether5 supports passive PoE-out before connecting other elements to the network.

Powerful dual-core processor

* ARM dual-core CPU na 950 MHz handles demanding network functions in RouterOS v7.

Durable construction

* High-quality solid chassis with the option of mounting on the wall for operation at temperatures from -40 °C to 70 °C.

Specifications

ARM 32-bit
CPU: EN7562CT
Number of CPU cores: 2
CPU clock speed: 950 MHz
Switch chip: EN7523
RouterOS license: 4
Operating system: RouterOS v7
RAM: 512 MB
Storage: 128 MB
Storage type: NAND
MTBF: Approximately 100,000 hours at 25 °C
Tested temperature: -40 °C to 70 °C
IPsec acceleration: Áno
WIRELESS
2.4GHz:
* Max. speed: 574 Mbit/s
* Chains: 2
* Standard: 802.11b/g/n/ax
* Antenna: 5.5 dBi
* Chipset: MT7916
* Generation: Wi-Fi 6
5GHz:
* Max. speed: 1800 Mbit/s
* Chains: 3
* Standard: 802.11a/n/ac/ax
* Zisk antenny: 8.07 dBi
* Chipset: MT7976
* Generation: Wi-Fi 6
Wi-Fi speed: AX2400
ETHERNET
10/100/1000 ports: 5
PoE-out port 1G: 1
FIBER
SFP ports: 1 (support 2.5G)
PERIPHERY
USB ports: 1
USB power reset: Áno
USB Type: USB-A
Max USB power: 1 A
POWER SUPPLY
Number of DC entries: 2 (DC jack, PoE-IN)
DC jack voltage: 12-28 V
Max. consumption: 34 W
Max. consumption without load: 11 W
PoE-in: Passive PoE
PoE-in voltage: 18-28 V
Cooling: Passive
PoE-OUT
PoE-out port: Ether5
PoE-out type: Passive PoE
Limit current: 0.6 A
Max. total current: 0.6 A
Max. performance: 16.8 W
CERTIFICATIONS
Certifications: CE, FCC, IC, EAC, ROHS
IP dropped: 20
OTHERS
CPU temperature monitoring: Áno
WIRELESS SPECIFICATIONS
2.4GHz:
* 1MBit/s: 24 dBm / -100 dBm
* 11MBit/s: 24 dBm / -94 dBm
* 6MBit/s: 23 dBm / -96 dBm
* 54MBit/s: 21 dBm / -80 dBm
* MCS0: 22 dBm / -96 dBm
* MCS7: 20 dBm / -75 dBm
* MCS9: 19 dBm / -70 dBm
* MCS11: 15 dBm / -67 dBm
5GHz:
* 6MBit/s: 23 dBm / -96 dBm
* 54MBit/s: 21 dBm / -81 dBm
* MCS0: 23 dBm / -96 dBm
* MCS7: 20 dBm / -77 dBm
* MCS9: 20 dBm / -72 dBm
* MCS11: 18 dBm / -69 dBm
