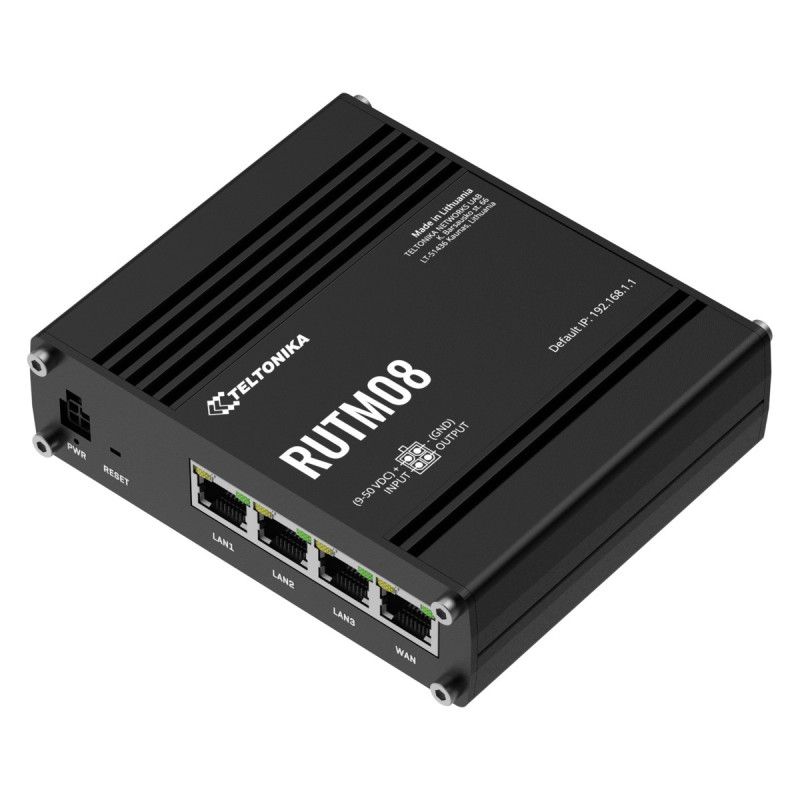

Router Teltonika RUTM08
Product reference: 26-RUTM08
  • Type: Router
  • Model: Teltonika RUTM08
  • Connections: 1 x WAN, 3 x LAN, 4 x RJ45 (1000 Mbps), 1 x USB Type A
  • Memory: 256MB DDR3 RAM, 16MB NOR + 256MB NAND Flash
  • Operating system: RutOS
  • Power input: 1 x 4-pin DC (8-50 VDC)
  • Power output: 1 x 50V 300mA
  • Support: DLMS
  • Operating temperature: -40...75°C
Router Teltonika RUTM08

Router Teltonika RUTM08

Product reference: 26-RUTM08
  • Type: Router
  • Model: Teltonika RUTM08
  • Connections: 1 x WAN, 3 x LAN, 4 x RJ45 (1000 Mbps), 1 x USB Type A
  • Memory: 256MB DDR3 RAM, 16MB NOR + 256MB NAND Flash
  • Operating system: RutOS
  • Power input: 1 x 4-pin DC (8-50 VDC)
  • Power output: 1 x 50V 300mA
  • Support: DLMS
  • Operating temperature: -40...75°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11062 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Ethernet
  • WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • Network
  • Route Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
  • VoIP gateway support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Firewall Port forward, traffic rules, custom rules, TTL target customization
  • Firewall status page View all your Firewall statistics, rules, and rule counters
  • Port management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Network topology Visual representation of your network, showing which devices are connected to which other devices
  • DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS/Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS Supported > 25 service providers, others can be configured manually
  • DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Network backups VRRP, Wired options, each of which can be used as an automatic failover
  • Load balancing Balance Internet traffic over multiple WAN connections
  • Public Internet access point Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and optionality to upload and download customized hotspot themes
  • SSHFS Possibility to mount remote file system via SSH protocol
  • VRF support Initial virtual routing and forwarding (VRF) support
  • Traffic management Real-time monitoring, wireless signal charts, traffic usage history
  • Security
  • 802.1x Port-based network access control client
  • Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal External RADIUS users authentication, IP login attempts block, time-based login blocking, built-in random password generator
  • Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Burglary prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANs Port and tag-based VLAN separation
  • WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access control Flexible access control of SSH, Web interface, CLI and Telnet
  • Generating SSL certificates Let's Encrypt and SCEP certificate generation methods
  • VPN
  • OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
  • IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GRE GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
  • DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTP SSTP client instance support
  • ZeroTier ZeroTier VPN client support
  • WireGuard WireGuard VPN client and server support
  • Tinc Tinc offers encryption, authentication and compression in its tunnels. Client and server support.
  • Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
  • OPC UA
  • Supported modes Client, Server
  • Supported connection types TCP
  • MODBUS
  • Supported modes Server, Client
  • Supported connection types TCP, USB
  • Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • DATA TO SERVER
  • Protocol HTTP(S), MQTT, Azure MQTT
  • Date to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
  • MQTT Gateway
  • Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
  • DNP3
  • Supported modes Station, Outstation
  • Supported connection TCP, USB
  • DLMS
  • DLMS Support DLMS - standard protocol for utility meter data exchange
  • Supported modes Client
  • Supported connection types TCP, USB
  • COSEM Allows to scan meter COSEM objects for automatic detection and configuration
  • API
  • Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
  • Monitoring Management
  • WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • PHOTO Firmware update from server, automatic notification
  • SSH SSH (v1, v2)
  • Email Receive email message status alerts of various services
  • TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT MQTT Broker, MQTT publisher
  • SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • JSON-RPC Management API over HTTP/HTTPS
  • RMS Teltonika Remote Management System (RMS)
  • IoT platforms
  • Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
  • Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • System Characteristics
  • Processor MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
  • RAM 256MB, DDR3
  • FLASH storage 16 MB serial NOR flash, 256 MB serial NAND flash
  • Settings
  • WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
  • PHOTO Update FW
  • RMS Update FW/configuration for multiple devices at once
  • Remembering settings Update FW without losing current configuration
  • Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
  • FIRMWARE CUSTOMIZATION
  • Operating system RutOS (OpenWrt based Linux OS)
  • Languages Busybox shell, Lua, C, C++
  • Developer tools SDK package with build environment provided
  • GPL customization You can create your own custom, branded firmware and web page application by changing colors, logos, and other elements in our firmware to fit your or your clients' needs
  • Package Manager The Package Manager is a service used to install additional software on the device
  • USB
  • Data transfer USB 2.0
  • Usage Samba share, USB-to-serial
  • External devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
  • Internal memory format FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
  • Input / Output
  • input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
  • output 1 x Digital Output, Open collector output, max output 50 V, 300 mA
  • Events Email, RMS
  • I/O switch Allows to set certain I/O conditions to initiate event
  • Energy
  • Connectors 4-pin industrial DC power socket
  • Input voltage range 9 - 50 VDC, reverse polarity protection, surge protection > 51 VDC 10us max
  • PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
  • Energy use Idle: < 1.8 W / Max: < 5.5 W
  • Physical interfaces
  • Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
  • I/Os 1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LED indicators 8 x LAN status LEDs, 1 x Power LED
  • Energy 1 x 4-pin power connector
  • USB 1 x USB A port for external devices
  • Reloading Reboot/User default reset/Factory reset button
  • Other 1 x Grounding screw
  • Physical specifications
  • Housing Anodized aluminum housing and panels
  • Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
  • Weight 353 g
  • Installation DIN rail, wall mount, flat surface (all require additional kit)
  • Work environment
  • Working temperature -40°C to 75°C
  • Humidity 10% to 90% non-condensing
  • IP rating IP30
  • Regulatory Type Approvals
  • Regulation CE, UKCA, RCM, CB
  • EMC Emissions Immunity
  • Standards EN 55032:2015+A11:2020
  • ESD EN 61000-4-2: 2009
  • Radiated Immunity EN IEC 61000-4-3:2020
  • EFT EN 61000-4-4: 2012
  • Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017
  • CS EN 61000-4-6:2014
  • DIP EN IEC 61000-4-11:2020
  • Security
  • Standards IEC 62368-1:2018
  • Safety (Ordinary Locations)
  • Standards CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

Manufacturer codeRUTM08
ManufacturerTeltonics
Weight0 kg
