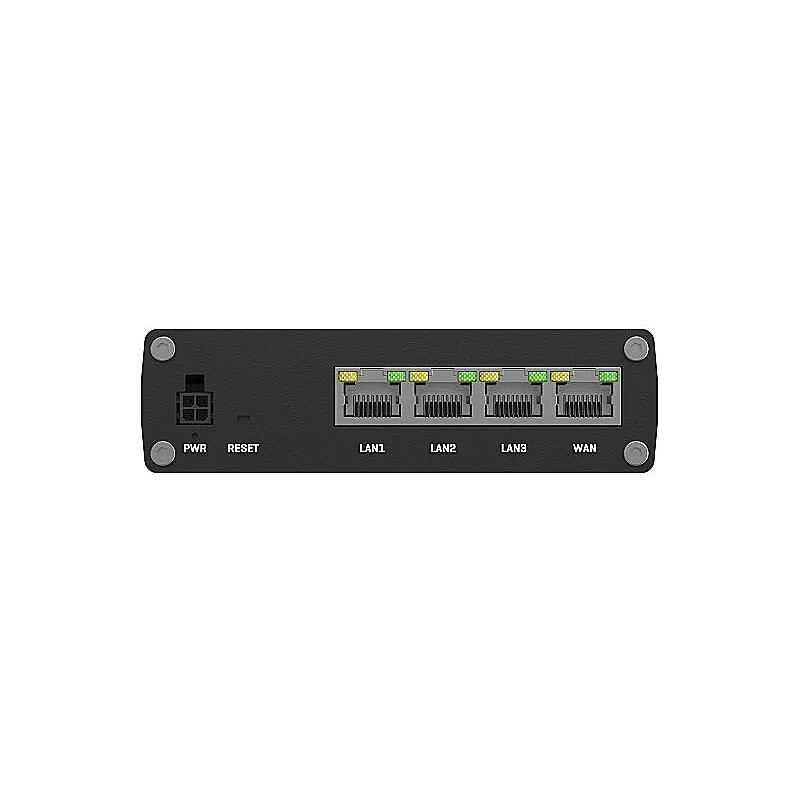

Maršrutizatorius Teltonika RUTM08
Prekės kodas: 26-RUTM08
  • Tipas: Maršrutizatorius
  • Modelis: Teltonika RUTM08
  • Jungtys: 1 x WAN, 3 x LAN, 4 x RJ45 (1000 Mbps), 1 x USB Type A
  • Atmintis: 256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND Flash
  • Operacinė sistema: RutOS
  • Maitinimo įėjimas: 1 x 4-pin DC (8-50 VDC)
  • Maitinimo išėjimas: 1 x 50 V 300 mA
  • Palaikymas: DLMS
  • Darbo temperatūra: -40...75°C
Maršrutizatorius Teltonika RUTM08

Maršrutizatorius Teltonika RUTM08

Prekės kodas: 26-RUTM08
  • Tipas: Maršrutizatorius
  • Modelis: Teltonika RUTM08
  • Jungtys: 1 x WAN, 3 x LAN, 4 x RJ45 (1000 Mbps), 1 x USB Type A
  • Atmintis: 256 MB DDR3 RAM, 16 MB NOR + 256 MB NAND Flash
  • Operacinė sistema: RutOS
  • Maitinimo įėjimas: 1 x 4-pin DC (8-50 VDC)
  • Maitinimo išėjimas: 1 x 50 V 300 mA
  • Palaikymas: DLMS
  • Darbo temperatūra: -40...75°C
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
101,69 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
  • Ethernet
  • WAN 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • Tinklas
  • Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • Protokolai TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
  • VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Ugniasienė Port forward, traffic rules, custom rules, TTL target customisation
  • Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters
  • Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices
  • DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS / išmanusis eilių valdymas (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS Supported > 25 service providers, others can be configured manually
  • DNS per HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Tinklo atsarginės kopijos VRRP, Wired options, each of which can be used as an automatic Failover
  • Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
  • Viešosios interneto prieigos taškas Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
  • SSHFS Possibility to mount remote file system via SSH protocol
  • VRF support Initial virtual routing and forwarding (VRF) support
  • Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
  • Saugumas
  • 802.1x Port-based network access control client
  • Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • Ugniasienė Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN Port and tag-based VLAN separation
  • WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Prieigos kontrolė Flexible access control of SSH, Web interface, CLI and Telnet
  • SSL sertifikatų generavimas Let's Encrypt and SCEP certificate generation methods
  • VPN
  • OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN šifravimas DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
  • IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GRE GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
  • DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTP SSTP client instance support
  • ZeroTier ZeroTier VPN client support
  • WireGuard WireGuard VPN client and server support
  • Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
  • Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
  • OPC UA
  • Palaikomi režimai Client, Server
  • Supported connection types TCP
  • MODBUS
  • Palaikomi režimai Server, Client
  • Supported connection types TCP, USB
  • Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Palaikomi duomenų formatai 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • DATA TO SERVER
  • Protokolas HTTP(S), MQTT, Azure MQTT
  • Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
  • MQTT Gateway
  • Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
  • DNP3
  • Palaikomi režimai Station, Outstation
  • Supported connection TCP, USB
  • DLMS
  • DLMS Support DLMS - standard protocol for utility meter data exchange
  • Palaikomi režimai Client
  • Supported connection types TCP, USB
  • COSEM Allows to scan meter COSEM objects for automatic detection and configuration
  • API
  • Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
  • Monitoring & Management
  • WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • FOTA Firmware update from server, automatic notification
  • SSH SSH (v1, v2)
  • El. paštas Receive email message status alerts of various services
  • TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT MQTT Broker, MQTT publisher
  • SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • JSON-RPC Management API over HTTP/HTTPS
  • RMS Teltonika Remote Management System (RMS)
  • IoT platformos
  • Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
  • Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • Sistemos Characteristikos
  • Procesorius MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
  • RAM 256MB, DDR3
  • FLASH saugykla 16 MB serial NOR flash, 256 MB serial NAND flash
  • Nustatymai
  • WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA Update FW
  • RMS Update FW/configuration for multiple devices at once
  • Nustatymų įsiminimas Update FW without losing current configuration
  • Factory settings reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
  • FIRMWARE CUSTOMISATION
  • Operacinė sistema RutOS (OpenWrt based Linux OS)
  • Kalbos Busybox shell, Lua, C, C++
  • Kūrėjo įrankiai SDK package with build environment provided
  • GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs
  • Package Manager The Package Manager is a service used to install additional software on the device
  • USB
  • Duomenų perdavimas USB 2.0
  • Nadojimas Samba share, USB-to-serial
  • Išoriniai įrenginiai Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
  • Vidinės atminties formatas FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
  • Input / Output
  • įvestis 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
  • išvestis 1 x Digital Output, Open collector output, max output 50 V, 300 mA
  • Įvykiai Email, RMS
  • I/O jungiklis Allows to set certain I/O conditions to initiate event
  • Energija
  • Jungtys 4-pin industrial DC power socket
  • Įeinančios įtampos diapazonas 9 - 50 VDC, reverse polarity protection, surge protection > 51 VDC 10us max
  • PoE (pasyvus) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
  • Energijos naudojimas Idle: < 1.8 W / Max: < 5.5 W
  • Fizinės sąsajos
  • Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
  • I/O's 1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Būsenos LED indikatoriai 8 x LAN status LEDs, 1 x Power LED
  • Energija 1 x 4-pin power connector
  • USB 1 x USB A port for external devices
  • Perkrovimas Reboot/User default reset/Factory reset button
  • Kita 1 x Grounding screw
  • Fizinės specifikacijos
  • Korpusas Anodized aluminum housing and panels
  • Matmenys (P x A x G) 115 x 32.2 x 95.2 mm
  • Svoris 353 g
  • Montavimas DIN rail, wall mount, flat surface (all require additional kit)
  • Darbo aplinka
  • Darbo temperatūra -40 °C to 75 °C
  • Drėgmė 10% to 90% non-condensing
  • IP reitingas IP30
  • Regulatory & Type Approvals
  • Reguliavimas CE, UKCA, RCM, CB
  • EMC Emissions & Immunity
  • Standartai EN 55032:2015+A11:2020

Gamintojas Teltonika Networks
Gamintojo kodas RUTM08
Svoris 0.000000 kg
