Router Mikrotik RB5009UPr+S+OUT Total Ethernet Ports:9 Architecture:ARM 64bit CPU core:4
Product reference: 3-4752224008459

Router Mikrotik RB5009UPr+S+OUT Total Ethernet Ports:9; Architecture:ARM 64bit; CPU core:4

Router Mikrotik RB5009UPr+S+OUT Total Ethernet Ports:9 Architecture:ARM 64bit CPU core:4

Product reference: 3-4752224008459

Router Mikrotik RB5009UPr+S+OUT Total Ethernet Ports:9; Architecture:ARM 64bit; CPU core:4

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
268,23
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here's our wishlist for the perfect tool:
- easy to deploy
- works well in ANY weather
- provides extensive power redundancy
- can be connected via most common networking interfaces
- has a CPU that is strong enough to take full advantage of the most powerful
- networking software in the world - RouterOS v7
- doesn't cost a fortune

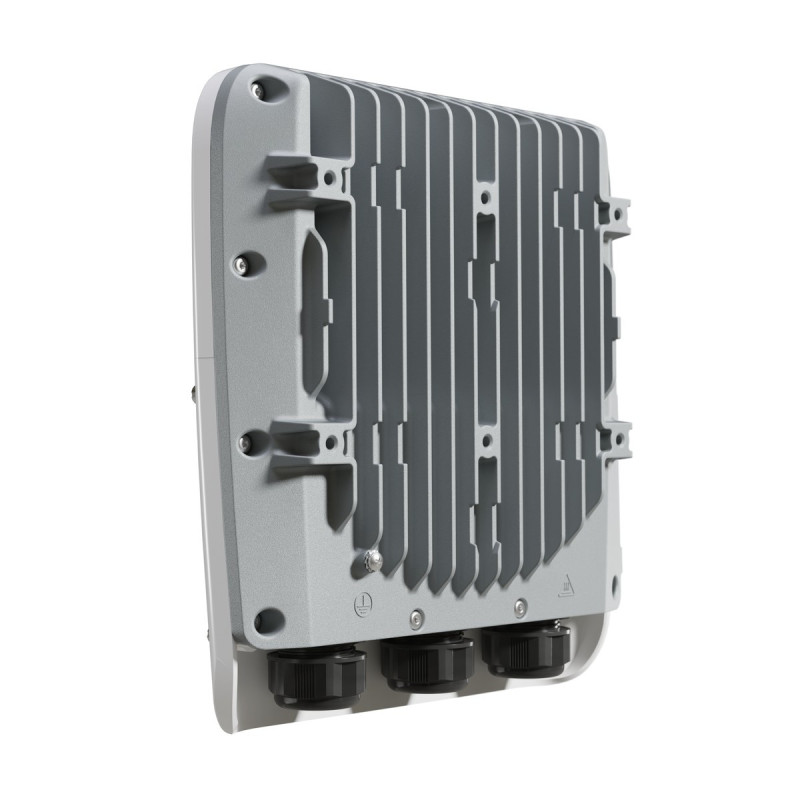

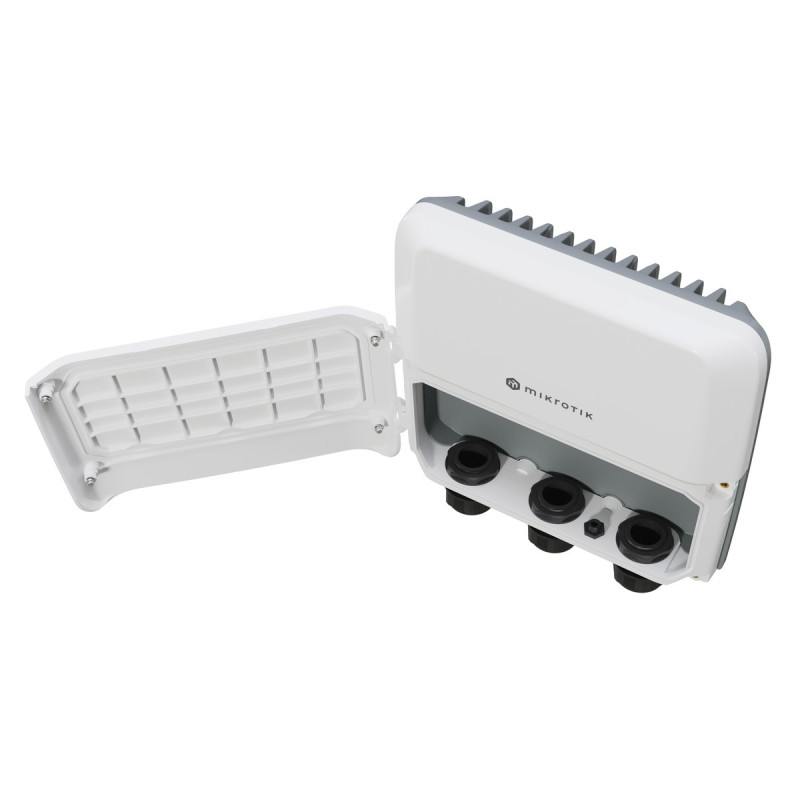

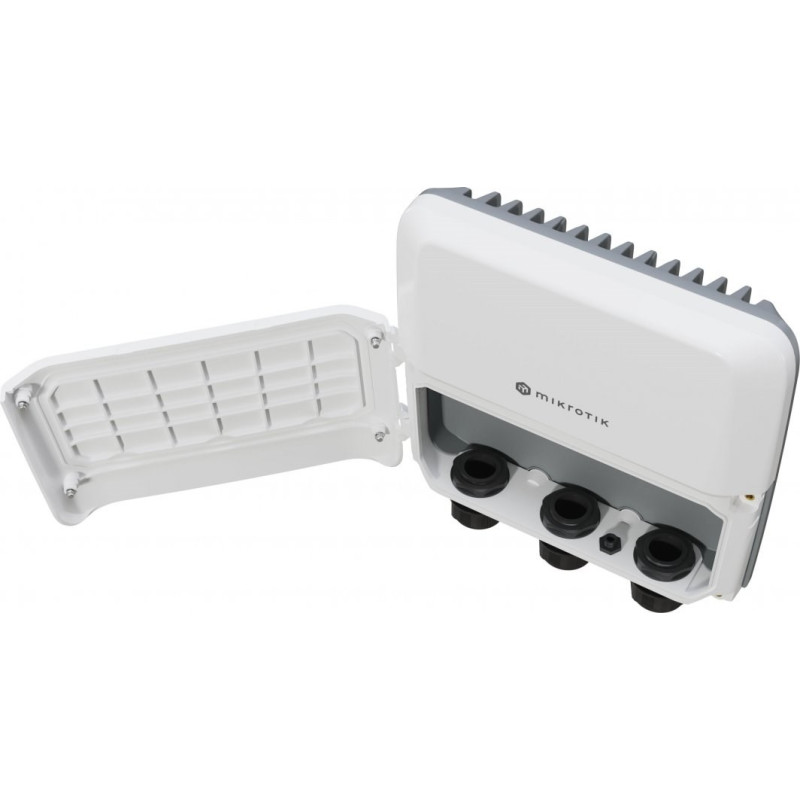

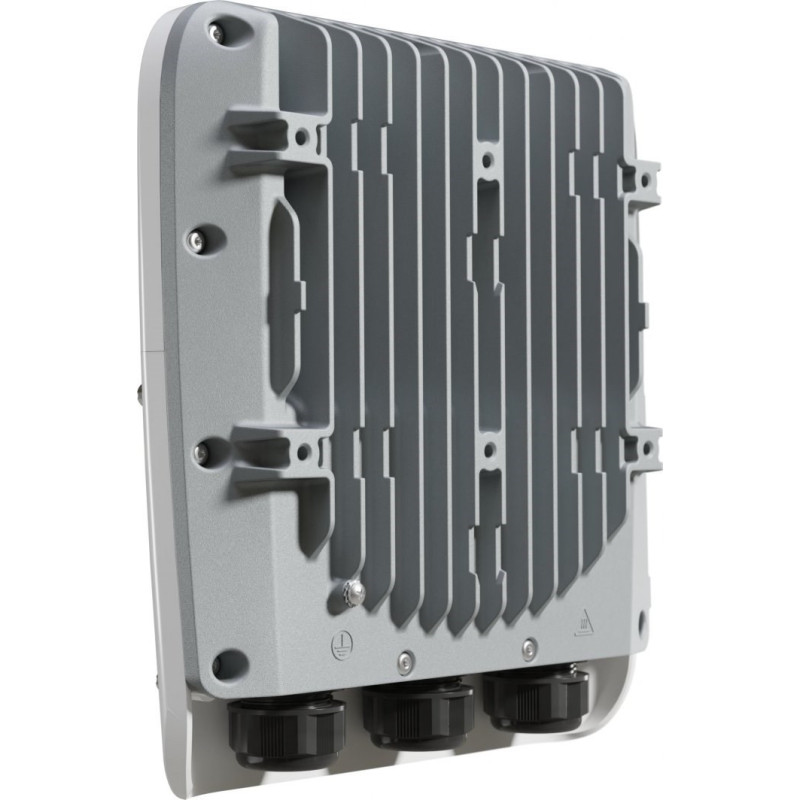

Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You're getting one of the most powerful outdoor networking devices for the best price on the market!

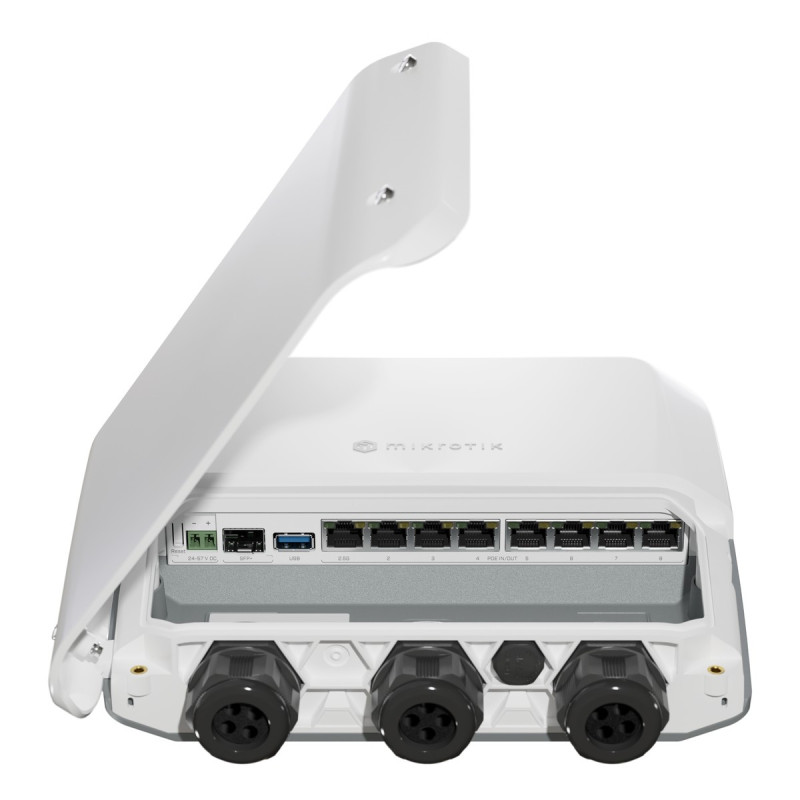

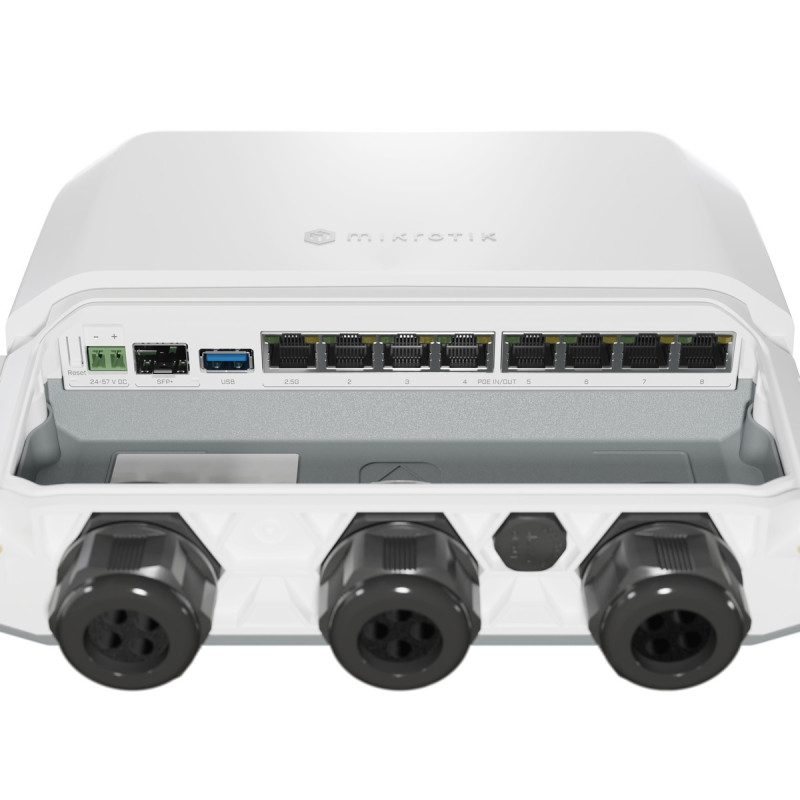

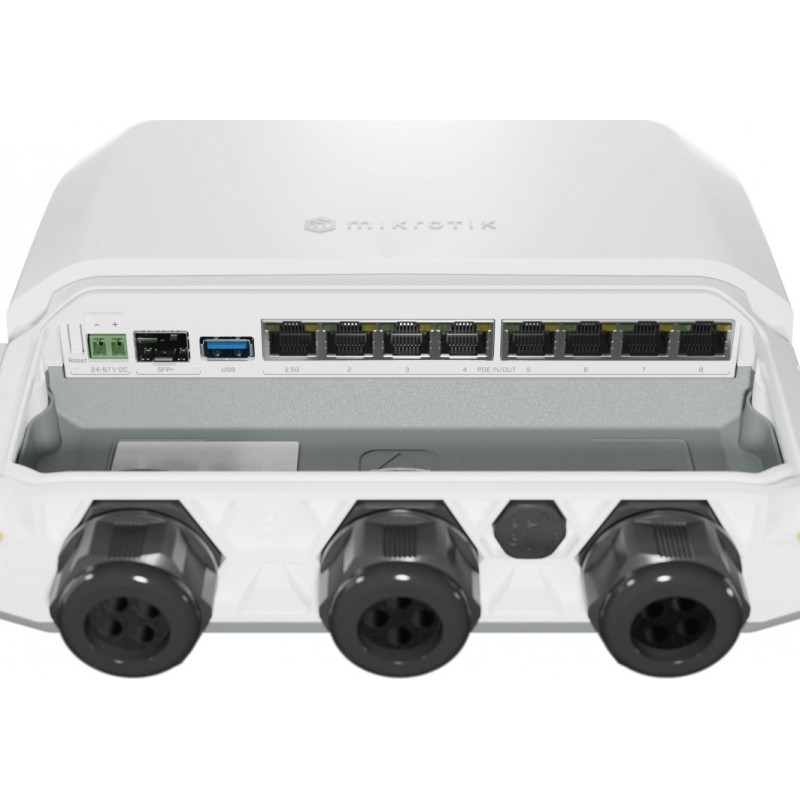

Like the indoor version, this RB5009 has 7x Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage, and a full sized USB3 port!
When we say "extensive power redundancy", we really mean it: the unit offers 9 possible ways of powering. There's a 2-pin power connector on the front, as well as PoE-in and PoE-out on all eight Ethernet ports. The board can use any of these sources to power itself, choosing the one with the highest voltage when multiple sources are available. RB5009 takes up to 21W to power itself. If you're using PoE-in, the board will stay on even if 8 of your 9 power sources suddenly go down. Unprecedented redundancy!
All power options support a wide voltage range of 24 - 57 V. However, you can not mix the voltages.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify the maximum available power from your power sources manually, if necessary. If you're using PoE-out to power other devices, you have to provide power via the 2-pin connector to power those.
This product also features single voltage PoE-out - it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
The RB5009 series keep redefining affordable reliability for small, medium, and even large ISPs!


Summary:Mikrotik RB5009UPr+S+OUT. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet. USB version: 3.2 Gen 1 (3.1 Gen 1). Processor manufacturer: Marvell, Processor model: 88F7040, Processor frequency: 1400 MHz. Product color: White. Power consumption (typical): 150 W, Power source type: PoE
Vendor Homepage:https://mikrotik.com/product/rb5009_out
Category Code:ROU
CnCode:85176200
Unit Box Height:0.075
Unit Box Length:0.31
Unit Box Width:0.24
3G/4G USB modem compatibility:From
DSL WAN:From
Ethernet WAN:From
SFP WAN:From
SIM card slot:From
Ethernet interface type:2.5 Gigabit Ethernet/Gigabit Ethernet
Networking standards:IEEE 802.3af/IEEE 802.3at
DC-in jack:Yes
Ethernet LAN (RJ-45) port:8
Power over Ethernet (PoE) port quantity:8
SFP+ module slots quantity:1
USB ports quantity:1
USB version:3.2 Gen 1 (3.1 Gen 1)
Manual:Yes
Built-in processor:Yes
Certification:CE, EAC, ROHS
Internal memory:1024MB
Internal storage capacity:1GB
Mean time between failures (MTBF):200000h
Operating system installed:RouterOS
Processor frequency:1400MHz
Processor manufacturer:Marvell
Processor model:88F7040
Temperature monitoring:Yes
Voltage monitoring:Yes
Product colour:White
Power consumption (typical):150W
Power over Ethernet (PoE):Yes
Power source type:PoE
Operating temperature (TT):-40 - 70°C
Depth:239mm
Height:57mm
Width:222mm
Model:RB5009UPR+S+OUT
Units per Pallet:0
Units per Shipping Box:5
Unit Calculated Volume:0.006961m³
Unit Calculated Weight:1.96kg
