Router CCR2216-1G-12XS-2XQ

High performance router CCR2216-1G-12XS-2XQ

The CCR2216-1G-12XS-2XQ is a powerful 14-port router for 100 gigabit networks with hardware L3 offload. It is an ideal upgrade for CCR1072 users. You can still use your SFP modules and power supplies when upgrading your network to faster speeds.

16-core AL73400 processor

MikroTik's CCR2216-1G-12XS-2XQ router is based on a 16-core AL73400 processor at 2 GHz, which can match the 72-core Tile processor from its previous flagship, the CCR1072, thanks to the L3HW.

25 Gbps and 100 Gbps ports

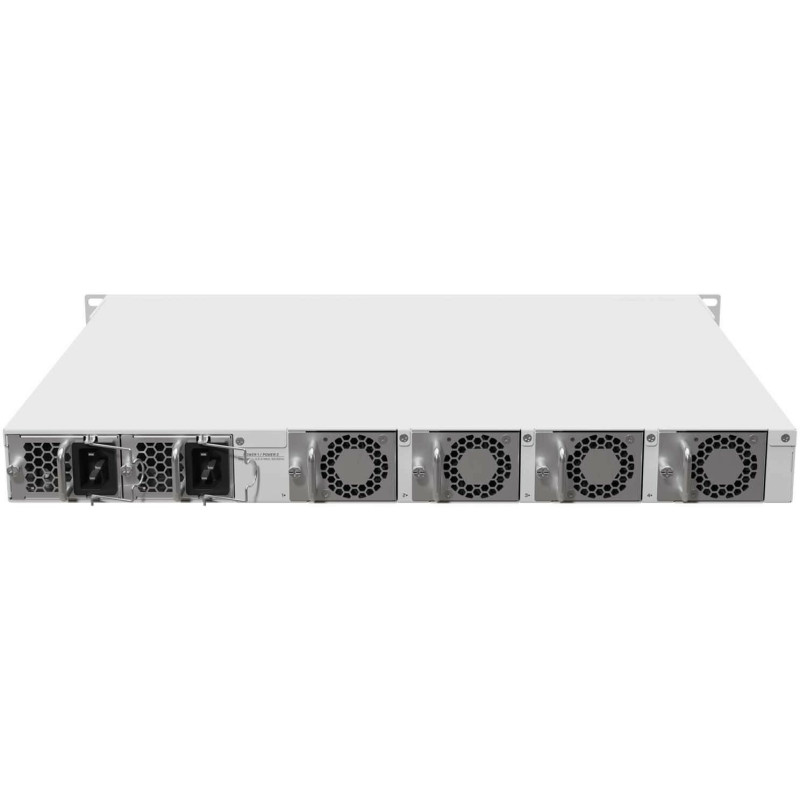

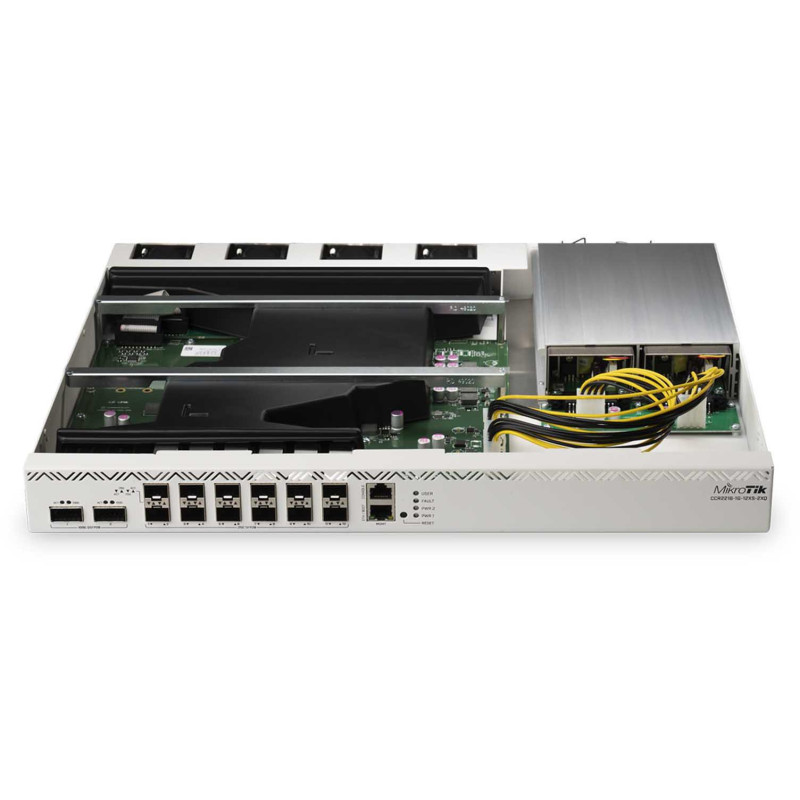

The router has 2 QSFP28 port for 100Gbps connections, 12 SFP28 port for 25Gbps network connections and one Gigabit Ethernet port. The device features 16GB of RAM, 128MB of NAND memory and two M.2 SATA slots for additional memory. The CCR2216-1G-12XS-2XQ also has four fans and two redundant, hot-swappable power supplies. The power supplies are the same as those used in the CCR1072.

L3 Hardware Offloading

L3HW hardware offloading, also known as IP switching or hardware routing, allows some router functions to be moved to the switch chip. This allows for speeds in packet routing that simply would not be possible with a processor.

Marvell Prester Aldrin2

Marvell Prester 's unique Aldrin2 switch chip really takes the CCR2216-1G-12XS-2XQ to the next level with L3 hardware offload. The previous CCR2116 had a switch chip with four lines connecting a 10G processor, while the new model has four 25G lines.

Key features

• AL73400 processor


• 16 GB of DDR4 RAM


• 12 SFP28 slots (25 Gbps)


• 2 QSFP28 (100 Gbps) slots


• 1 gigabit Ethernet port (10/100/1000 Mbps)


• 2 M.2 SATA slots
