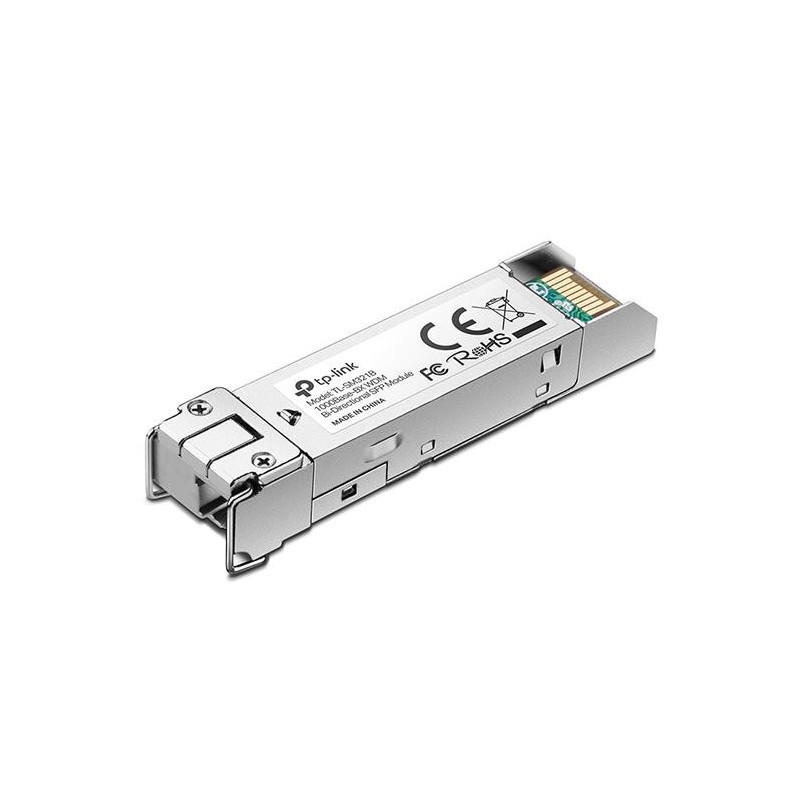

NET SWITCH MODULE SFP 1000B-BX / SM321B TP-LINK
Product reference: 2-6935364030520
NET SWITCH MODULE SFP 1000B-BX / SM321B TP-LINK

NET SWITCH MODULE SFP 1000B-BX / SM321B TP-LINK

Product reference: 2-6935364030520
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18,35 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Spotlight:
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

Features
- Supports WDM Bi-Directional technology, using a single strand of fiber
- TX: 1310nm / RX: 1550nm
- Internal +3.3V Power Supply
- In pairs with TL-SM321A
- Plug-and-Play
- Suitable: MC220L, TL-R4199G/4299G, TL-SG3109, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and the other equivalent devices


Certification FCC, CE
Depth 12.9 mm
Fiber cable diameters supported (core/cladding) 9/125 µm
Harmonized System (HS) code 85369010
Height 12.9 mm
Input voltage 3.3 V
Interface type SFP
Maximum data transfer rate 1250 Mbit/s
Maximum transfer distance 10000 m
Model TP-LINK TL-SM321B V3
Networking standards IEEE 802.3z
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 70 °C
Package depth 122.5 mm
Package height 38.5 mm
Package weight 60 g
Package width 81.5 mm
Plug and Play Yes
Product Net Weight 0.05 kg
Rx wavelength (max) 1310 nm
SFP transceiver type Fiber optic
Shipping Box Depth 12 cm
Shipping Box Height 3.5 cm
Shipping Box Weight 0.06 kg
Shipping Box Width 8 cm
Single-mode fiber (SMF) supported Yes
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 80 °C
Summary TP-Link 1000Base-BX WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V. Certification: FCC, CE. Width: 55.4 mm, Depth: 12.9 mm, Height: 12.9 mm. Package width: 81.5 mm, Package depth: 122.5 mm, Package height: 38.5 mm
Tx wavelength (max) 1550 nm
Unit Box Height 0.035
Unit Box Length 0.12
Unit Box Width 0.08
Unit Calculated Volume 0.000336 cubm
Unit Calculated Weight 0.06 kg
Units per Shipping Box 1
Vendor Homepage https://www.tp-link.com/products/productDetails.asp?class=&content=fea&pmodel=TL-SM321B
Width 55.4 mm
