NET POE EXTENDER PASSIVE / PFT1300 DAHUA
Product reference: 2-6939554913044
NET POE EXTENDER PASSIVE / PFT1300 DAHUA

NET POE EXTENDER PASSIVE / PFT1300 DAHUA

Product reference: 2-6939554913044
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35,45 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

  • Support passive PoE cascade power supply and Ethernet data exchange
  • Support IEEE 802.3af/at standard power supply IP Camera
  • Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption <=8W), max transmission distance 300m

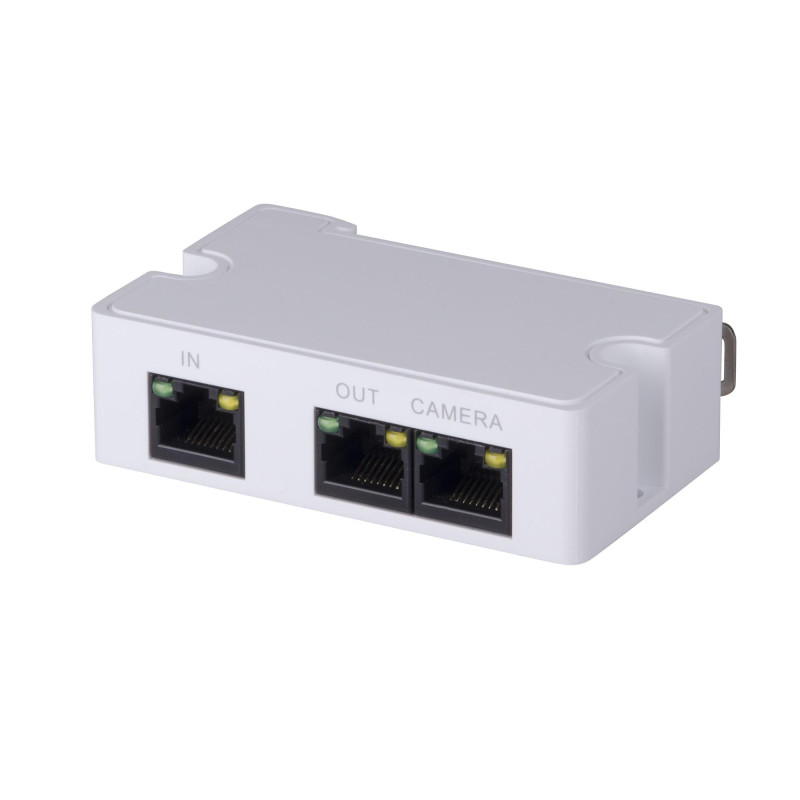

  • 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
  • Installation mode: junction box internal mounting, DIN rail mounting

Cabling technology 10/100Base-T(X)
Depth 52 mm
Ethernet LAN data rates 10/100 Mbit/s
Height 23 mm
Maximum transfer distance 300 m
Model name PFT1300
Networking standards IEEE 802.3af/IEEE 802.3at
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -30 - 65 °C
Power consumption (typical) 3 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 3
Product colour White
Product Net Weight 0.057 kg
Shipping Box Depth 11.5 cm
Shipping Box Height 8 cm
Shipping Box Weight 0.11 kg
Shipping Box Width 8 cm
Summary Dahua Technology PFT1300. Type: Network transmitter, Maximum transfer distance: 300 m, Ethernet LAN data rates: 10,100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3af, IEEE 802.3at. Product colour: White. Power consumption (typical): 3 W. Width: 79 mm, Depth: 52 mm, Height: 23 mm
Type Network transmitter
Unit Box Height 0.08
Unit Box Length 0.115
Unit Box Width 0.08
Unit Calculated Volume 0.000736 cubm
Unit Calculated Weight 0.11 kg
Unit Depth 11.5 cm
Unit Height 8 cm
Unit Width 8 cm
Units per Shipping Box 1
Vendor Homepage https://it.dahuasecurity.com/in/products/productDetail/8971
Weight 57 g
Width 79 mm
