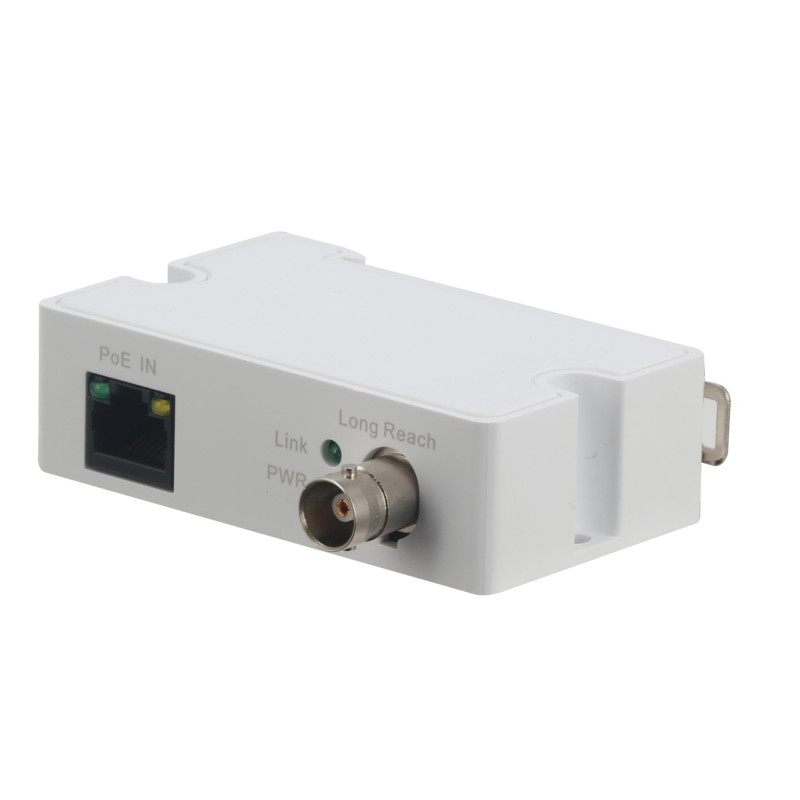

NET POE CONVERTER EOC RECEIVER / LR1002-1EC-V3 DAHUA
Product reference: 2-6923172589644
NET POE CONVERTER EOC RECEIVER / LR1002-1EC-V3 DAHUA

NET POE CONVERTER EOC RECEIVER / LR1002-1EC-V3 DAHUA

Product reference: 2-6923172589644
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
52,03 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

  • Supports IEEE802.3, IEEE802.3u standards
  • Support data line (1, 2, 3, 6) PoE power supply
  • Port: 1*RJ45 10/100Mbps, 1*BNC
  • Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
  • Supports MDI/MDIX self-adaption
  • Supports long range power supply transmission via coaxial cable

Auto MDIX IEEE Yes
Cabling technology 10/100Base-T(X)
Depth 52 mm
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10/100 Mbit/s
Height 23 mm
LED indicators Yes
Maximum transfer distance 1000 m
Model LR1002-1EC-V3
Model name LR1002-1EC-V3
Networking standards IEEE 802.3/IEEE 802.3u
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -30 - 65 °C
Power consumption (transmitter) (max) 2 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 1
Product colour Grey
Product Net Weight 0.061 kg
Shipping Box Depth 46.5 cm
Shipping Box Height 41 cm
Shipping Box Weight 5 kg
Shipping Box Width 25 cm
Summary Dahua Technology LR1002-1EC-V3. Type: Network receiver, Maximum transfer distance: 1000 m, Ethernet LAN data rates: 10,100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3u. Product colour: Grey. Power consumption (transmitter) (max): 2 W. Width: 79 mm, Depth: 52 mm, Height: 23 mm
Type Network receiver
Unit Box Height 0.08
Unit Box Length 0.115
Unit Box Width 0.08
Unit Calculated Volume 0.0007944 cubm
Unit Calculated Weight 0.083 kg
Units per Shipping Box 60
Vendor Homepage https://transmission.dahuasecurity.com/en/product-list/Business/Accessories/EthernetOverCoax(EoC)/LR1002-1ET/LR1002-1EC
Weight 61 g
Width 79 mm
