NET GPON TERMINAL 2,5G 1PORT / WAVE-FIBER-ONU UBIQUITI
Product reference:
2-810177162230
NET GPON TERMINAL 2,5G 1PORT / WAVE-FIBER-ONU UBIQUITI
Product reference:
2-810177162230
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

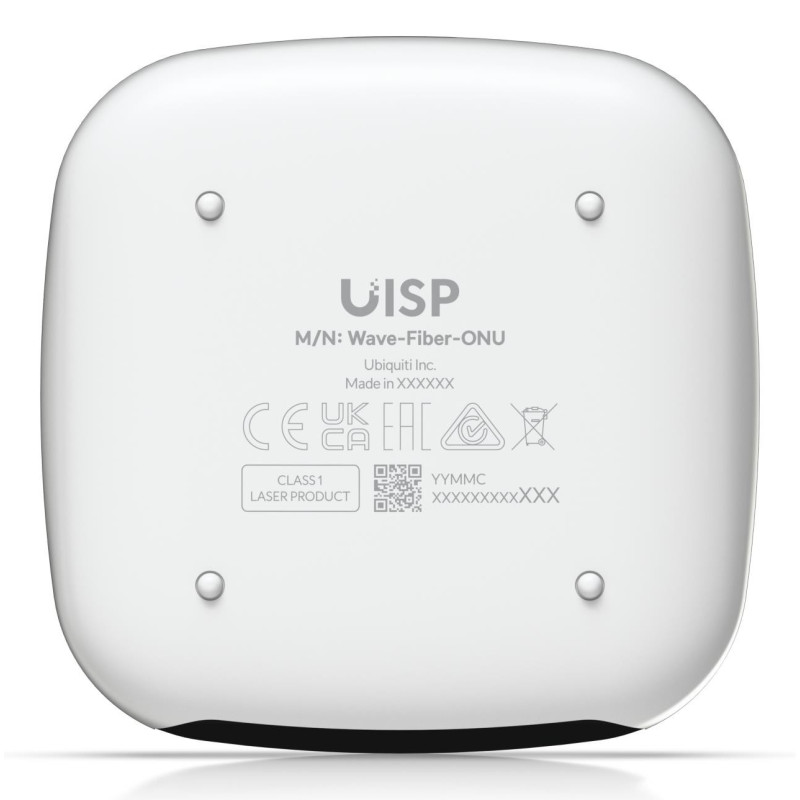

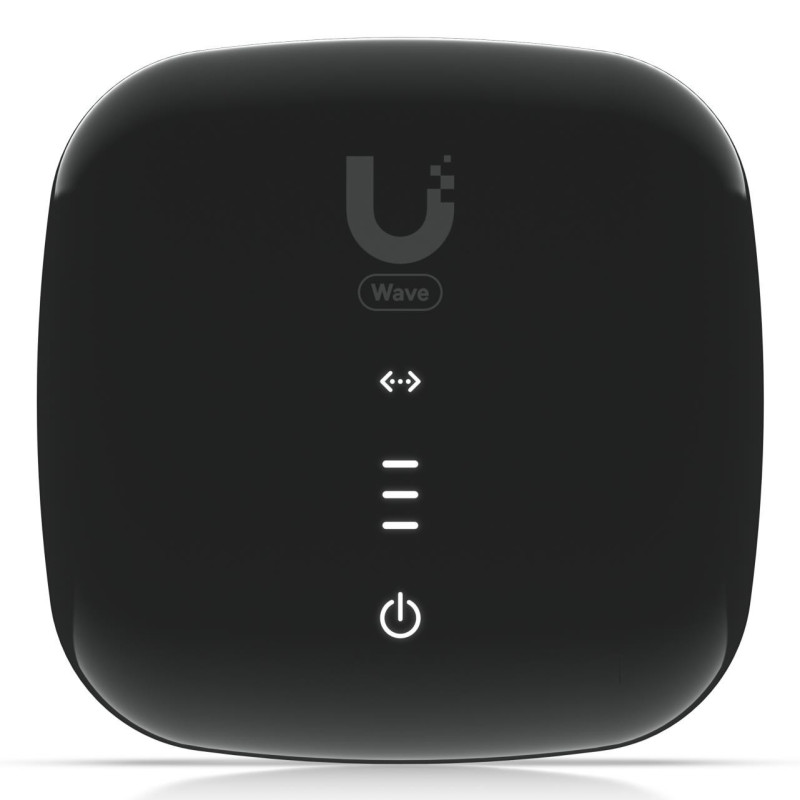

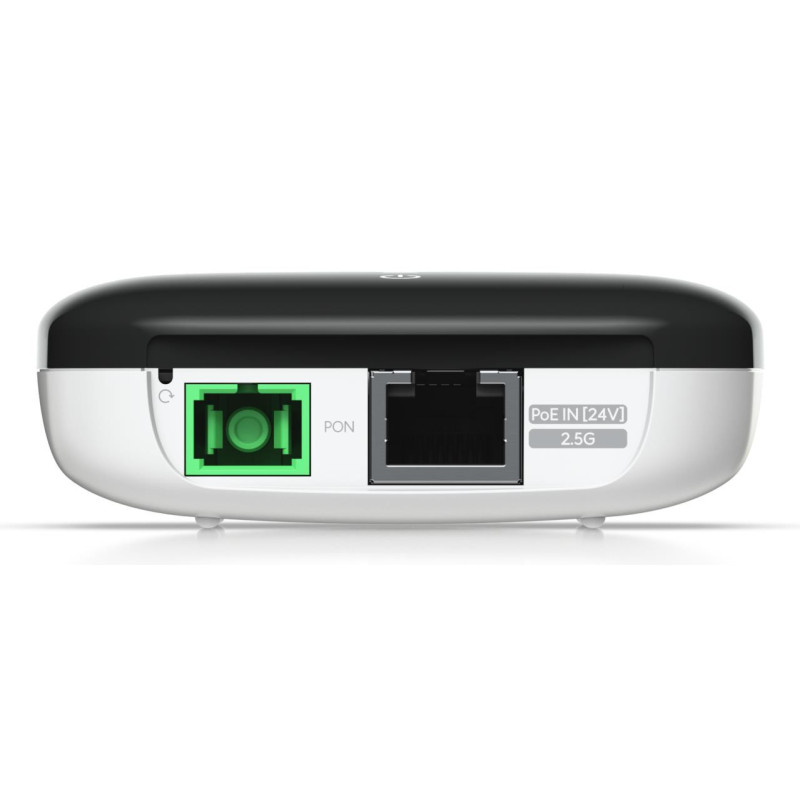

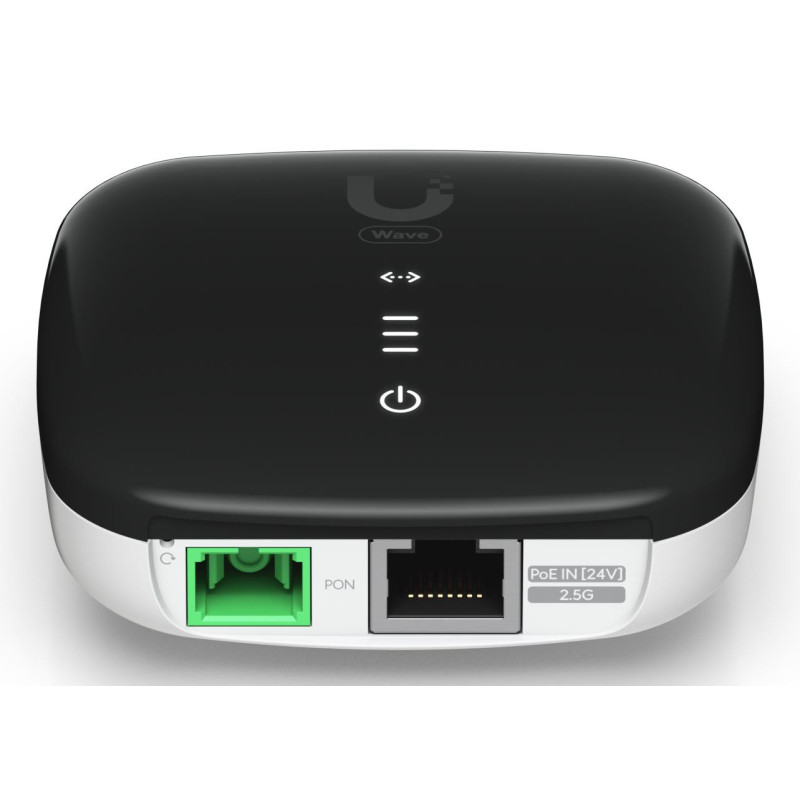

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Depth | 76.5 mm |
| Downstream data rate | 2488 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000/2500 Mbit/s |
| Fiber optic connector | SC/APC |
| Fiber ports quantity | 1 |
| Height | 26.4 mm |
| Housing material | Polycarbonate (PC) |
| ITU standards | G.984 |
| LED indicators | LAN/Power/Status |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -15 - 45 °C |
| Power consumption (max) | 5 W |
| Product colour | Black,White |
| Product Net Weight | 0.078 kg |
| Product type | Optical network unit (ONU) |
| Quantity per pack | 1 pc(s) |
| Reset button | Yes |
| Rx wavelength (min) | 1490 nm |
| Shipping Box Depth | 48.5 cm |
| Shipping Box Height | 23.5 cm |
| Shipping Box Weight | 7 kg |
| Shipping Box Width | 30 cm |
| Summary | Ubiquiti WaveFiber ONU. Product type: Optical network unit (ONU), Product colour: Black, White, Housing material: Polycarbonate (PC). ITU standards: G.984, Ethernet LAN data rates: 1000,2500 Mbit/s, Switch layer: L2/L3. Fiber optic connector: SC/APC. Power consumption (max): 5 W. Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Switch layer | L2/L3 |
| Transmission distance (max) | 20 km |
| Tx power (max) | 5 dBmW |
| Tx power (min) | 1.5 dBmW |
| Tx wavelength (min) | 1310 nm |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.002849 cubm |
| Unit Calculated Weight | 0.583 kg |
| Units per Shipping Box | 12 |
| Upstream data rate | 1244 Mbit/s |
| Vendor Homepage | https://eu.store.ui.com/eu/en/category/fiber-gpon/products/wave-fiber-onu |
| VLAN support | Yes |
| Weight | 78 g |
| Width | 76.5 mm |
