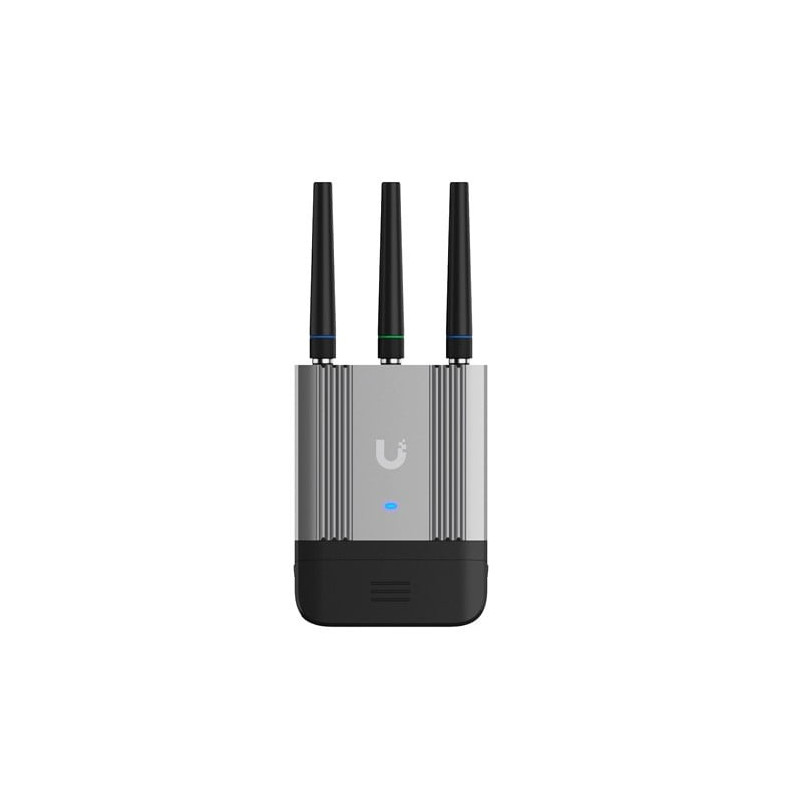

Modem Ubiquiti UniFi UMR industrial-EU (LTE(4G) / UMTS / GSM / GPRS LTE Cat4)

Product reference: 26-810084693384

Type: Industrial modem
Model: UMR-Industrial-EU
Mobile technology: LTE (4G), UMTS, GSM, GPRS
LTE category: Cat4
WAN port: 1
LAN speed: 1000 Mbps
VPN support: Yes
Power: 22 dBm
WiFi standard: 802.11b/g/n (WiFi 4)
SIM support: Yes
GPS support: Yes
PoE: IN/OUT
Operating temperature: -40°C to 70°C
Protection class: IP66
USB connector: Type-C (5V DC)

Modem Ubiquiti UniFi UMR industrial-EU (LTE(4G) / UMTS / GSM / GPRS LTE Cat4)

Product reference: 26-810084693384

Type: Industrial modem
Model: UMR-Industrial-EU
Mobile technology: LTE (4G), UMTS, GSM, GPRS
LTE category: Cat4
WAN port: 1
LAN speed: 1000 Mbps
VPN support: Yes
Power: 22 dBm
WiFi standard: 802.11b/g/n (WiFi 4)
SIM support: Yes
GPS support: Yes
PoE: IN/OUT
Operating temperature: -40°C to 70°C
Protection class: IP66
USB connector: Type-C (5V DC)

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

218,34 €

Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

Home
Size Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3"), With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3"), With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Weight Device: 360 g (12.7 oz), Device with outdoor cover: 395 g (13.9 oz), DIN rail/wall mounts: 25 g (0.9 oz)
Housing material Polycarbonate, aluminum
Fastening material Wall/pole mount: polycarbonate, DIN rail mount: polycarbonate
Pole mounting diameter 1-2" on pipe outer diameter
Wind load 38.8 N at 200 km/h (8.7 lbf at 125 mph)
Weather resistance Device with outdoor cover: IP66
Control interface Ethernet, WiFi
Network interface (2) GbE RJ45 ports, LTE Category 4 radio, WiFi 4
PoE interface (1) PoE input, (1) PoE output* (Max. 10W) *Requires a PoE+ switch.
Power supply UniFi PoE switch (48—54V DC), USB Type-C (5V DC), 4-pin* ATX DC power socket (9—30V DC) *Pin 1 for Power + and Pin 2 for Ground -. Please refer to the Installation Guide for detailed power socket pinout.
Maximum power consumption 12.5W
SIM nano SIM (4FF)
LTE frequencies B1, B3, B7, B8, B20, B28
3G frequencies B1, B8
LTE throughput speed* Download 150 Mbps / Upload 50 Mbps *Speed depends on network coverage and performance at the device location.
WiFi standards 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
Maximum WiFi transmission power 22 dBm
WiFi MIMO 2x2
GPS Yes
Antenna SMA connectors (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx, (1) Mobile 2: SMA female connector, supports 1Rx only, (1) GPS: SMA female connector, (2) WiFi: RP-SMA female connectors
External antennas (2) Mobile/LTE antennas with SMA male connectors, (1) GPS antenna with SMA male connector, (2) WiFi antennas with RP-SMA male connectors
LED Status: blue/white
Button Factory reset
Installation DIN rail/wall/pole mount (Included)
Operating ambient temperature -40 to 70° C (-40 to 158° F)
Ambient humidity 5 to 95% non-condensing
