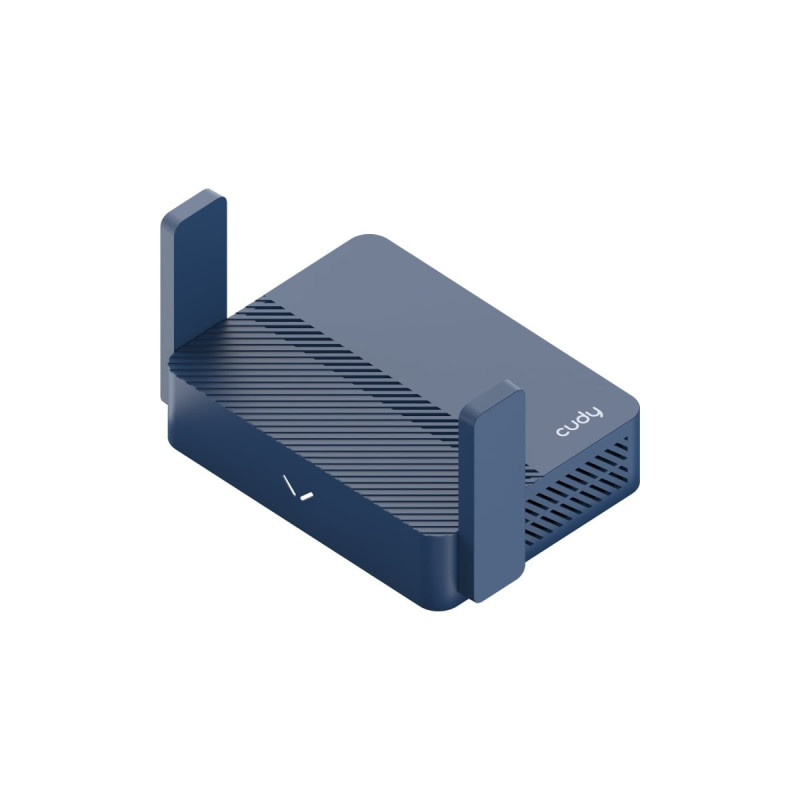

Mini router CUDY TR3000
Product reference: 26-6971690793050
  • Type: Router
  • Model: CUDY TR3000 1.0
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Ports: 2 x RJ45 (1 x 2.5 Gbps WAN; 1 x 1 Gbps LAN); 1 x USB-A 3.0
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • Recommended number of connected devices: 70 (max 512)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 180 m
  • Flash memory: 128MB NAND
  • DDR memory (RAM): 512MB DDR3
  • Power consumption: 4.2 W (max 11.5 W)
  • Power supply: 5V 3A DC (via USB-C connector)
Mini router CUDY TR3000

Mini router CUDY TR3000

Product reference: 26-6971690793050
  • Type: Router
  • Model: CUDY TR3000 1.0
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Ports: 2 x RJ45 (1 x 2.5 Gbps WAN; 1 x 1 Gbps LAN); 1 x USB-A 3.0
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • Recommended number of connected devices: 70 (max 512)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 180 m
  • Flash memory: 128MB NAND
  • DDR memory (RAM): 512MB DDR3
  • Power consumption: 4.2 W (max 11.5 W)
  • Power supply: 5V 3A DC (via USB-C connector)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
70,29 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model version TR3000 1.0
  • Processor 1.3 GHz Dual-Core, ARM Cortex-A53
  • Flash/ROM 128MB (1Gbit) NAND
  • DDR/RAM 512MB (4Gbit) DDR3
  • 5GHz Wi-Fi speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 2× Fixed, 1× Internal
  • Max. 5 GHz antenna gain 4.8 dBi
  • Max. 2.4 GHz antenna gain 3.9 dBi
  • FEM or PA/LNA 5 GHz: 3× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 180 m (591 ft)
  • Wall operation Two wooden walls < 10 cm (4"), One concrete wall < 20 cm (7") or two concrete walls < 10 cm (4")
  • 2.5G RJ45 Ports 1
  • Gigabit RJ45 Ports 1
  • Notes on Ethernet 2.5G port from WAN, Gigabit port from LAN
  • USB-A 3.0 Ports 1
  • LED indicators System
  • Physical buttons Reset Button, Configurable DIP Switch
  • Power input USB-C Port
  • Feeding methods DC/PD
  • DC Power 5V 3A, PD
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 5V 3A DC
  • Maximum energy consumption 11.5W
  • Standby power consumption 4.2W
  • Operating temperature 0 ~ 40 (32 ~ 104)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation Desktop
  • Dimensions 118×80×27.5 mm (4.65×3.15×1.08 in)
  • Product weight 160g (5.64oz)
  • Package contents TR3000, Power Adapter, Ethernet Cable, Installation Guide

Manufacturer codeCUDYTR3000
ManufacturerCudi
Weight0.289 kg
