MikroTik LHG XL 5 ax , Client device , LHG-5axD-XL, WiFi 6, 1x RJ45 1000Mb / s, 27 dBi
Product reference: 3-4752224009661

MikroTik LHG XL 5 ax | Client device | LHG-5axD-XL, WiFi 6, 1x RJ45 1000Mb/s, 27 dBi

MikroTik LHG XL 5 ax , Client device , LHG-5axD-XL, WiFi 6, 1x RJ45 1000Mb / s, 27 dBi

Product reference: 3-4752224009661

MikroTik LHG XL 5 ax | Client device | LHG-5axD-XL, WiFi 6, 1x RJ45 1000Mb/s, 27 dBi

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
108,50
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!
Fill in the required fields*
Operating temperature (TT)-40 - 70 °C
Maximum data transfer rate1200.0000
AC adapter includedYes
Antenna typeInternal
Receiver sensitivity-96, -80, -75, -70, -67
Product colourwhite
Networking standardsieee_802_11a, ieee_802_11ac, ieee_802_11ax, ieee_802_11n
Antenna gain level (max)24.5000
2.4 GHzNo
5GHzYes
PoE adapter includedYes
DC-in jackYes
CertificationCE, FCC, IC, EAC, ROHS
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) type supportedpassive_poe
Flash memory128.0000
Internal memory256.0000
Built-in processorYes
Placementpole
Mounting kitYes
Power consumption (max)5.0000

MikroTik LHG XL 5 ax - Wi-Fi Performance 6 at Long Range


The MikroTik LHG XL 5 ax is an advanced client device that supports Wi-Fi 6 (Wireless Fidelity 6 - the modern wireless data transmission standard) and is ideal for point-to-point applications. With a 27 dBi antenna gain and 5GHz technology, the LHG XL 5 ax provides stable connections over long distances, offering performance and speed unattainable by older models. It is the ideal device for data exchange in demanding environments such as ISP (Internet Service Provider) networks and other industrial applications.


Mikrotik LHG 5 ax antenna set in two sizes, with visible Mikrotik logo and honeycomb structure

High Performance with Wi-Fi 6


The MikroTik LHG XL 5 ax supports Wi-Fi 6, which provides higher transmission speeds and better bandwidth management efficiency. This makes the device ideal for tight spaces with multiple devices, providing fast and stable connections. Wi-Fi 6 also enables better performance in crowded networks, which is crucial for heavy Internet use.

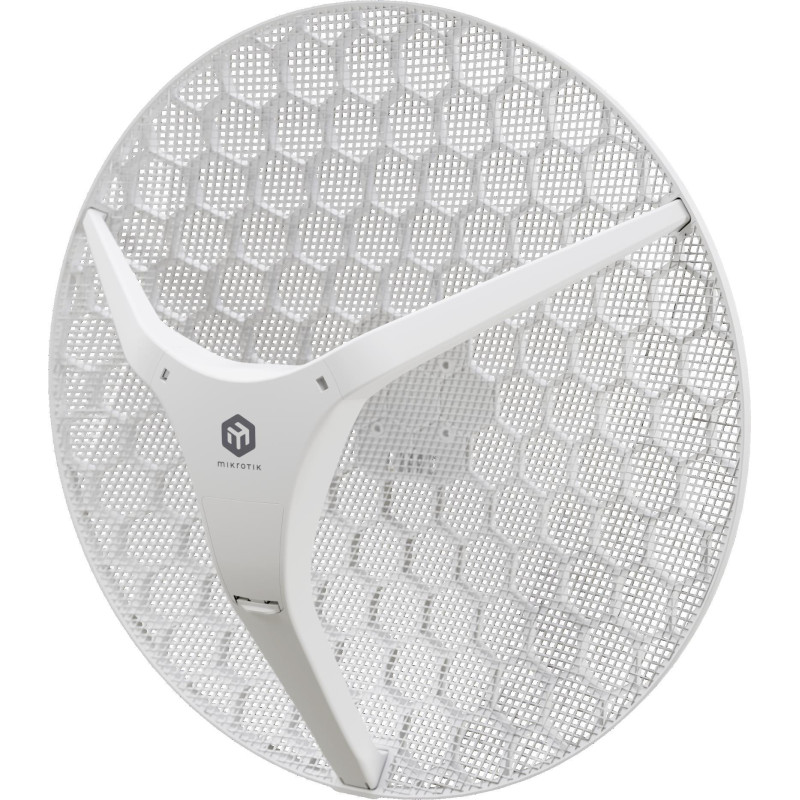

Mikrotik LHG 5 ax antenna, visible from the side, with honeycomb design, white, with Mikrotik logo on the central part

Antenna Gain of 27 dBi and Long Range


With an antenna gain of 27 dBi, the MikroTik LHG XL 5 ax enables point-to-point connections over long distances, providing a stable signal for up to 30 km. This makes the device ideal for long-range connections in wireless networks where high signal strength is required. The antenna gain also enhances signal amplification, allowing for stable connections even in difficult conditions


A close-up of the Mikrotik LHG 5 ax antenna, a view of the panel with the Mikrotik logo in the center, with the honeycomb structure clearly visible.

PoE Power and Ease of Installation


The MikroTik LHG XL 5 ax supports PoE (Power over Ethernet), which simplifies installation and eliminates the need for additional power cables. With this feature, the device can be easily installed in a variety of locations, including high points such as building rooftops. PoE makes the MikroTik LHG XL 5 ax easy to install and capable of operating in a variety of network conditions.


Mikrotik LHG 5 ax antenna, seen from the front, with a white honeycomb cover, which is part of the radio system

Modern Architecture and Performance


The MikroTik LHG XL 5 ax is equipped with the IPQ-5010 processor, which provides performance and fast processing. With 256 MB of RAM and 128 MB of flash memory, the device ensures smooth operation even in heavily used networks. RouterOS v7 allows for easy configuration and management of the device, and the high-throughput makes the device suitable for many network applications.


Block diagram of the LHG XL 5 ax device showing connections and components such as PoE port, 1 Gbps Ethernet port, IPQ-5010 SoC CPU (800 MHz, 2 cores), 256 MB RAM, 128 MB NAND, 5 GHz 802.11ax WLAN, and amplifier
