Access Point, MIKROTIK, 54 Mbit / s, 5xLAN ports, RBOMNITIKPG-5HACD

B PopisB
System solutions for platforms of the company MikroTik for providers of wireless internet connection.
New improved version of the popular product line OmniTik.

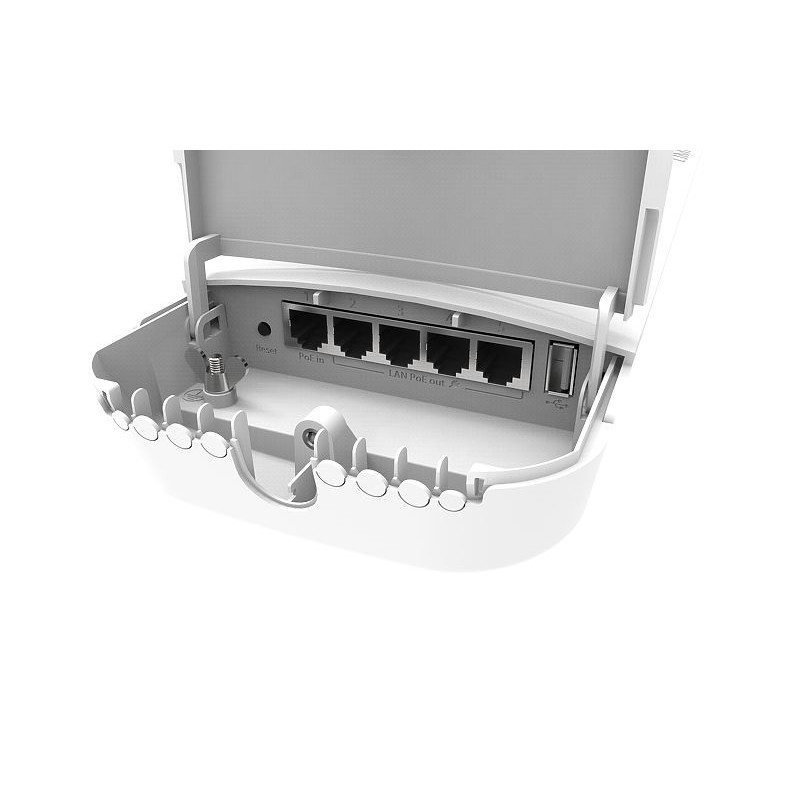

OmniTik 5 ac has a 5x Gigabit Ethernet port and supports the fast standard 802.11ac, if it is equipped with a powerful 720MHz processor and 128MB RAM.
It offers high power (1300 mW) with an integrated bezdrivým modul 802.11a/n/ac Dual Chain, which supports the standard 802.11ac has backward compatibility with devices 802.11a/n.

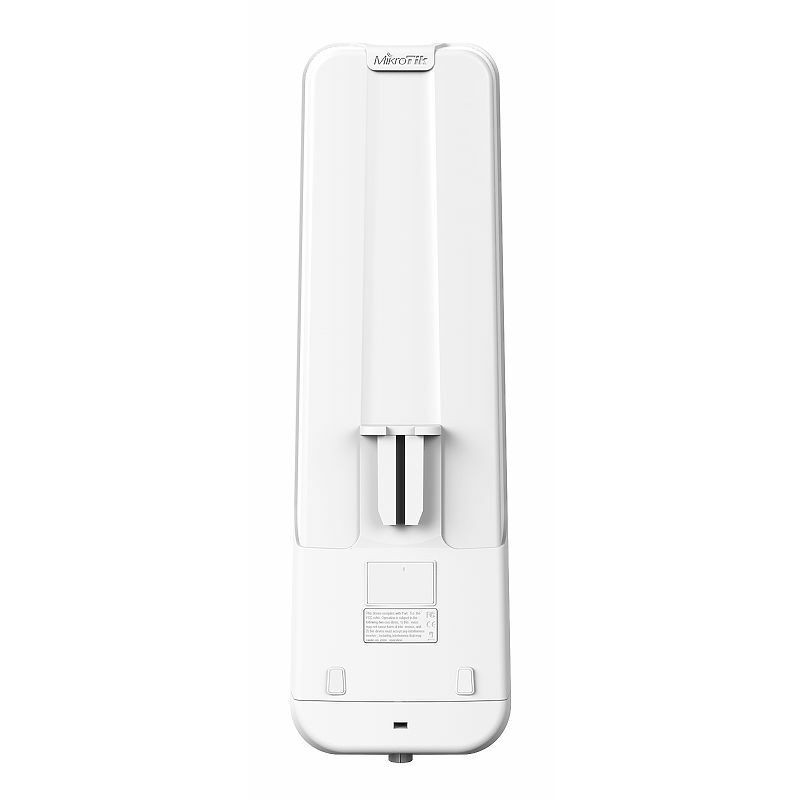

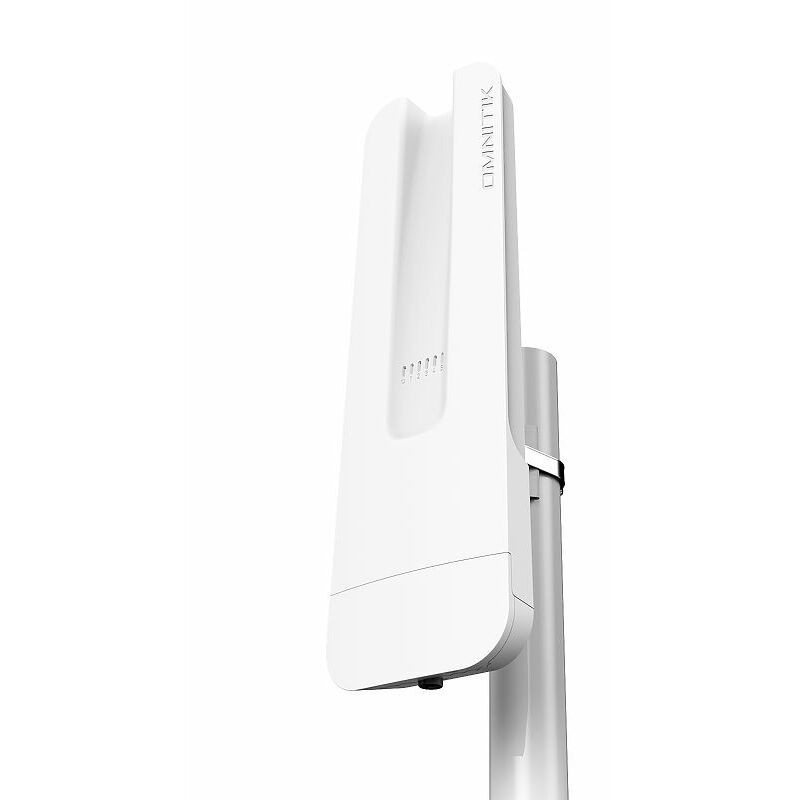

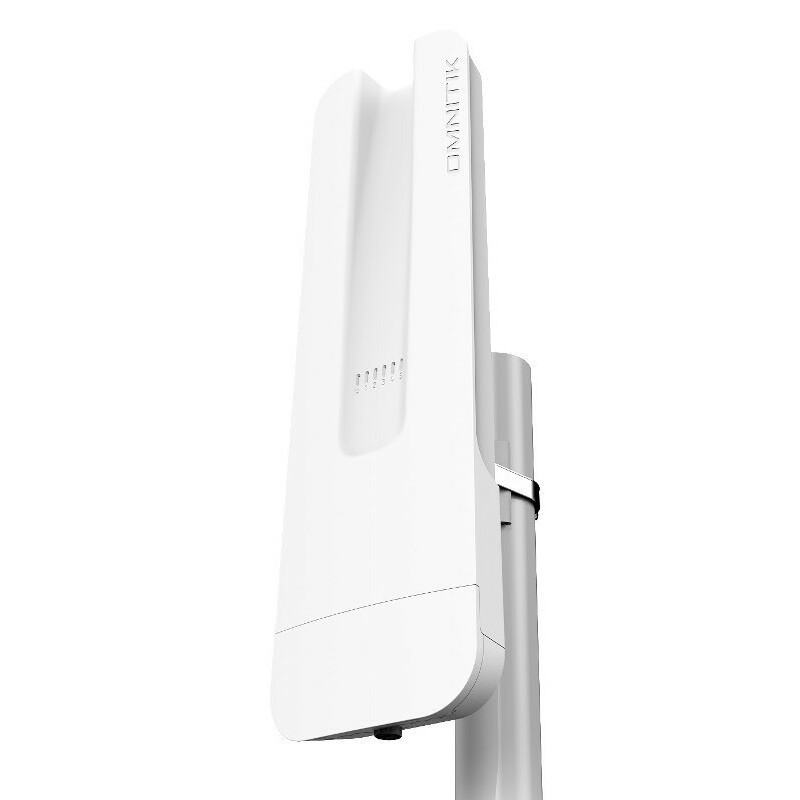

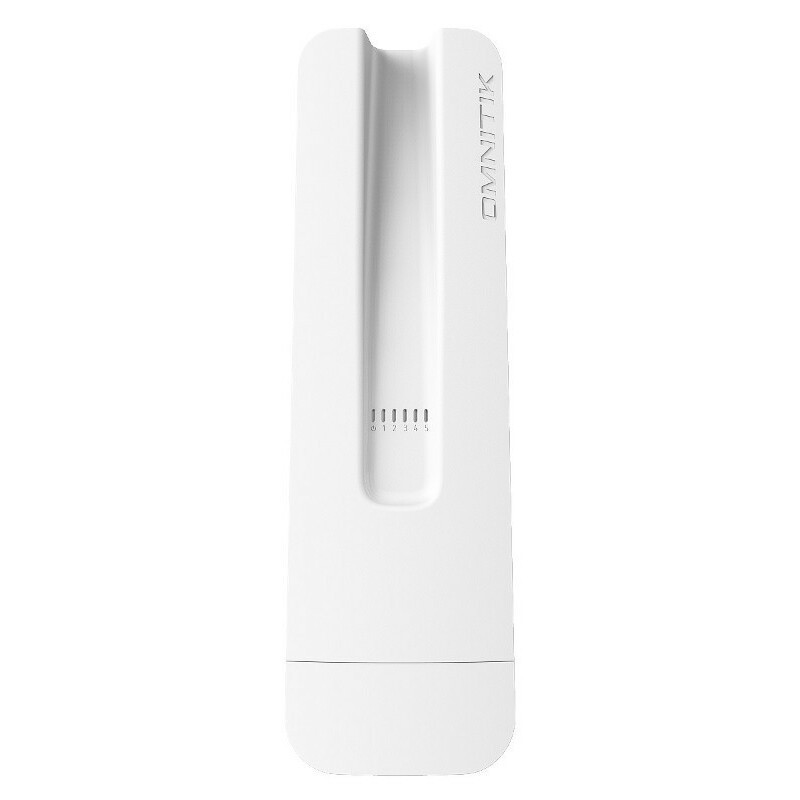

New version of the waterproof outer cover with integrated two 5 GHz 7.5 dBi omnidirectional antennas.
The device supports PoE power supply, and it is passive, as well as the 802.3at/af standard (in the range of 12 V - 57 V) on Ethernet ports 2 to 5.
Ethernet ports 2-5 can power the connected active elements with the same power that OmniTik is connected to.
When using a 48 V power supply, it is supported 802.3af/at mobého napájať eg. IP cameras.

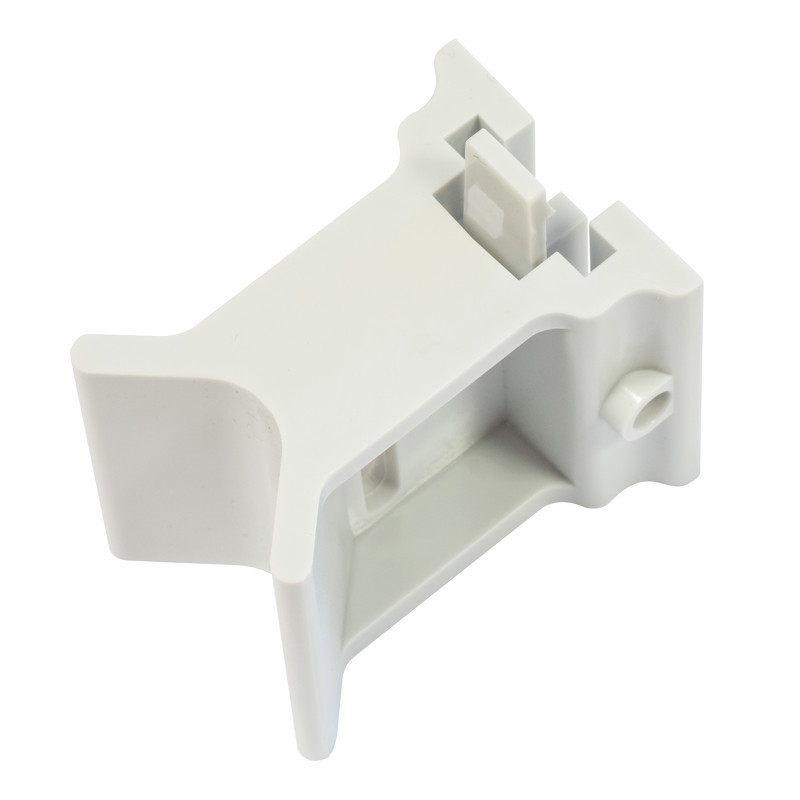

The delivery includes a power supply, PoE injector and mounting accessories.
Technical specifications
CPU: QCA9557 720 MHz
Memory: 128 MB
Type storage: Flash
Size storage: 16 MB
Ethernet: Five ports Fast Ethernet 10/100/1000 Mbit/ss functions Auto-MDI/X
Wireless connection: QCA9892, integrated wireless connection 5 GHz 802.11ac, dual chain
Frequency range: 5150 MHz-5875 MHz
Power supply options: PoE input, pasívne 12-57 V
Support PoE output: Eth2 - Eth5 Maximum output na port: 1 A (if input < 30 V), 0.5 A (if input gt; 30 V) Spotreba: 18 W
Zisk anténny: 7.5 dBi
Wide beam antenna: 360°
USB: 1x USB typu A
Dimensions: 416 x 129 x 58 mm
Prevádzková temperature: -40 °C .. +70 °C testované
LED diódy: 10x LED diódy
Level of license: 4
Operating system: RouterOS
Upozornenie
The manufacturer MIKROTIK does not guarantee that the device will be damaged by the device. alebo prepäťovým stipskám na napájacom vedení.
For external installations, it is necessary to use a thin cable (FTP/SFTP), appropriate surge protectors (if they are integrated) and ensure proper and effective grounding.
