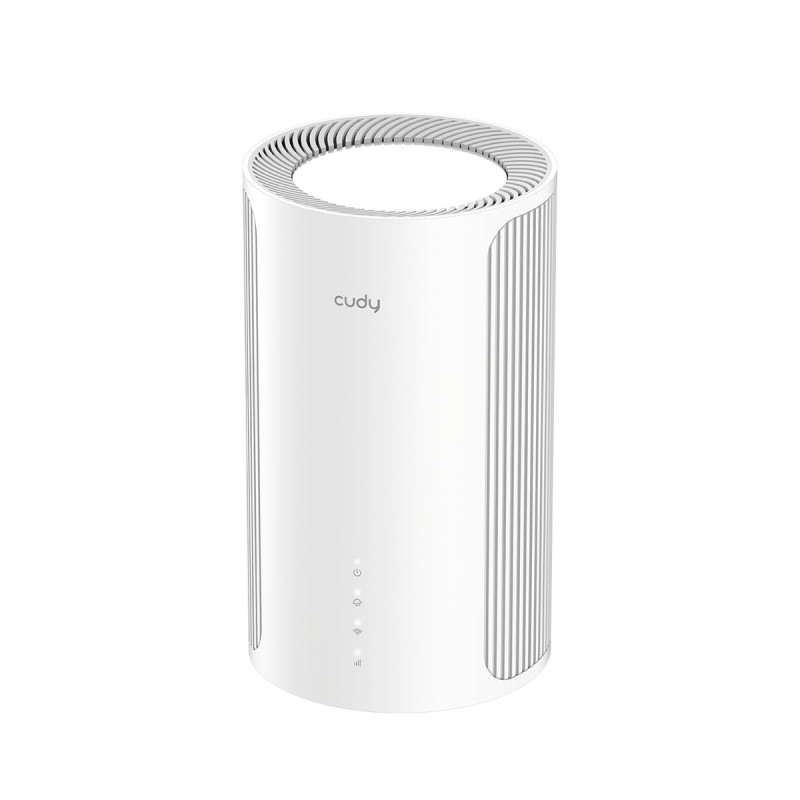

5G router CUDY P4 (Wi-Fi 6)
Product reference: 26-6971690793562
  • Type: Router
  • Model: CUDY P4 1.0
  • Mobile connectivity: 5G Rel. 16 (DL 4G Cat 19; UL 4G Cat 18)
  • Wi-Fi standard: Wi-Fi 6
  • SIM card slot: 1 x nano SIM
  • Ports: 3 x 1Gbps RJ45
  • Max download speed: 3.4 Gbps
  • Max. upload speed: 900 Mbps
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 21.7 W
  • Power supply: 12V 2.5A DC
  • Operating temperature: 0°C to 40°C
5G router CUDY P4 (Wi-Fi 6)

5G router CUDY P4 (Wi-Fi 6)

Product reference: 26-6971690793562
  • Type: Router
  • Model: CUDY P4 1.0
  • Mobile connectivity: 5G Rel. 16 (DL 4G Cat 19; UL 4G Cat 18)
  • Wi-Fi standard: Wi-Fi 6
  • SIM card slot: 1 x nano SIM
  • Ports: 3 x 1Gbps RJ45
  • Max download speed: 3.4 Gbps
  • Max. upload speed: 900 Mbps
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 21.7 W
  • Power supply: 12V 2.5A DC
  • Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
262,68 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Model version P4 1.0
  • CPU information 1.0 GHz Dual-core, ARM Cortex-A53
  • Flash/ROM 128MB (1Gbit) NAND
  • DDR / RAM 512 MB (4 Gbit) DDR3
  • Mobile communication standards 5G Rel. 16, DL 4G Cat. 19 / UL 4G Cat. 18
  • Mobile communication antennas 6× Internal, 2× SMA Connectors for Customized Antennas
  • Detachable Cellular Antennas Connector SMA Female
  • SIM card options 1× Nano SIM Slot, eSIM (optional)
  • Available versions EU
  • EU Version Cellular Region Europe, Middle East, Africa, Asia-Pacific (Excl. JP, CN), Brazil
  • Max DL Speed 3.4 Gbps (NSA), 2.4 Gbps (SA)
  • Max UL Speed 550 Mbps (NSA), 900 Mbps (SA)
  • Advanced Cellular Features DL/UL 4CA, DL 4×4, UL 2×2 MIMO
  • Cellular Bands 5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78, LTE-FDD: B1/3/5/7/8/20/28/32/71, LTE-TDD: B38/40/41/42/43/71, WCDMA: B1/5/8
  • 5GHz Wi-Fi speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas Internal
  • Max. 5 GHz antenna gain 6.78 dBi
  • Max. 2.4 GHz antenna gain 4.19 dBi
  • Beamforming True
  • FEM or PA/LNA 5 GHz: 2× External, 2.4 GHz: 2× External
  • Operating range Max: 170 m (558 ft) (Indoor WiFi range varies depending on layout and wall materials)
  • Wall operation Two wooden walls lt;10 cm (4''), One concrete wall lt;20 cm (7'')
  • Physical buttons WPS Button, Reset Button
  • Gigabit RJ45 Ports 3
  • Notes on Ethernet 1× WAN/LAN configurable port, 2× LAN ports
  • LED indicators Power, Internet, Wi-Fi, Cellular
  • Power input DC Jack
  • Feeding methods DC
  • DC Power 12V 2.5A
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 2.5A DC
  • Maximum energy consumption 21.7W
  • EMS Protection ESD: Contact: 4kV; Air: 8kV
  • Operating temperature 0 ~ 40 (32 ~ 104)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Dimensions Φ116×202 mm (Φ4.57×7.95 inches)
  • Product weight 656.0 g (23.14 oz.)
  • Installation Type Desktop
  • Package contents P4, Power Adapter, Ethernet Cable, Installation Guide

ManufacturerCudy
Manufacturer codeCUDYP4
Weight0.806 kg
