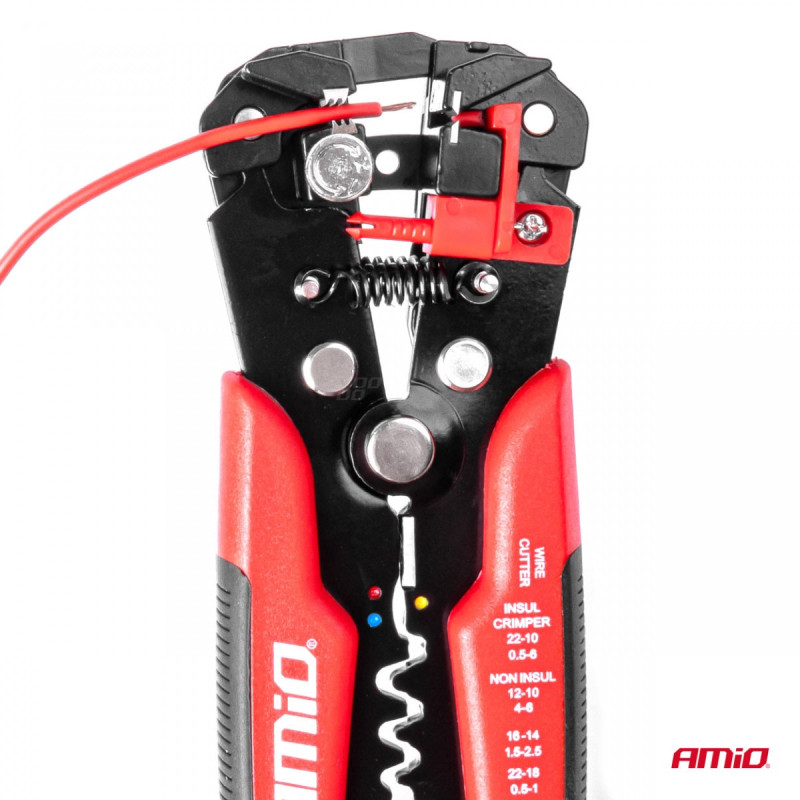

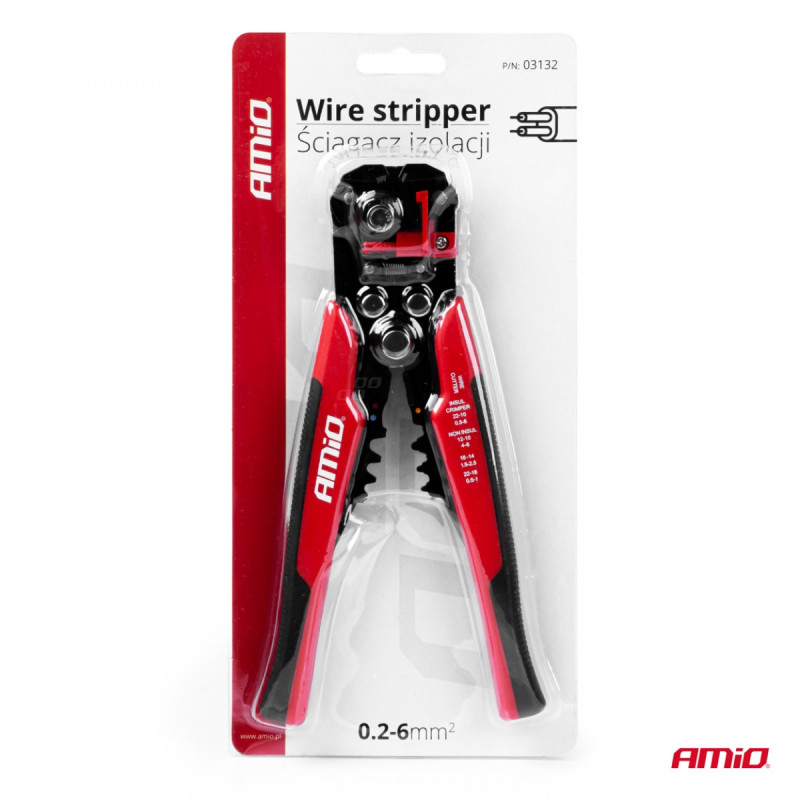

Wire stripper, crimper pliers, AMIO-03132

A device designed for stripping insulation from wires.

Crimping range: 0.2 - 6.0 mm² (10 - 24 AWG)

• multifunctional, reinforced device with a rubberized handle and hardened blades
• mechanism: front, automatic
• in the process of stripping insulation, it automatically adapts to the cross-section of the wire being processed
• it also has a cutter and a tip press
• the puller has an adjustable length of the section to be isolated
• length: 205 mm
• weight: 0.30 kg

Crimping connector terminals:

• insulated: 0.5 - 6 mm² (22-10 AWG),
• uninsulated: 4 - 6 mm² (12-10 AWG), 1.5 - 2.5 mm² (16-14 AWG), 05 - 1 mm² (22-18 AWG).

HIGH QUALITY WORKMANSHIP

AMiO AUTOMATIC WIRE STRIPPER

• WIRE STRIPPER - This practical tool allows for quick and precise removal of insulation from single-core or multi-core cables. To strip the insulation, insert the wire into the jaws so that it rests evenly on the tool, then squeeze the handle.

• WIRE CUTTER - Another function of the stripper is cutting wires. The 11 mm blade is located between the tool's handles. To cut a wire of similar or smaller width, simply place it between the blades and squeeze firmly.

• CONNECTOR TERMINAL PRESS - This device can be used to crimp insulated and uninsulated connector terminals on wires with a cross-section ranging from 1.5mm² to 6mm². Simply insert the wire with the stripped end into the connector terminal, then place it in the designated crimping location.

• PRESSURE FORCE ADJUSTMENT + LIMIT - The device has a knob located under the jaws. You can use it to adjust the pressure applied to the insulation, so you don't have to worry about damaging the wire while working.
