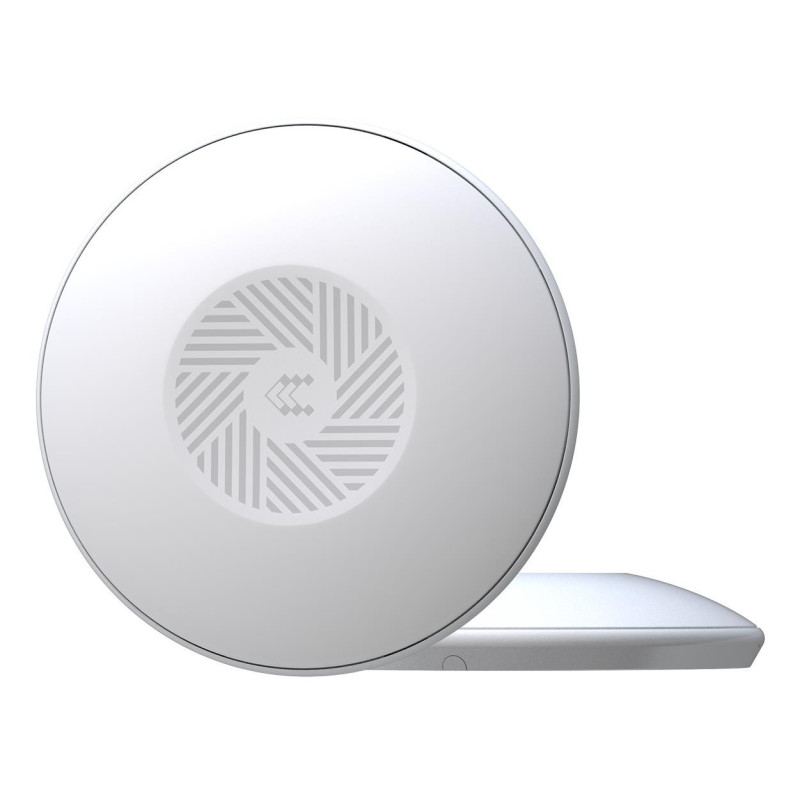

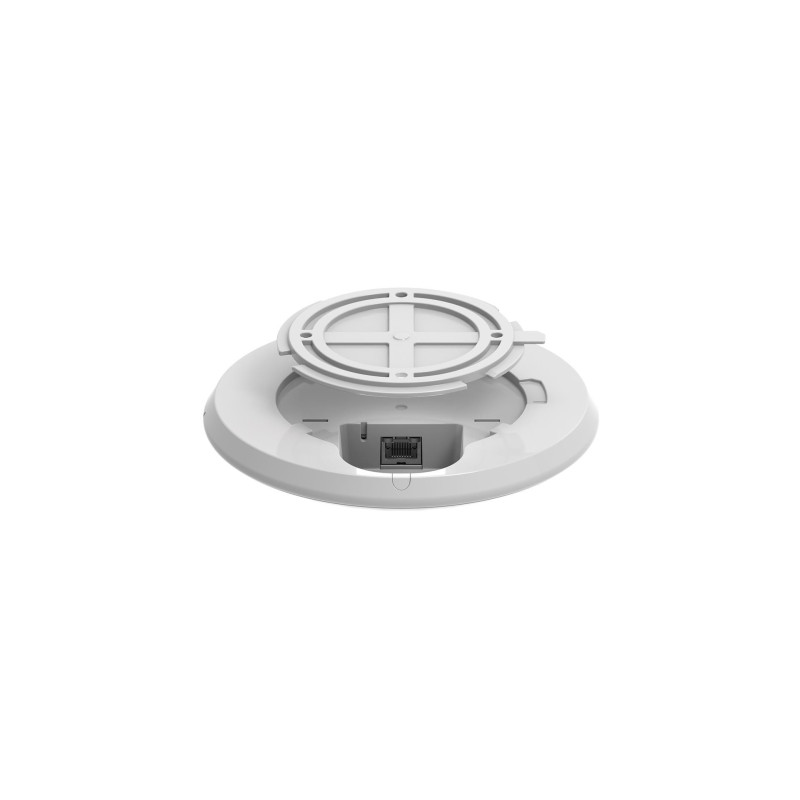

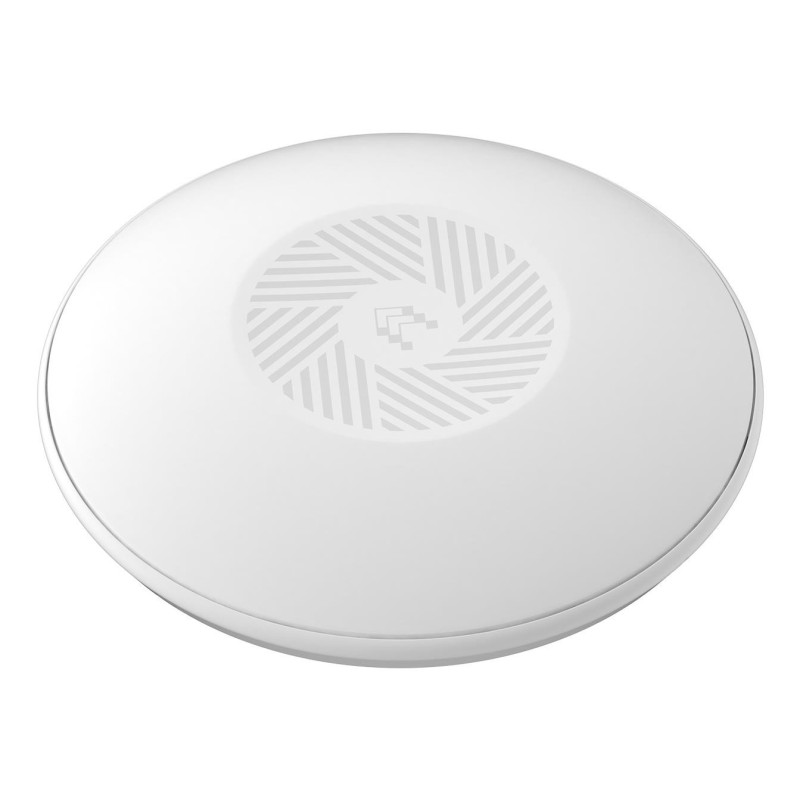

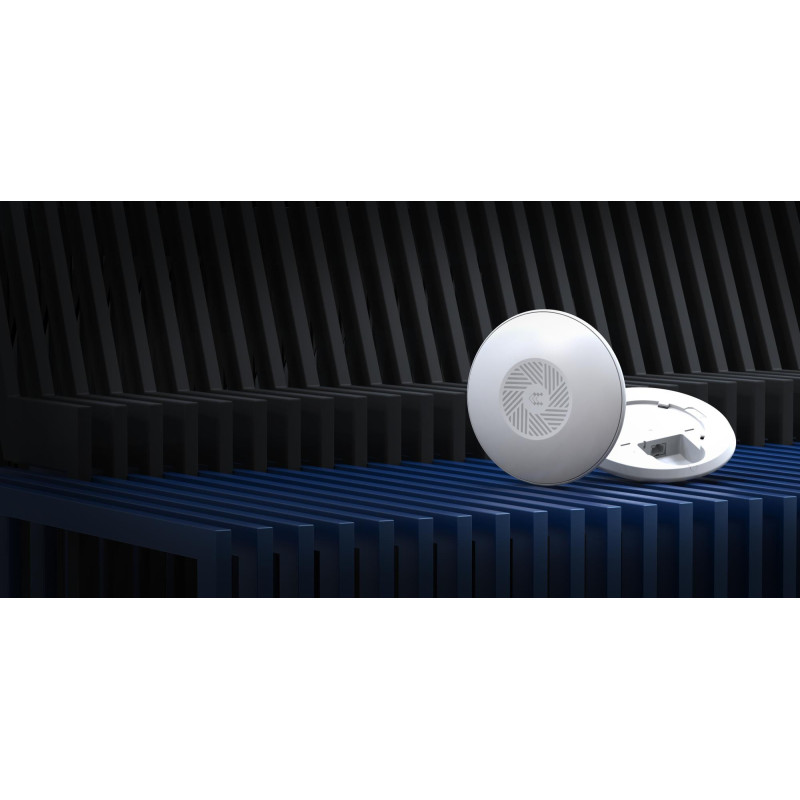

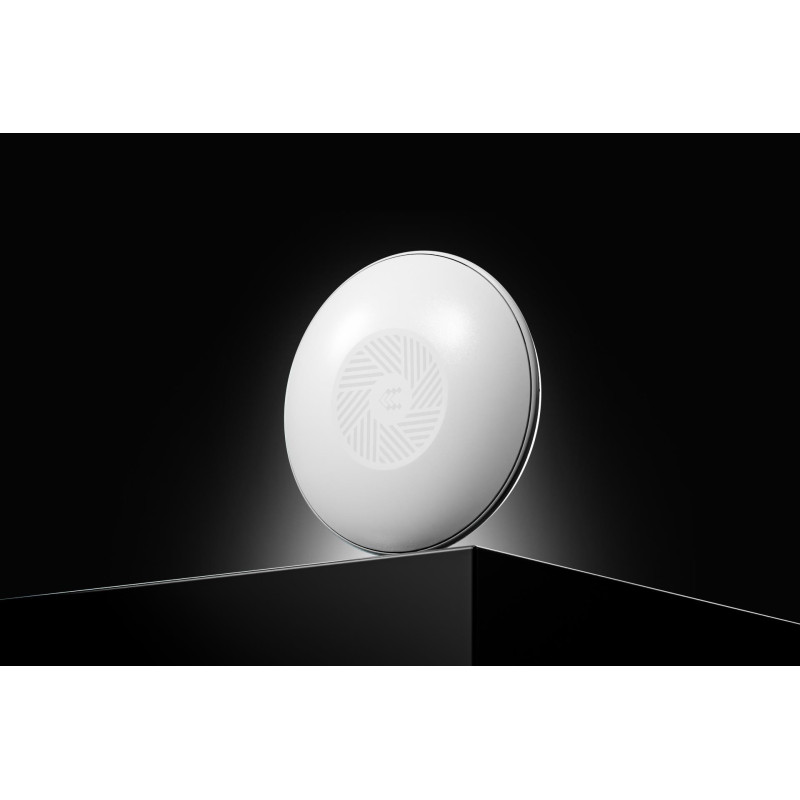

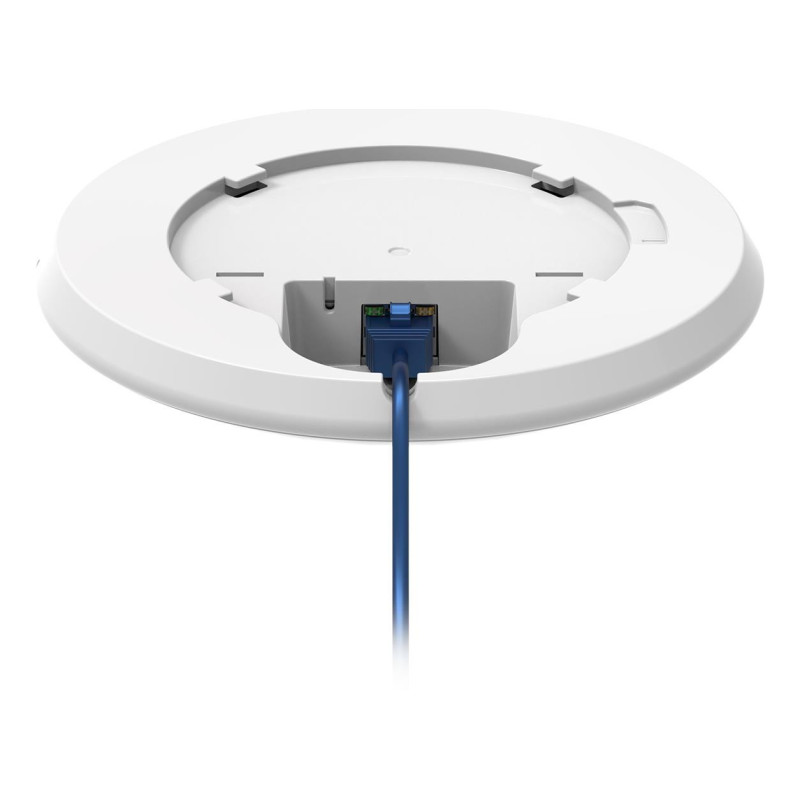

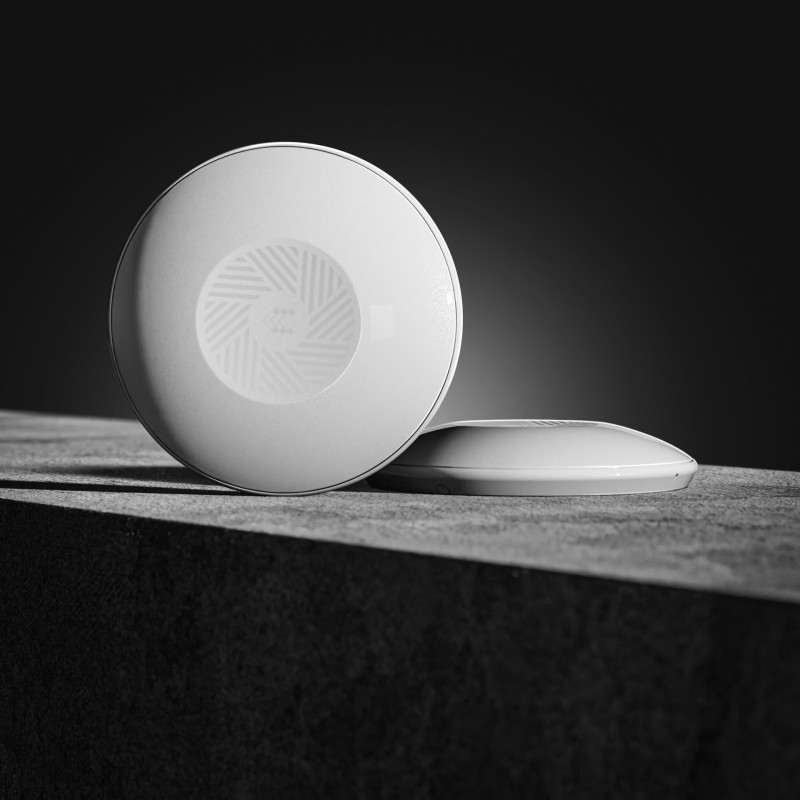

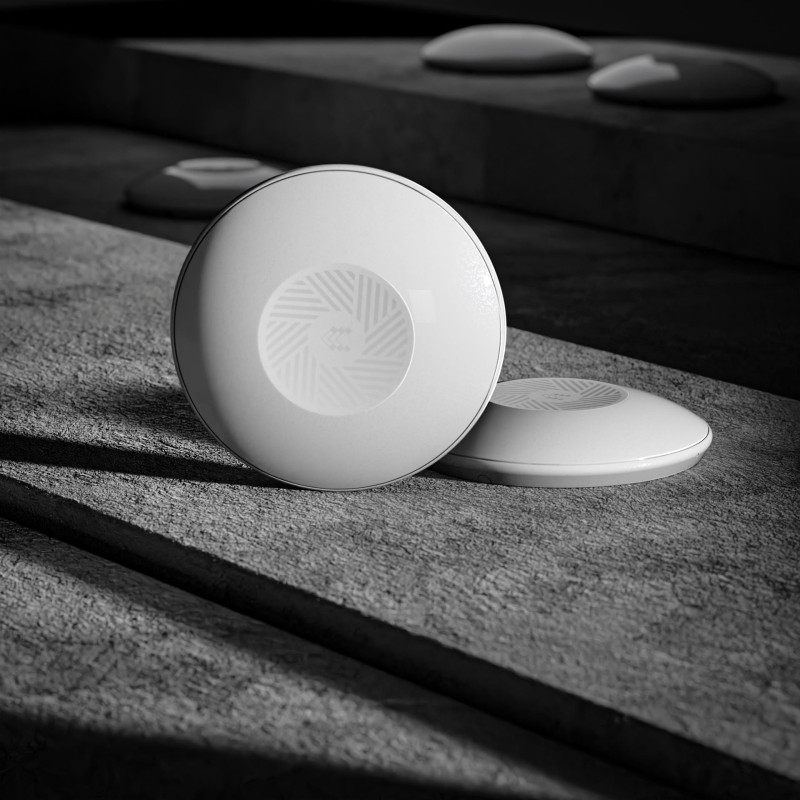

TAP100 is the first-ever Teltonika Networks Access Point, perfect for strengthening Wi-Fi coverage in small enterprise and commercial spaces. This PoE-in access point can be powered by active PoE devices via its RJ45 port and was designed with simplicity and ease of installation in mind
| 2,4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Antenna type | Internal |
| Support for security algorithms | AES-CCMP/TKIP/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-PSK |
| Reset button | Yes |
| Height | 158 mm |
| Gross weight | 0.243 kg |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature range (TT) | -40 - 75 °C |
| DC voltage range | 44 - 57 V |
| Maximum data transfer speed | 300 Mbit/s |
| Ethernet LAN data transfer rate | 10/100 Mbit/s |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Firmware improvement | Yes |
| Flash memory | 16 MB |
| Power consumption (max.) | 2 In |
| Length | 30 mm |
| Integrated processor | Yes |
| Cable technology | 10/100Base-T(X) |
| Quantity per package | 1 pc |
| Housing material | Plastic |
| LED indicators | Energy |
| MAC address filtering | Yes |
| Power over Ethernet (PoE) | Yes |
| Model | TAP100 |
| Model name | TAP100001000 |

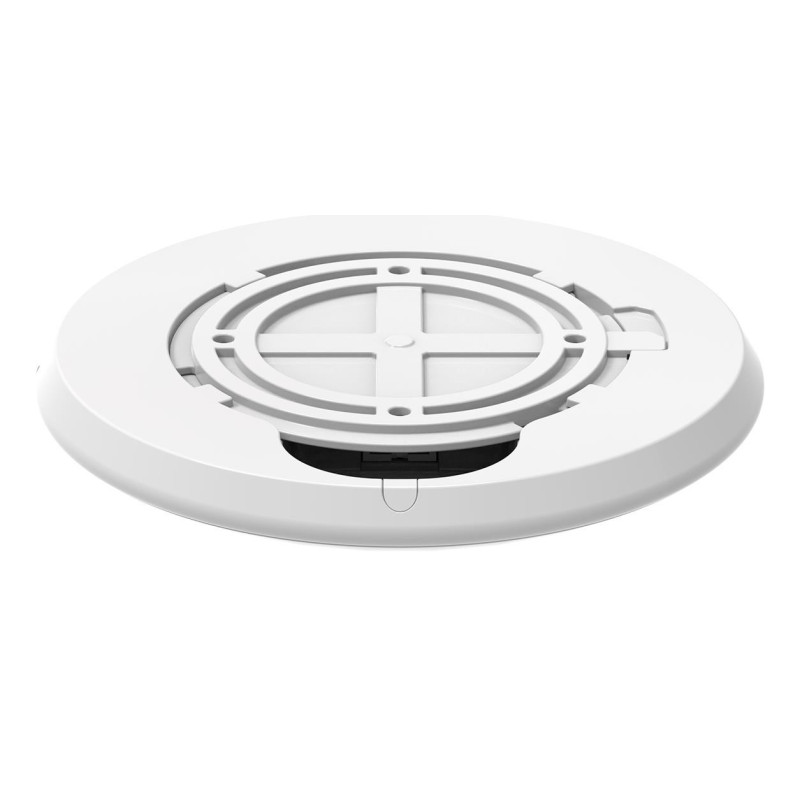

| Mounting kit | Yes |
| Net weight | 0.19 kg |
| Supported Power over Ethernet (PoE) type | Active PoE |
| Width | 158 mm |
| Processor frequency | 580 MHz |
| Product color | White |
| Certification | IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 EN IEC 62311:2020 EN 300 328 V2.2.2 CE, UKCA, CB, FCC, IC, WEEE |
| Shipping Box Depth | 37 cm |
| Shipping Box Height | 20 cm |
| Shipping Box Weight | 4.38 kg |
| Shipping Box Width | 33 cm |
| Summary | Teltonika · Accesspoint· TAP100· 2x1· Wi-Fi 4· 300Mbit· 1x 10/100· 15W PoE - Access Point - 0,1 Gbps. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES-CCMP, TKIP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 2 W |
| Weight | 190 g |
| Placement | Ceiling,Wall |
| International Protection (IP) Code | IP30 |
| Network standards | IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.11r/IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.165 |
| Unit Ugly Volume | 0.001357 cubm |
| Vendor Homepage | https://teltonika-networks.com/products/access-points/tap100 |
| Internal memory | 64 MB |
| Unit height | 3.5 cm |
| Unit depth | 17.5 cm |
| Unit width | 16.5 cm |
| Number of units per shipping box | 18 |
| VLAN support | Yes |
| WAN doors | Ethernet (RJ-45) |
| Web-based management | Yes |
| Wi-Fi roaming | Yes |
