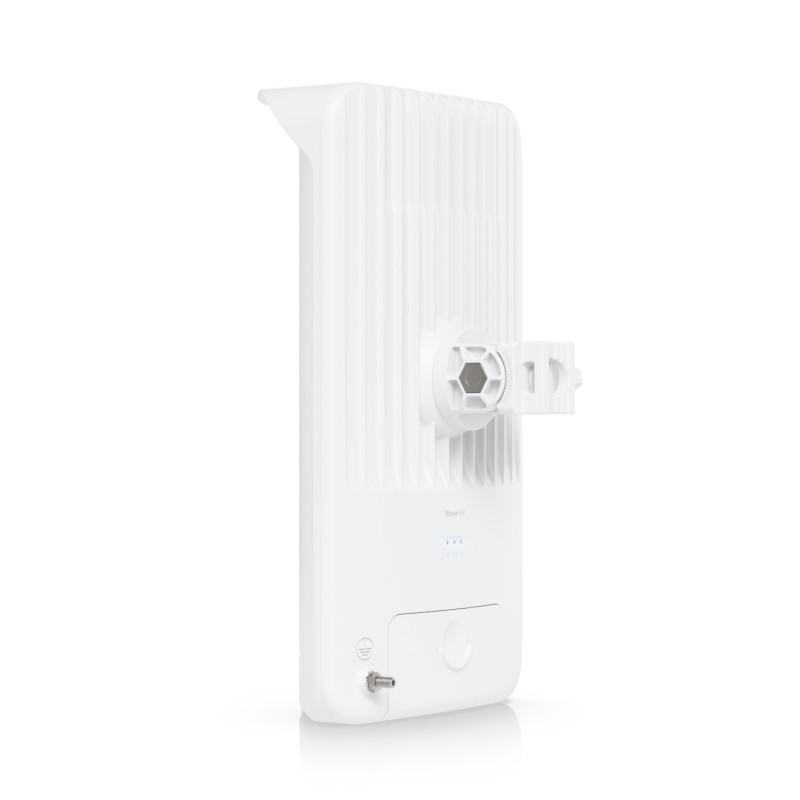

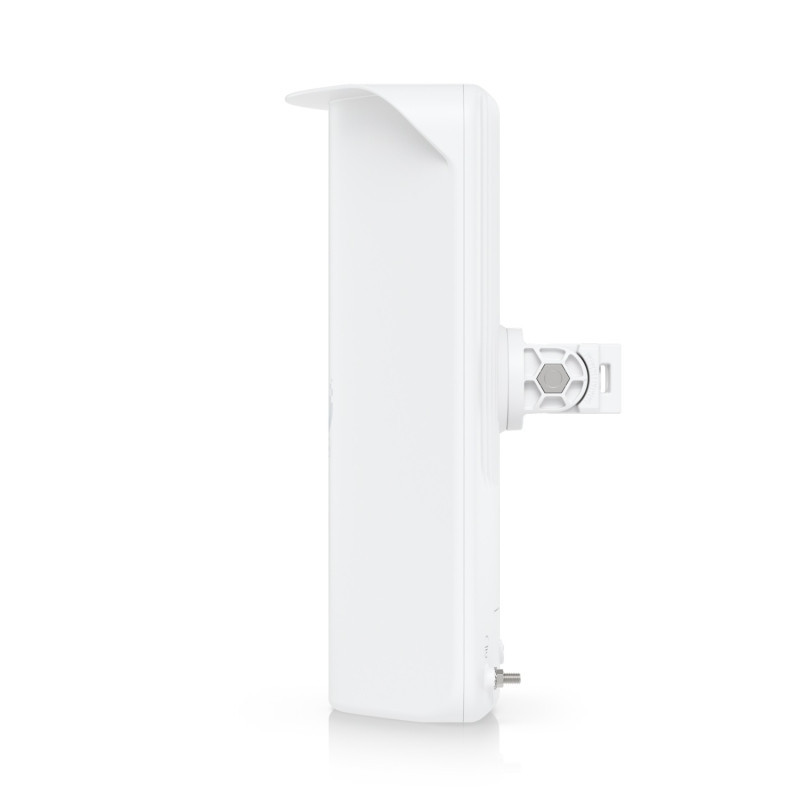

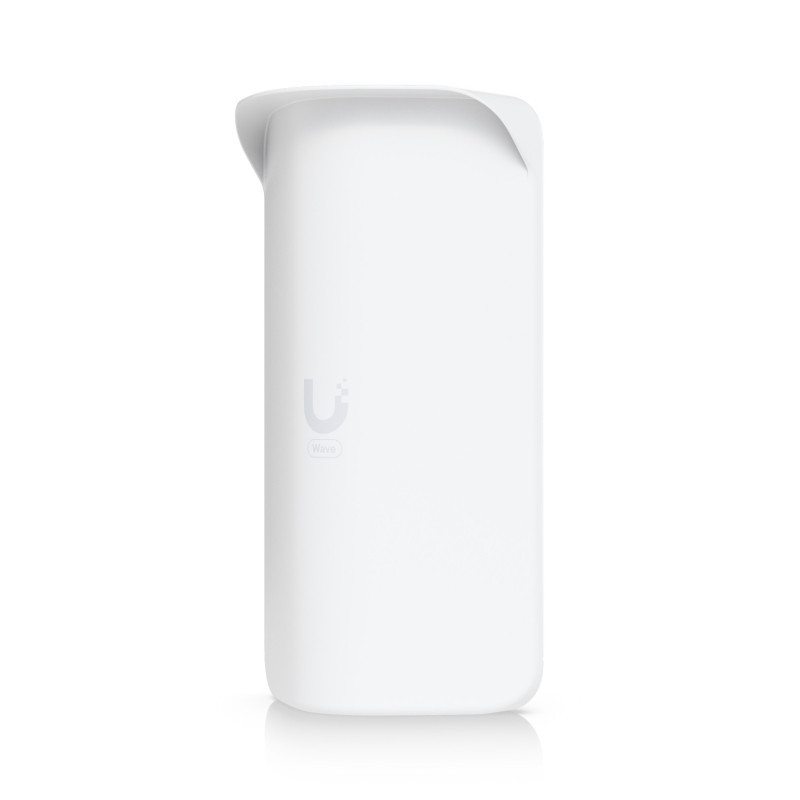

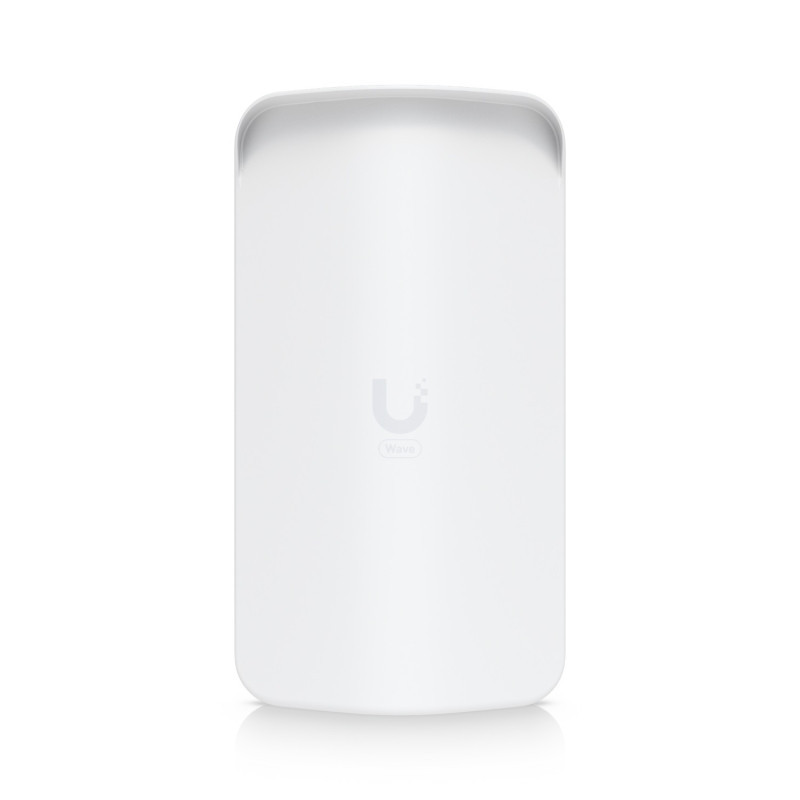

UBIQUITI Wave Access Point Gen2

High Performance
The Ubiquiti Wave AP Gen2 is a high-performance 60 GHz PtMP access point designed to deliver ultra-fast and reliable wireless connectivity in urban and high-density environments. Leveraging the 802.11ay standard, the Wave AP Gen2 supports 60 GHz long-range communications with ultra-low latency and interference-free operation. It delivers total throughput of up to 5.4 Gbps and can serve up to 15 Wave Long-Range or Wave Nano stations simultaneously, making it an ideal solution for ISPs and enterprise networks. An integrated 5 GHz radio provides backup connectivity to ensure link continuity during rain fade or obstructions. With its built-in GPS and Bluetooth, deployment and synchronization are streamlined. The AP is housed in a durable outdoor enclosure (IPX6-rated), designed to withstand harsh environmental conditions while ensuring long-term performance stability.

Next-Gen Scalability
Engineered for scalability, the Wave AP Gen2 features Ubiquiti's proprietary Wave technology, enabling high-speed multipoint connections across line-of-sight (LOS) and near-line-of-sight (nLOS) scenarios. With beamforming technology and automatic beam steering, the AP ensures highly focused links, improving signal strength and efficiency even in complex environments. Thanks to the Precision Alignment Mount, the Wave AP Gen2 can be installed easily and aimed precisely for optimal coverage. The unit supports 1x 2.5GbE PoE In port, compliant with 802.3af/at, and draws a maximum of 18.5W. Its MU-MIMO capability ensures simultaneous high-throughput performance for multiple stations. Whether expanding broadband access in urban zones or connecting campus buildings, the Wave AP Gen2 meets the needs of service providers and network architects seeking robust, high-speed wireless distribution.

Advanced Management
The Wave AP Gen2 is managed through the intuitive UISP platform, offering centralized control, real-time performance monitoring, firmware updates, and device configuration. UISP's web interface and mobile app simplify onboarding and ongoing management, allowing for quick network adjustments and performance optimizations. The access point includes a built-in LED alignment indicator, assisting installers during setup for precise targeting. Its aesthetic, compact form factor allows for discreet mounting on rooftops or poles, maintaining visual appeal in urban deployments. The device's aluminum housing offers excellent heat dissipation, supporting extended temperature ranges and continuous outdoor operation. Whether part of a large-scale Wave deployment or a targeted high-throughput link, the Wave AP Gen2 offers enterprise-grade performance with ease of use and installation, making it a future-proof solution for modern wireless infrastructure.

Dimensions: 158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")
Weight: 1.5 kg (3.3 lb)
Enclosure Material: UV stabilized polycarbonate, aluminum alloy
Pole Mount Diameter: 25.4 to 60 mm (1 to 2.4")
Wind Loading: 109.8 N at 200 km/h (25 lbf at 125 mph)
Weatherproofing: IPX6

Hardware

Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory: 512 MB
Network Interface:
(1) 2.5GbE RJ45 port
(1) 10G SFP+ port
Max. Power Consumption: 24W
Power Method:
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Supported Voltage Range:
44-54V DC
22-27V DC
Power Supply: 48V DC, 0.65A 2.5 GbE PoE adapter (Included)
GPS: ✓
Buttons: (1) Factory reset
LEDs:
Power:
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet:
Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected
GPS: Blue: receiving at least (4) GPS satellite signal
Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity: 5 to 95% non-condensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE

Software

Operating Modes: PtMP access point
Ubiquiti Specific Features:
Discovery Protocol: ✓
Services:
UISP: ✓
Ping Watchdog: ✓
NTP Client: ✓
SNMP: ✓
Tools:
Cable Test: ✓
Wave AI: ✓
Wave Technology: ✓

Utilities:
Antenna Alignment: ✓
Ping: ✓
Site Survey: ✓
Speed ​​Test: ✓
Traceroute: ✓
Network: Bridge Mode
Application Requirements:
UISP: Version 2.4.205 and later

System

Total Throughput: 5.4 Gbps
Supported Clients: 31
Max. Range:
Connecting to a Wave Pro: up to 6 km
Connecting to a Wave Long-Range: up to 6 km
Connecting to a Wave Nano: up to 4 km
Connecting to a Wave Pico: up to 0.9 km
Encryption: WPA2-PSK (AES)

Radio Frequency

Operating Frequency:
Worldwide: 57-71 GHz
Channel Bandwidth: 2160, 1080, 540 MHz
Operating Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation: 16QAM, QPSK
Antenna Gain: 20 dBi
Polarization: Vertically-Linear
Beamwidth:
Azimuth: 3 dB 90°
Elevation: 3 dB 7°
Electrical Downtilt: 0°

Radio Frequency (Back-Up)

WiFi Standard: 802.11ax (WiFi 6)
Operating Frequency:
US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide: 5150 - 5875 MHz
Channel Bandwidth: 20, 40, 80 MHz
Modulation: BPSK (1 2), QPSK (1 2), QPSK (3 4), 16QAM (1 2), 16QAM (3 4), 64QAM (2 3), 64QAM (3 4), 64QAM (5 6), 256QAM (3 4), 256QAM (5 6), 1024QAM (3 4), 1024QAM (5 6)
Antenna Gain: 13 dBi
Polarization: Dual-Linear
Beamwidth: Azimuth: 6 dB 95° Elevation: 6 dB 25°
Cross-Pol Isolation: 18 dB
Electrical Downtilt: 0°
