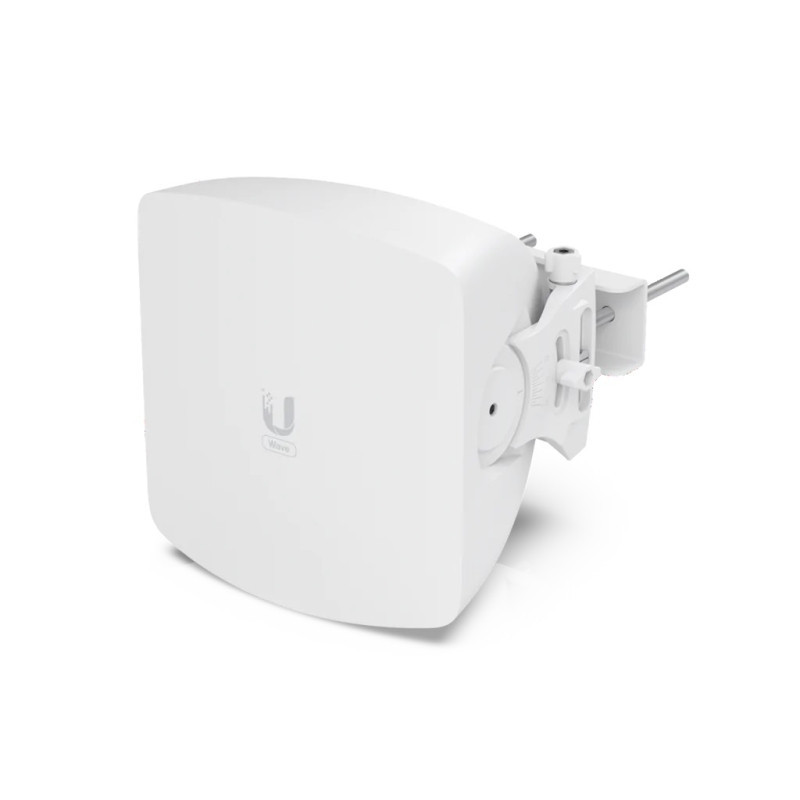

UBIQUITI Wave Access Point
Product reference:
18-Wave-AP
UBIQUITI Wave Access Point
UBIQUITI Wave Access Point
Product reference:
18-Wave-AP
UBIQUITI Wave Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
60 GHz PtMP access point powered by Wave Technology.
The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.
Features:
- 5 GHz backup radio
- Supported stations and distances: -Wave Long-Range: up to 8 km -Wave Nano: up to 5 km
- WAN Ports: (1) 10G SFP+, (1) 2.5GbE
- Integrated GPS antenna
- Link planning support via theISP Design Center
| Mechanical | |
|---|---|
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4') |
| Weight | 2.3 kg (5.07 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized polycarbonate |
| Pole mount diameter | 25 to 76 mm (1 to 3') on pipe outer diameter |
| Wind loading | 98 N at 200 km/h (22 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad ARM® Cortex®-A53 cores at 1.4 GHz |
| Memory | DDR3L 512MB |
| Network interface | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10)* Active only when SFP+ port is down. |
| Max. power consumption | 24W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48V DC, 0.65A 2.5GbE PoE adapter (included) |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Software management | Bluetooth management for easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Total throughput | 5.4 Gbps (2.7 Gbps duplex) |
| Supported clients count | 15 |
| Range | Connecting to a Wave Long-Range: up to 8 km Connecting to a Wave Nano: up to 5 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz*Depends on regulatory region. |
| Channel bandwidth | 2160, 1080MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz*Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 24 dBi |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 30° Elevation: 3 dB 3°, 6 dB 4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz*Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80MHz |
| Modulation | BPSK (1 2), QPSK (1 2), QPSK (3 4), 16QAM (1 2), 16QAM (3 4), 64QAM (2 3), 64QAM (3 4), 64QAM (5 6), 256QAM (3 4), 256QAM (5 6), 1024QAM (3 4), 1024QAM (5 6) |
| Antenna gain | 12 dBi |
| Cross-pole isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
