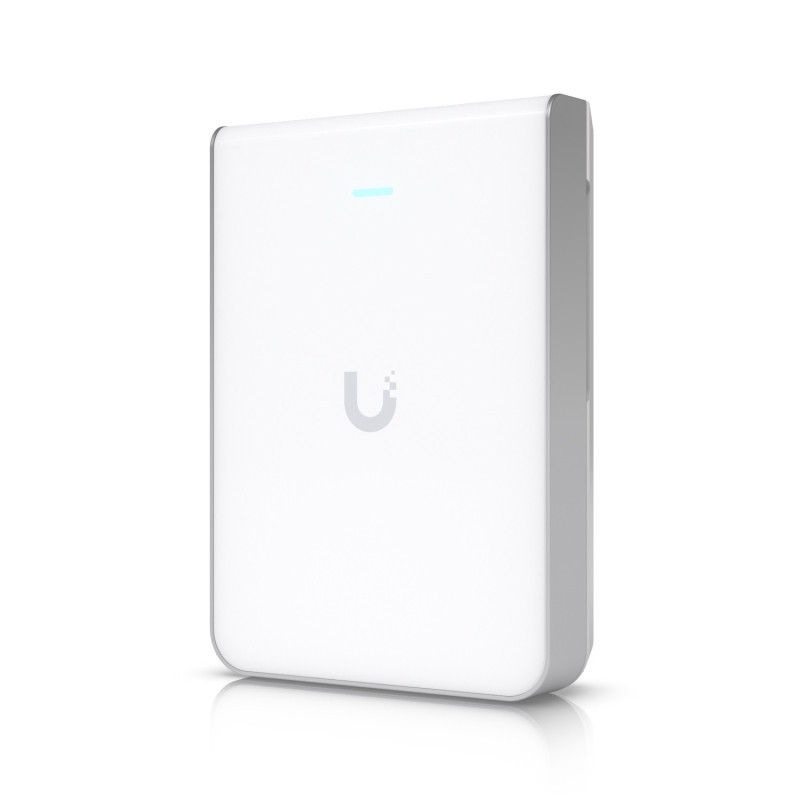

UBIQUITI UniFi WiFi 7 Access Point In-Wall U7 Pro Wall
Product reference:
18-U7-Pro-Wall
UBIQUITI UniFi WiFi 7 Access Point In-Wall U7 Pro Wall
UBIQUITI UniFi WiFi 7 Access Point In-Wall U7 Pro Wall
Product reference:
18-U7-Pro-Wall
UBIQUITI UniFi WiFi 7 Access Point In-Wall U7 Pro Wall
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
- WiFi 7 with 6 GHz support - 6 spatial streams - 140 m² (1,500 ft²) coverage - 300+ connected devices - Powered using PoE+ - 2.5 GbE uplink - Versatile deployment with optional Flush Mount and Table Stand accessories (sold separately)
| Mechanical | ||
|---|---|---|
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4') | |
| Weight | 580g (1.3lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mounting material | Aluminum | |
| Hardware | ||
| Network interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 22W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm 23 dBm | |
| MIMO 2.4GHz 5GHz 6GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) | |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 4 dBi 5 dBi 6 dBi | |
| LEDs | White/blue | |
| Button | Factory reset | |

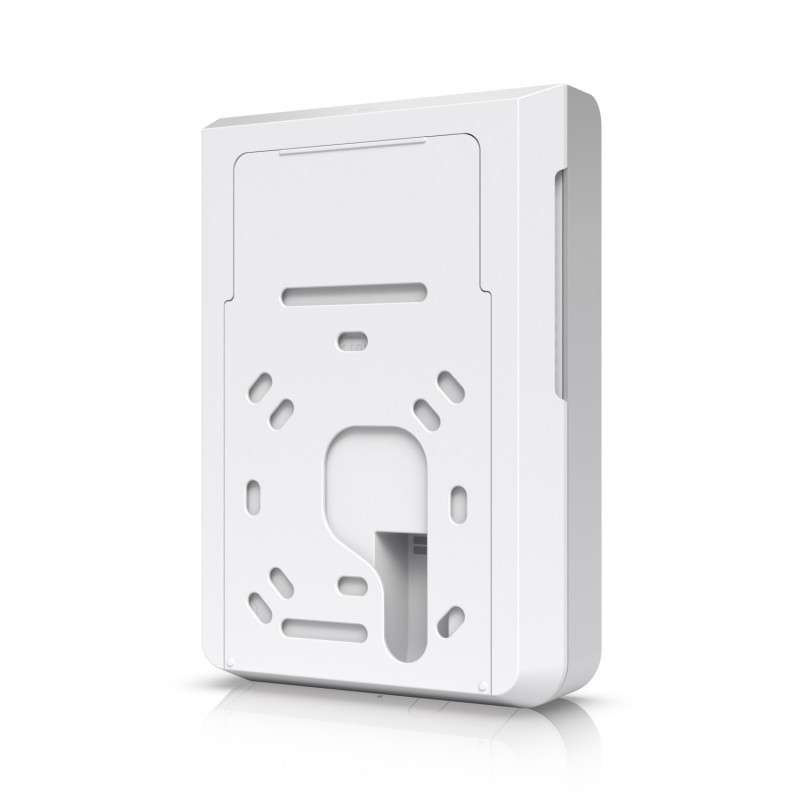

| Mounting | Wall (Included) Table stand, flush mount (Optional) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% non-condensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 on the radio | |
| VLANs | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.1 and later | |
| UniFi OS | Version 3.2 and later |
