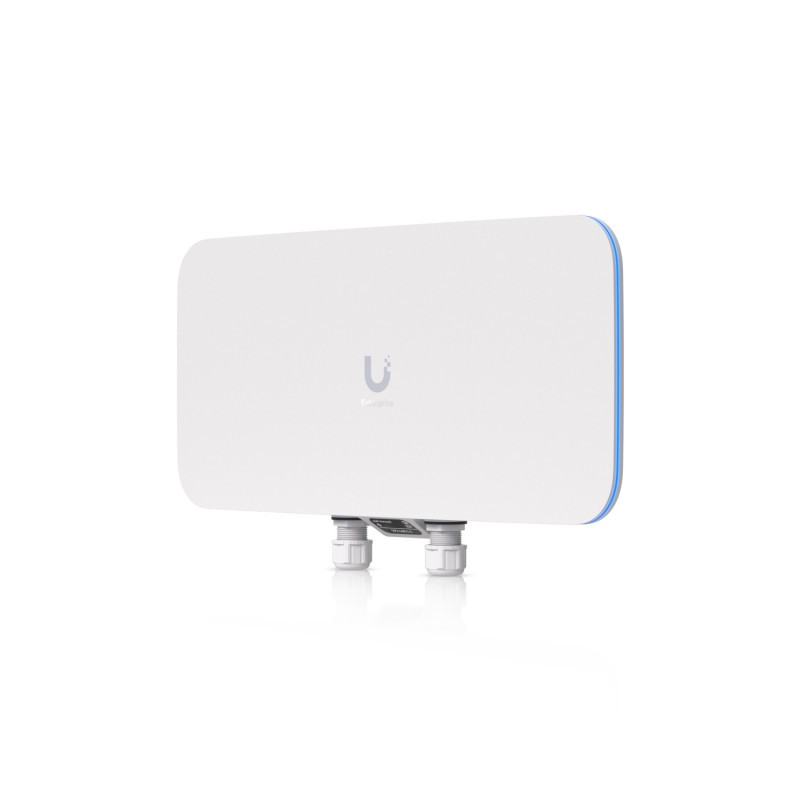

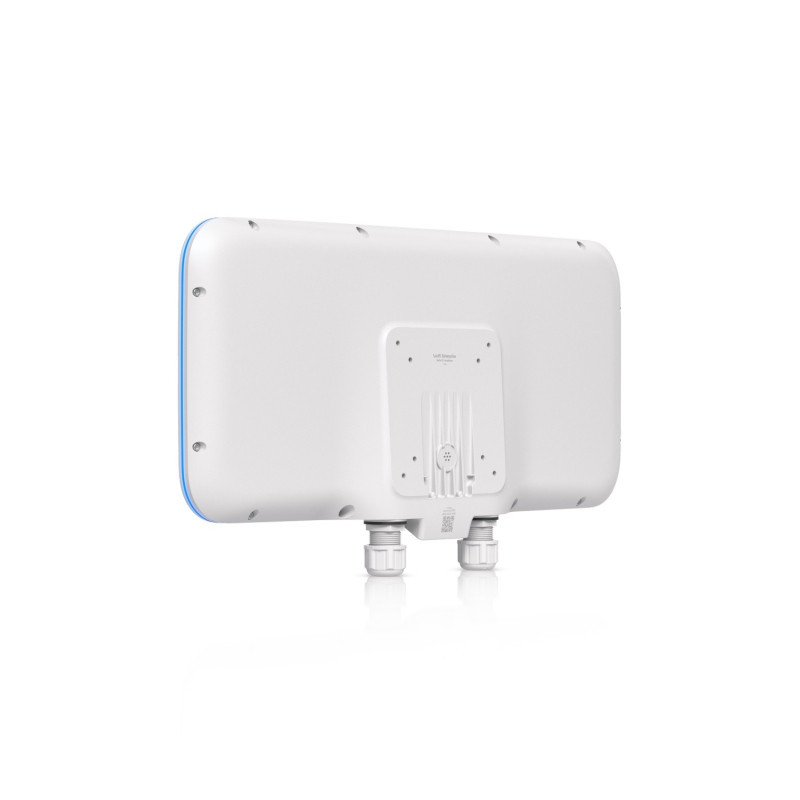

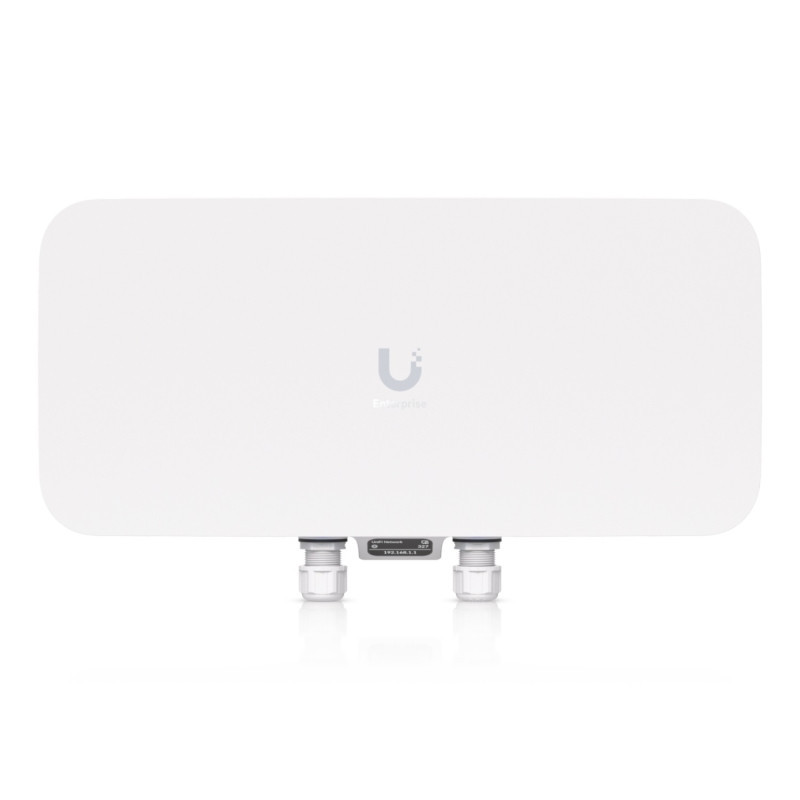

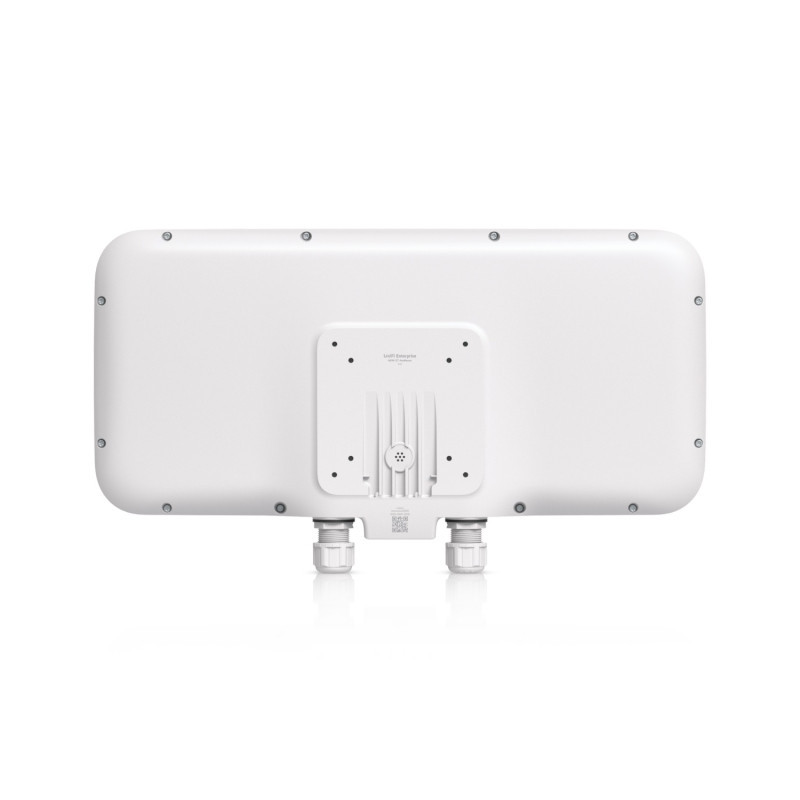

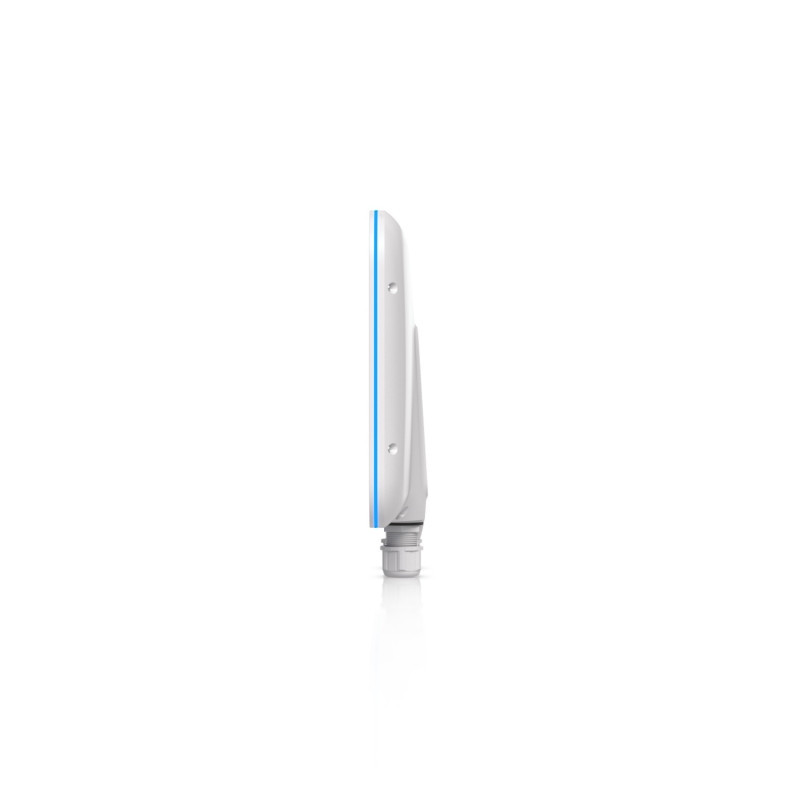

UBIQUITI UniFi Enterprise-grade, Indoor / outdoor Access Point E7 Audience

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

Dimensions:

Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7")

Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")

WiFi Standard: WiFi 7

Spatial Streams: 12

Coverage Area: 465 m² (5,000 ft²)

Max. Client Count: 1500+

Uplink:

10 GbE

1 GbE

Mounting: Wall, Pole (Mounts Included), VESA (Optional)

Weatherproofing: IP68

Power Method: PoE++

Performance

MIMO:

6 GHz - Low / High band: 4 x 4 (DL/UL MU-MIMO)

5 GHz - 4 x 4 (DL/UL MU-MIMO)

Max. Data Rate:

6 GHz - Low / High band: 11.5 Gbps (BW320)

5 GHz - 8.6 Gbps (BW240)

Antenna Gain:

6 GHz - Small cell: 15 dBi Large cell: 11 dBi

5 GHz - Small cell: 15 dBi Large cell: 11 dBi

Max. TX Power:

6 GHz - Low / High band: 30 dBm (36 dBm EIRP)

5 GHz - 30 dBm

Max. BSSIDs: 8 per Radio

Supported Data Rates:

802.11be (WiFi 7) - 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6) - 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5) - 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n - 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Zero-Wait DFS: Yes

Advanced Radio Management: Yes

Real-Time Spectral Analysis: Yes

Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal:

Custom Branding Landing Page: Yes

Voucher Authentication: Yes

Payment-Based Authentication: Yes

External Portal Server Support: Yes

Password Authentication: Yes

Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 51W

Supported Voltage Range: 42.5—57V DC

Networking Interface: (1) 10 GbE RJ45 port (1) GbE RJ45 port

PRISM™ RF Filtering: Yes

Weight: Device: 3.3 kg (7.3 lb) With mount: 4.3 kg (9.5 lb)

Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)

Pole Mount Diameter: 1~3" (25~76 mm)

Antennas: (1) Internal with directional patterns

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

Mount Material: Aluminum alloy

LEDs:

System: R/G/B

Channel Bandwidth: VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Certifications: FCC, IC

Operating Frequency:

US/CA:

U-NII-1: 5150 - 5250 MHz

U-NII-2A: 5250 - 5350 MHz

U-NII-2C: 5470 - 5725 MHz

U-NII-3: 5725 - 5850 MHz

U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:

5150 - 5725 MHz 5925 - 7125 MHz

Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Software: Application Requirements

UniFi Network: Version 9.0.114 and later

UniFi OS: iOS™ version 10.20.0 and later Android™ version 10.21.3 and later
