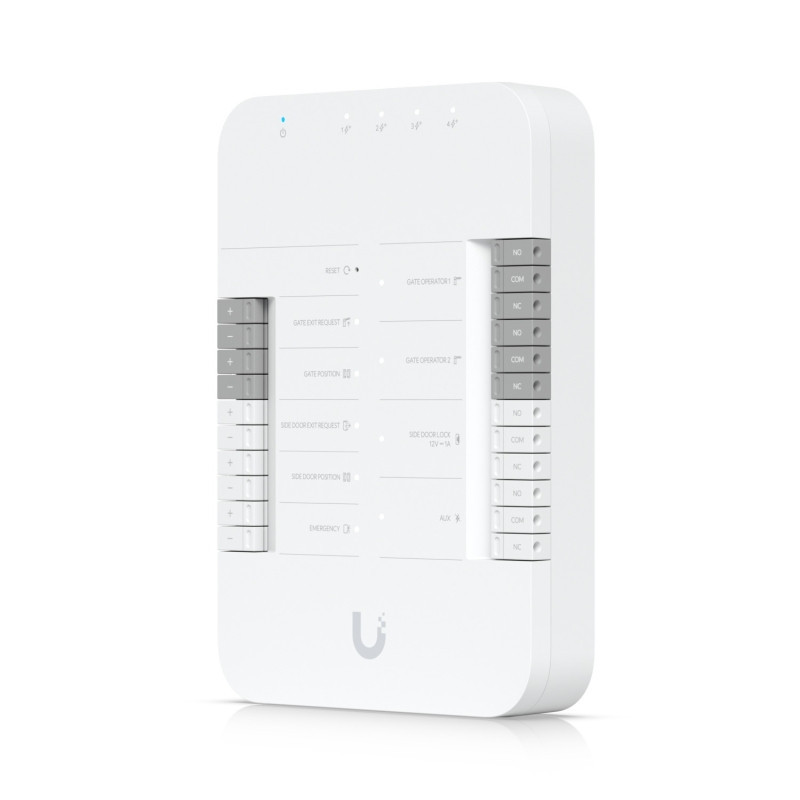

UBIQUITI UniFi Access Gate Hub

Centralized Access ControlThe Ubiquiti Access Gate Hub (UA-Hub-Gate) serves as the central component for advanced access control systems, designed to manage and secure access points efficiently. Supporting up to three controlled doors, this hub integrates seamlessly with Ubiquiti's UniFi Access ecosystem, providing centralized management through an intuitive interface. Its compatibility with UniFi Access Readers ensures secure communication and streamlined operations, while the built-in relays and inputs for various door types, such as electromagnetic locks and exit buttons, enhance system versatility. With its seamless integration and powerful control features, the UA-Hub-Gate is ideal for modern access management needs. The hub supports Wiegand-based systems, ensuring compatibility with a wide range of third-party devices. With features such as automatic fail-safe operation and the ability to manage multiple doors simultaneously, the UA-Hub-Gate ensures uninterrupted access control even in critical security setups.

Reliable Communication ProtocolsThe UA-Hub-Gate is engineered for reliability and scalability, catering to small offices, commercial spaces, and enterprise environments. Its robust design allows it to operate in demanding conditions, and the PoE-powered connectivity minimizes wiring complexity during installation. The Hub uses encrypted communication protocols to enhance security and prevent unauthorized access. By leveraging secure channels between the hub, readers, and the UniFi Access application, it guarantees the integrity and confidentiality of access data. The system's advanced logging capabilities enable detailed monitoring and reporting of access events, which are easily retrievable via the UniFi Controller. These features not only enhance security but also simplify compliance with stringent access control regulations, making it an excellent solution for environments where data integrity and reliability are paramount.

Simple SetupDesigned with user convenience in mind, the UA-Hub-Gate offers a straightforward installation process that minimizes setup complexity. The device integrates seamlessly with the UniFi Access application, providing a centralized platform for real-time control, scheduling, and monitoring of access points. The UniFi Access application enables administrators to manage access permissions, create user groups, and set access schedules with ease. The device supports firmware updates, allowing users to benefit from new features and improvements over time. The UA-Hub-Gate is powered by 802.3bt Power over Ethernet (PoE++), simplifying wiring requirements and enhancing installation flexibility. With its plug-and-play design and highly intuitive user interface, the UA-Hub-Gate simplifies access control management, reducing deployment times and ensuring a seamless user experience across diverse environments.

Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1') UniFi Application Suite: Access: ✓ Supported Doors: 1 gate, 1 side door Maximum User Count: 6,000 Input Terminals: (1) Gate exit request (1) Gate position (1) Side door exit request (1) Side door position (1) Emergency Power Method: PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU NDAA Compliant: ✓ UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Mechanical

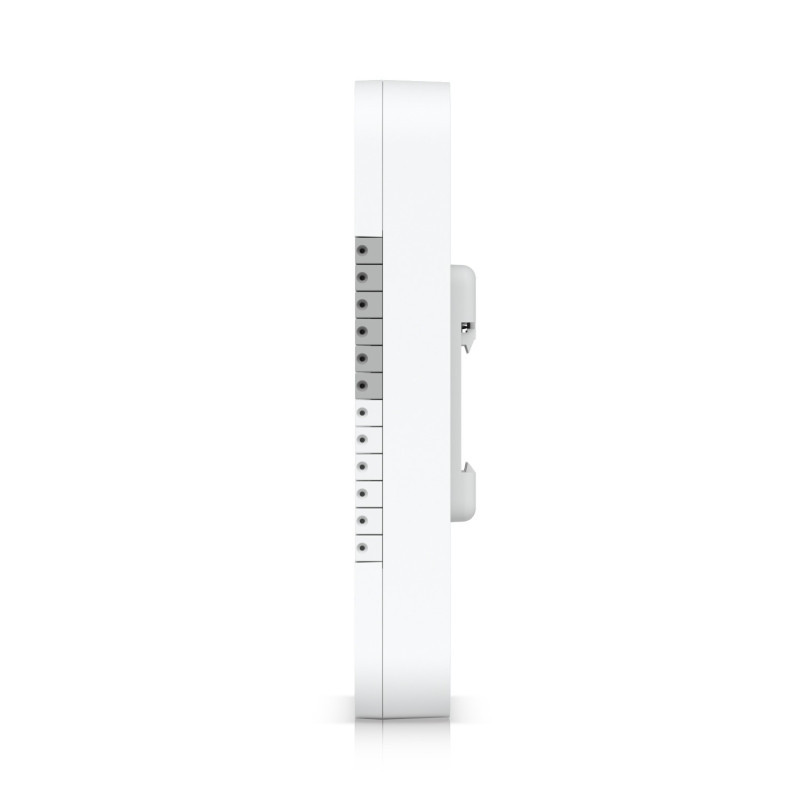

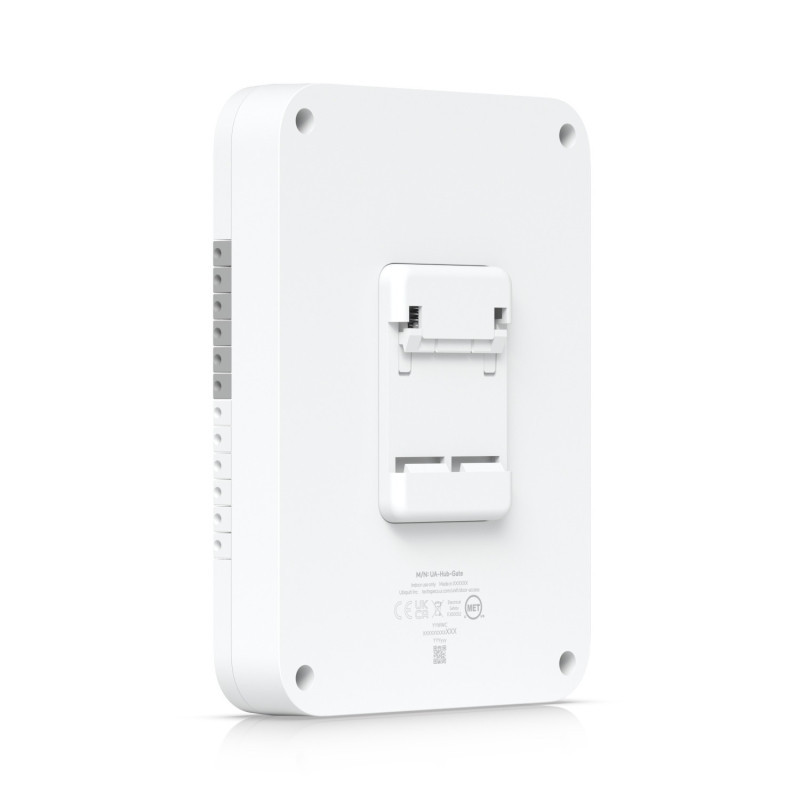

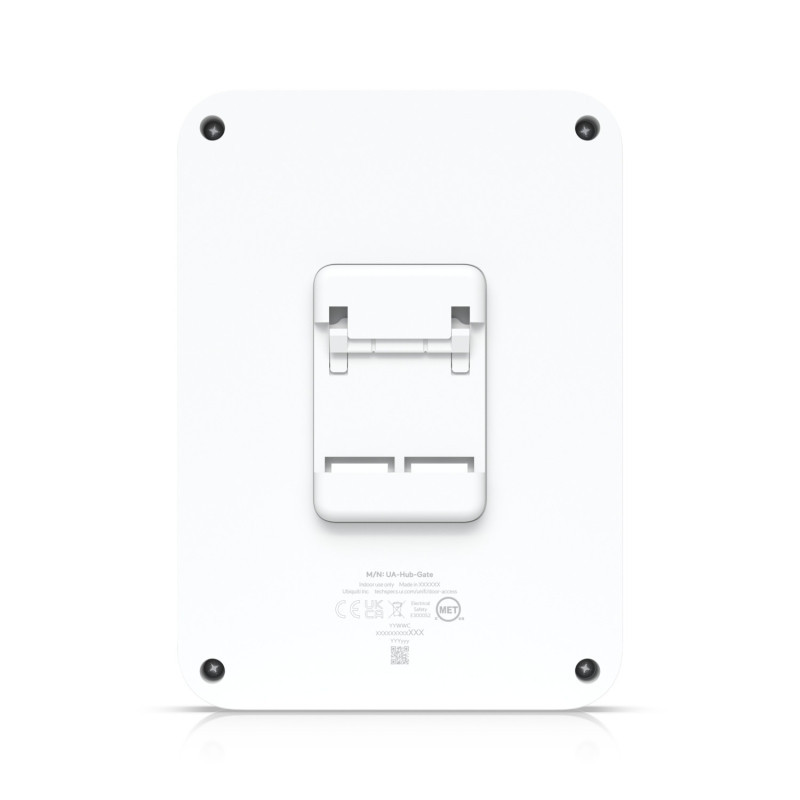

Weight: 460 g (1 lb) Enclosure Material: Polycarbonate Mounting: DIN-rail (Included)

Hardware

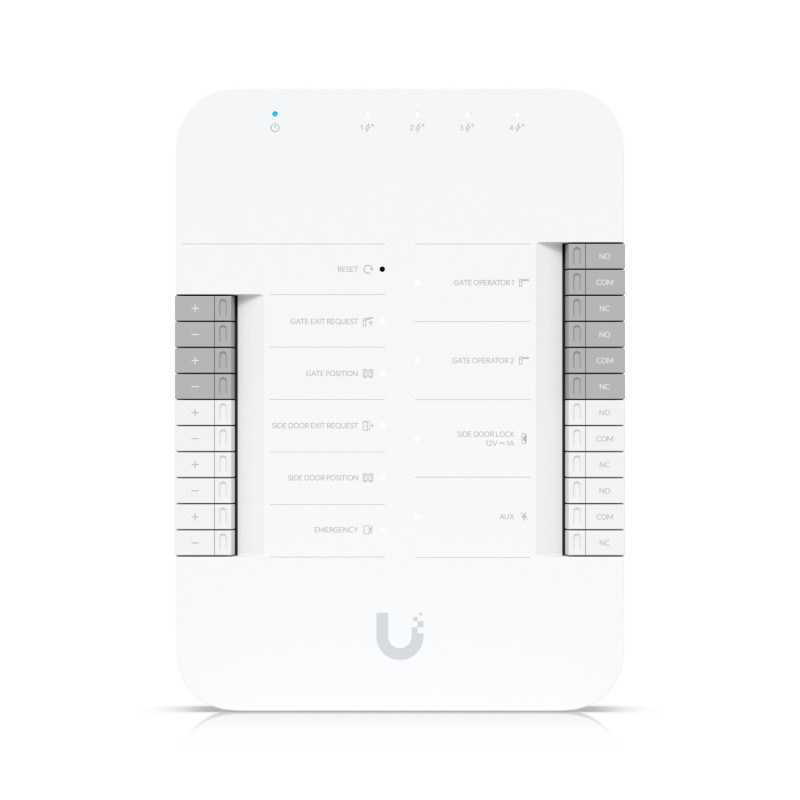

Digital Input: Gate exit request, gate position, side door exit request, side door position, emergency Dry Output Relay: (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A Powered Output Relay: Side door lock: 12V DC, up to 1A Indoor and Outdoor Use: Indoor only: device itself Outdoor: with waterproof junction box Ambient Operating Temperature: -30 to 60° C (-22 to 140° F) Ambient Operating Humidity: 5 to 90% noncondensing Networking Interface: (5) 10/100/1000 Base-T PoE Interface: (1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 55W aggregated) Max. Power Consumption: 22W (Without PoE output) 60W (With PoE output) LEDs: W/BLearn MoreButtons: (1) Factory-reset Recommend Max. Cable Length: UA-Lock-Electric (400mA): 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA): 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft) UA-Lock-Magnetic-270kg (800mA): 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Other locks (1A): 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade: Grade assignment: I Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Software

Management Application: Access Software Information: The software version can be checked athttps://unifi.ui.com
