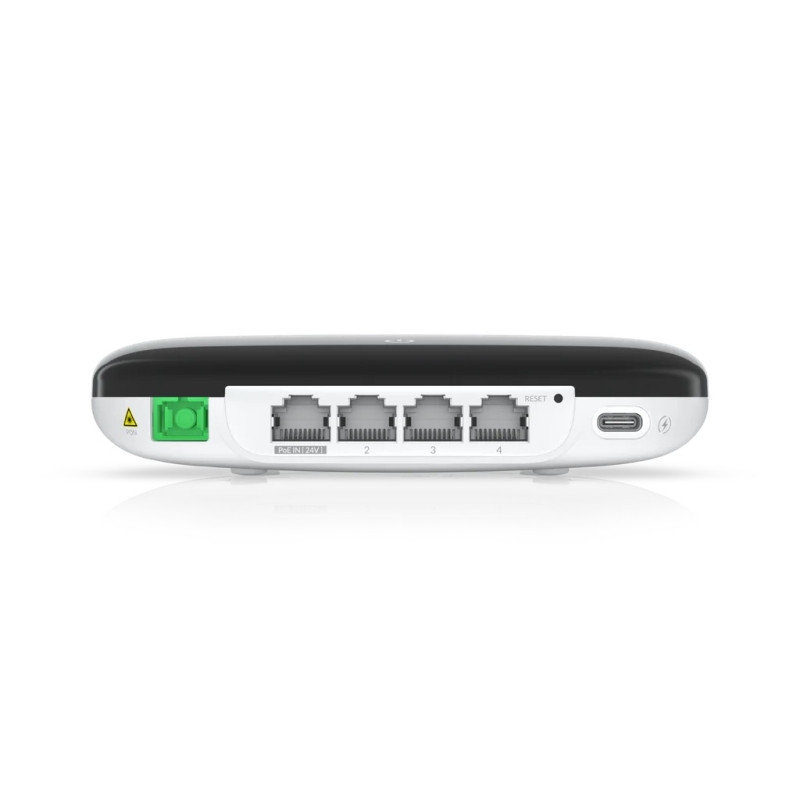

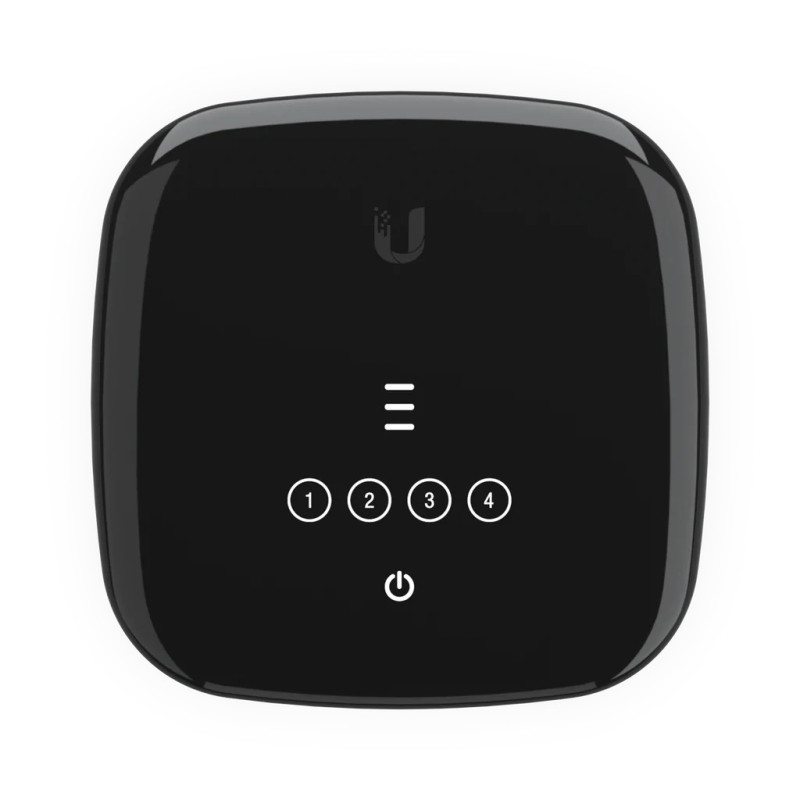

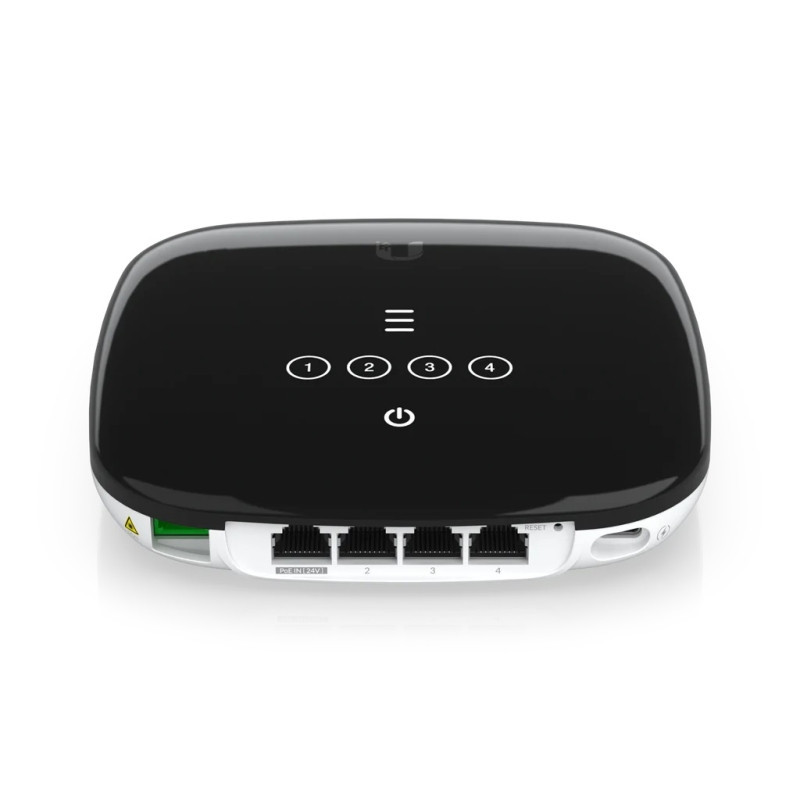

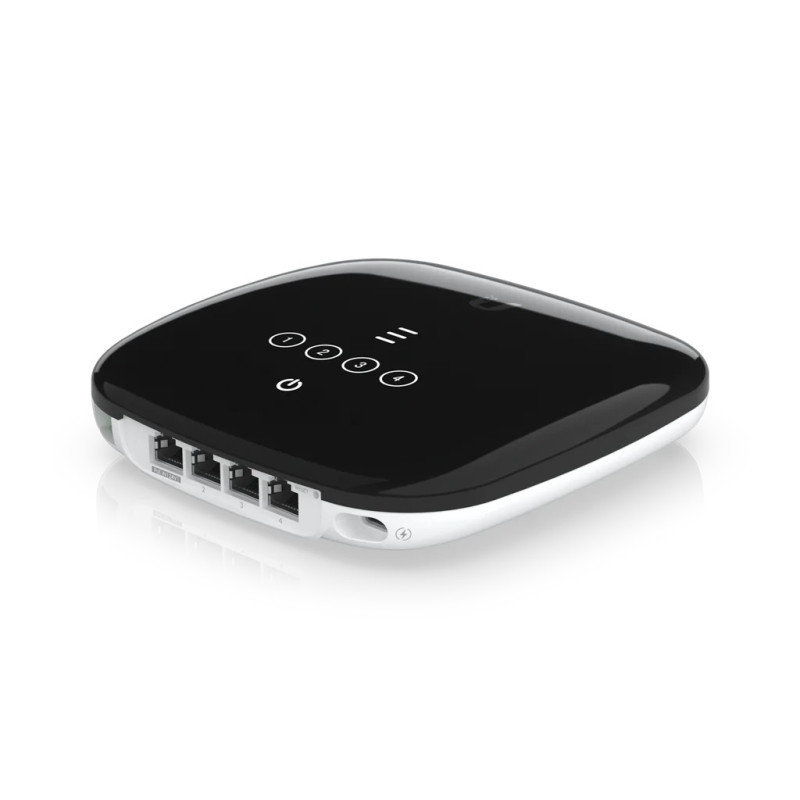

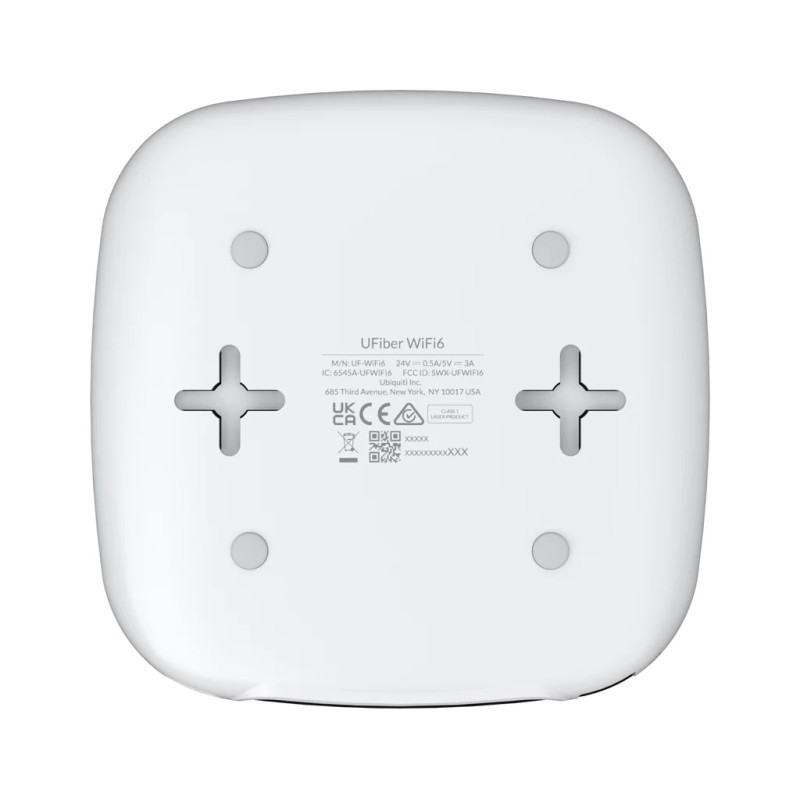

The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.


Features:



  • 2x2, high-efficiency WiFi 6

  • 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate

  • 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate

  • 2.4 Gbps max downstream line rate

  • 1.2 Gbps max upstream line rate

  • Establishes GPON links up to 20 km

  • Powerful Layer 2/3 management features

  • (1) GPON WAN port

  • (4) GbE RJ45 LAN ports

  • Powered with the included power adapter or passive PoE

  • Internal WiFi 6 (802.11ax) antenna







































































































































































































Mechanical
Dimensions140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25')
Weight415 g (0.99 lb)
Enclosure materialUV-stabilized polycarbonate
Hardware
ProcessorDual-core MIPS 1004 Kc at 900 MHz
Memory256MB RAM
Total non-blocking line rate2.488 Gbps downstream 1.244 Gbps upstream
Networking interfaces(1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels
PoE interface(1) PoE in, 24V passive PoE
Management interfaceEthernet in-band PON
ButtonFactory reset
Max. power consumption11W
Power methodUSB-C 5VDC, 3A 24V passive PoE, 0.5A
Power supply5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range10 to 30VDC passive PoE 5VDC adapter
Normal TX range of optical module0.5 to 5 dBm
Normal RX range of optical module-8 to -28 dBm
Max. WiFi TX power 2.4 Ghz 5 Ghz20 dBm 20 dBm
MIMO 2.4Ghz 5Ghz2x2 2x2
Max. WiFi radio circle 2.4 Ghz 5 Ghz300Mbps 1.2Gbps
Antenna Gain 2.4 GHz 5 GHz1 dBi 3 dBi
Operating temperature-15 to 45°C (5 to 113°F)
Operating humidity10 to 90% non-condensing
CertificationsFCC, IC, CE
LEDs
PON status(3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -28 db) 1x white: signal low (> = -28 db) 2x white: signal good (> = -25 db) 3x white: signal strong (> = -11 db) 1x orange + 2x white: signal too strong (> = -8 db) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: No authority
EthernetSteady white: link up Blinking white: activity OFF: link down
PowerWhite: ON
Software
FashionONU/ONT layer 2/3 Ethernet switch
ServicesWeb server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
UtilitiesDashboard, monitoring, alarms, and logs
OtherRemote reset, remote reboot, remote firmware upgrade, VLAN support
SecurityGEM Port Encryption
Ubiquiti specific featuresUBNT Discovery and UISP Mobile app
WiFi standards802.11 b/g WiFi 4/WiFi 5/WiFi 6
Wireless securityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Minimum software requirementsAny modern web browser (Google Chrome™ recommended)
Fiber
Operating wavelength1310nm TX/1490nm RX
Optical interface downstream nominal bit rate2488.32 Mbit/s
Optical interface upstream nominal bit rate1244.16 Mbps
Physical reach20 km
Supported Data Rates
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6)8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
