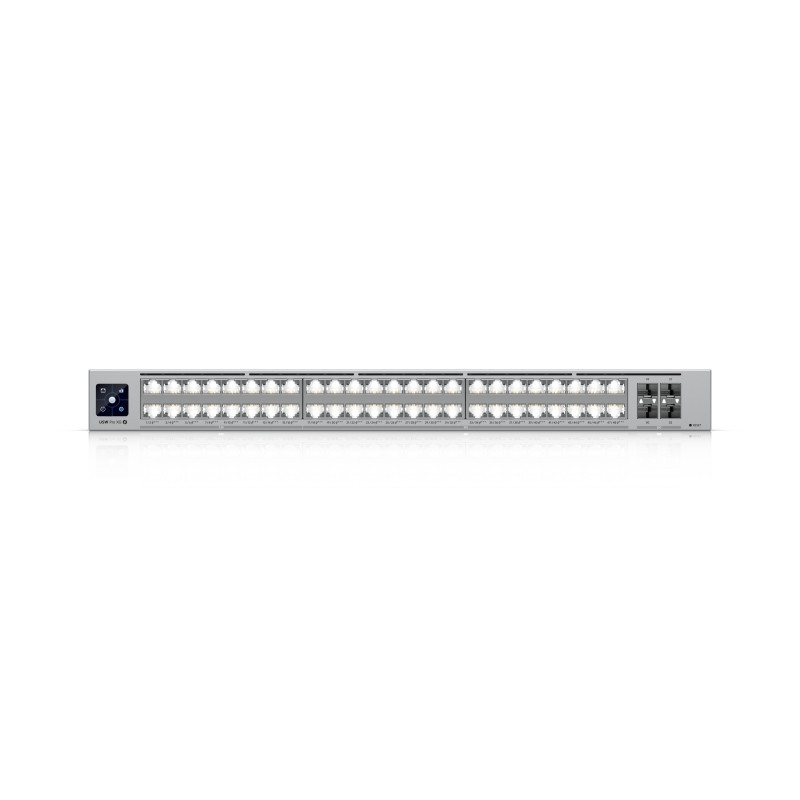

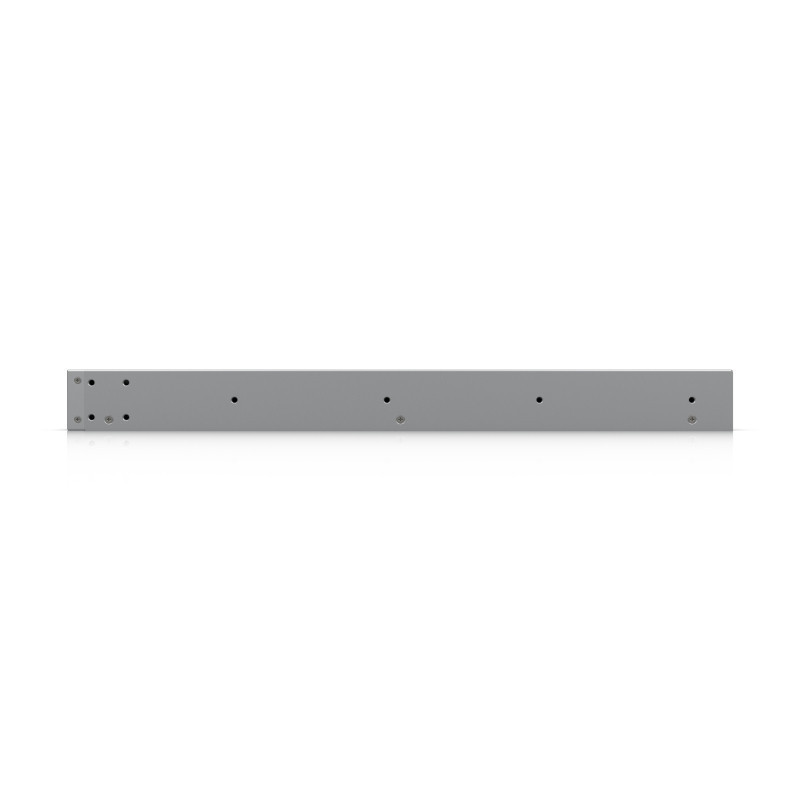

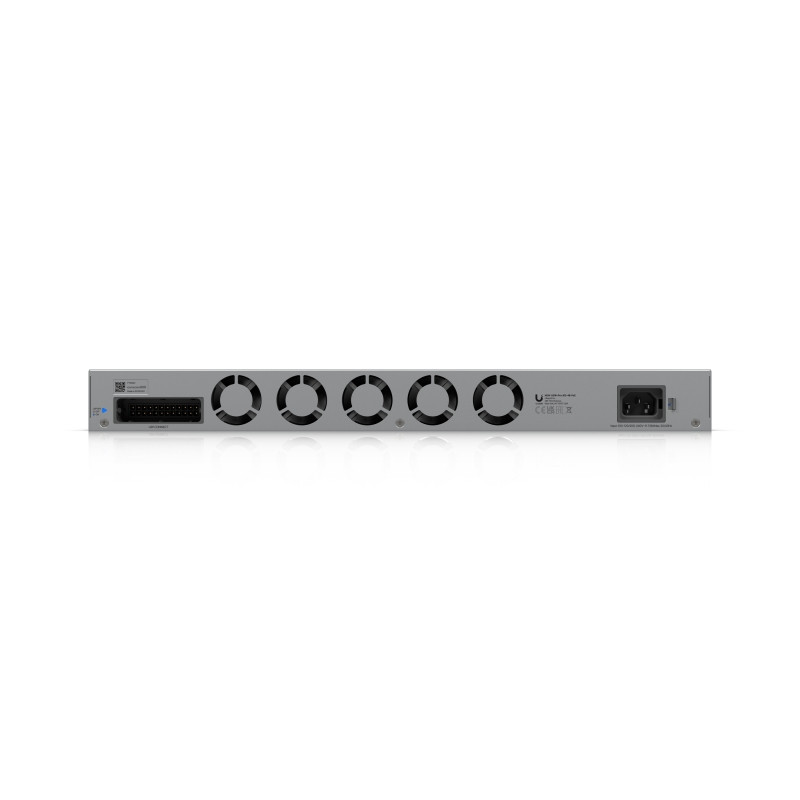

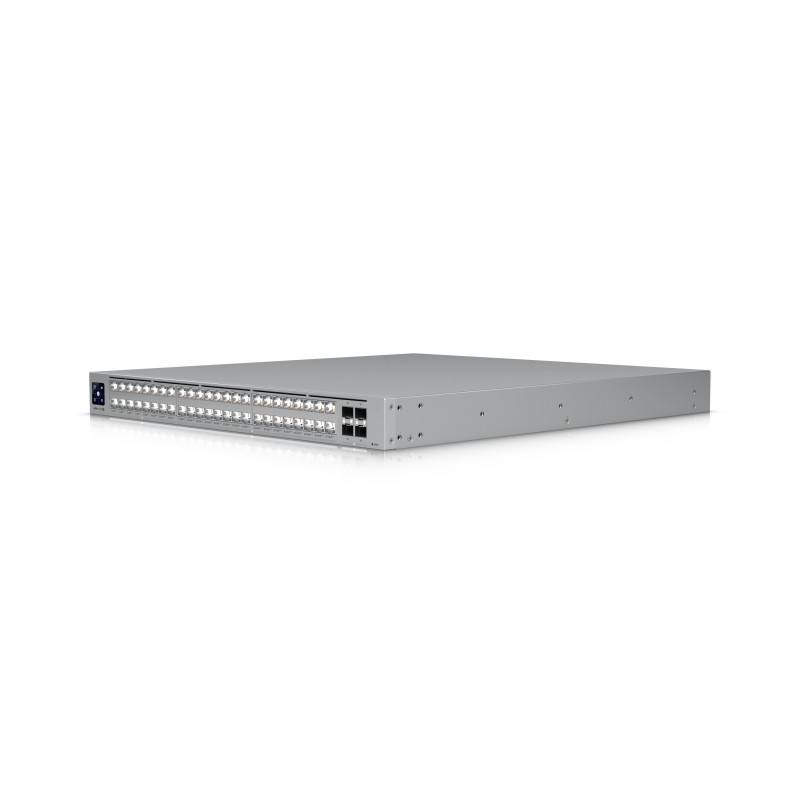

UBIQUITI Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch

Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout:
2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28: 4 (25G/10G/1G)
Max. PoE Output: Up to PoE+++
Total PoE Availability:
200-240V AC: 1080W
100-120V AC: 972W
Redundancy: DC Power Backup
Layer 3: ✓
Form Factor: Rack mount (1U)
Etherlighting™: ✓

Performance

Switching Capacity: 920 Gbps
Total Non-Blocking Throughput: 460 Gbps
Forwarding Rate: 684 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 128,000
L3 Table Size:
ARP Entries: 128,000
IPv4 Routes: 256,000
IPv4 Static Routes: 512
Packet Buffer Size: 8 MB
Access Lists:
IPv4: 256
MACs: 256

Layer 3 Features

DHCP Server (Local Networks): ✓
DHCP Relay: ✓
Inter-VLAN Routing (Local Networks): ✓
Static Routing (Local Networks): ✓

Layer 2 Features

LACP Port Aggregation: ✓
STP RSTP: ✓
QoS (DSCP): ✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs Device Isolation: ✓
DHCP Snooping Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓
Virtual Network Override: ✓

Hardware

PoE Ports:
PoE+++: 48
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Max. Power Consumption:
200W (Excluding PoE Output)
200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output)
Power Method:
(1) Universal input, 100-240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 1,350W
Supported Voltage Range: 100-240V AC
Management:
Ethernet
OR
Weight:
Without mounting brackets: 8.7 kg (19.2 lb)
With mounting brackets: 8.8 kg (19.4 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42")
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% non-condensing
Etherlighting™:
Ethernet: ✓
SFP28: ✓
LEDs:
RPS: ✓
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel: 04322-25-08356

Software

Application Requirements:
UniFi Network: Version 9.1.120 and later
