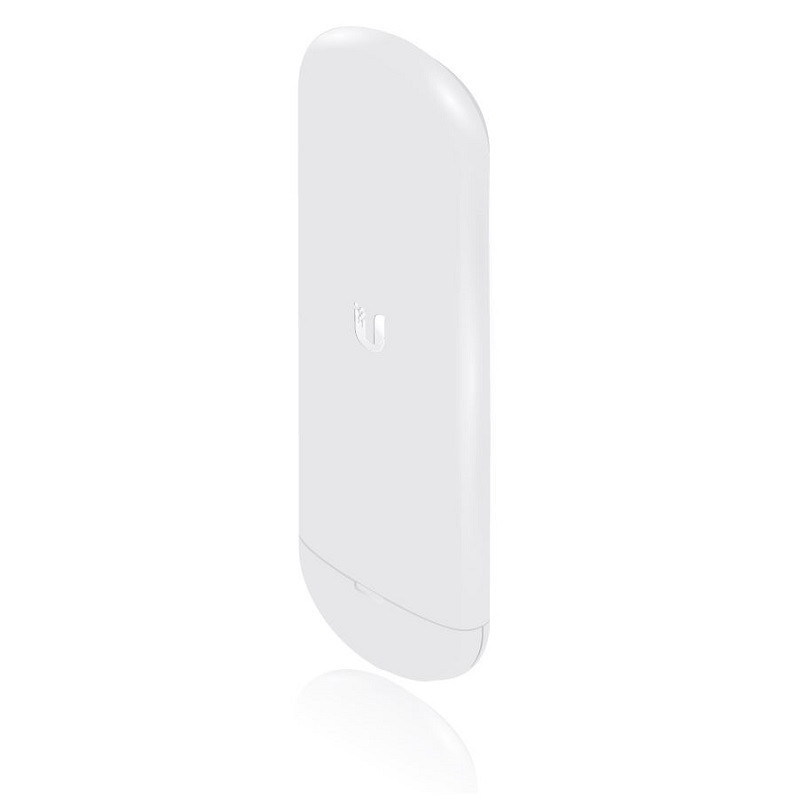

UBIQUITI NanoStation 5AC 16 dBi Outdoor 5 GHz airMAX ac CPE with Wi-Fi Management Radio

Sleek Industrial Design

The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

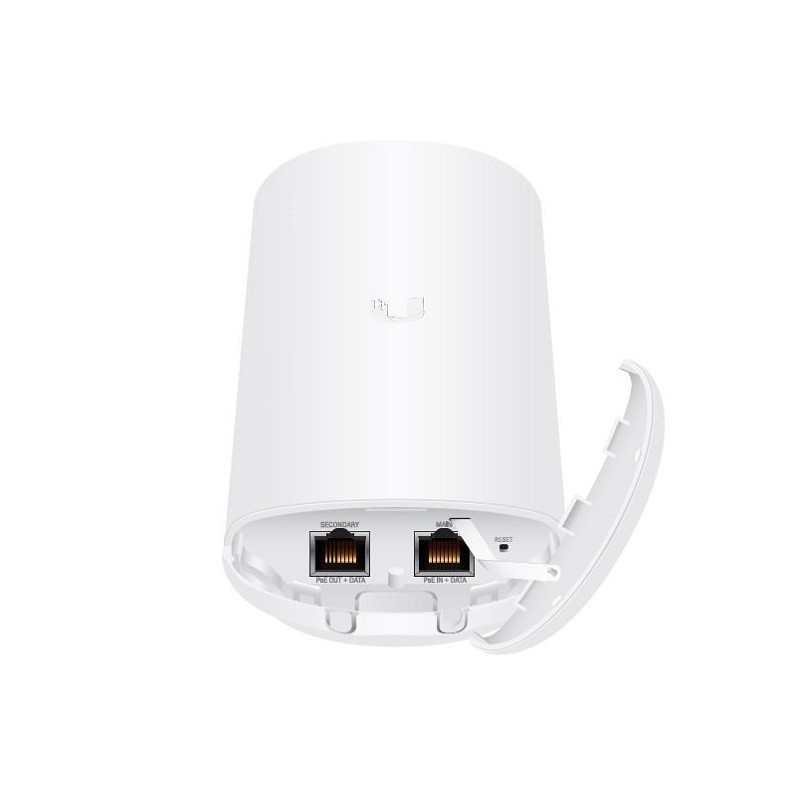

Dual Ethernet Connectivity

The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.

Management Wi-Fi Radio

Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Dimensions: 257 x 84 x 30 mm (10.12 x 3.31 x 1.18') - With Mount, 257 x 84 x 41 mm (10.12 x 3.31 x 1.61') - Without Mount Weight: 233 g (8.22) oz Power Supply: 24V, 0.5A Gigabit PoE Supply (Included) Max. Power Consumption: 8.5W Power Method: 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return), 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) Gain: 16 dBi Networking Interface: (2) 10/100/1000 Mbps Ethernet Ports Channel Bandwidths: 10/20/30/40/50/60/80 MHz Processor Specs: Atheros MIPS 74Kc, 560 MHz Memory: 64 MB DDR2 Cross-pol Isolation: 20 dB Minimum Max. VSWR: 1.6:1 Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation) Polarization: Dual Linear Enclosure: UV Resistant Polycarbonate LEDs: (1) Power, Eth1, Eth2; (1) Signal Strength Mounting: Pole-Mount (Kit Included) Operating Temperature: -40 to 70° C (-40 to 158° F) Operating Humidity: 5 to 95% Noncondensing RoHS Compliance: Yes ESD/EMP Protection: ±24kV Contact/Air Shock Vibration: ETSI300-019-1.4 Certifications: CE, FCC, IC

Operating Frequency (MHz): 5150 - 5875 Management Radio (MHz): 2412 - 2472
