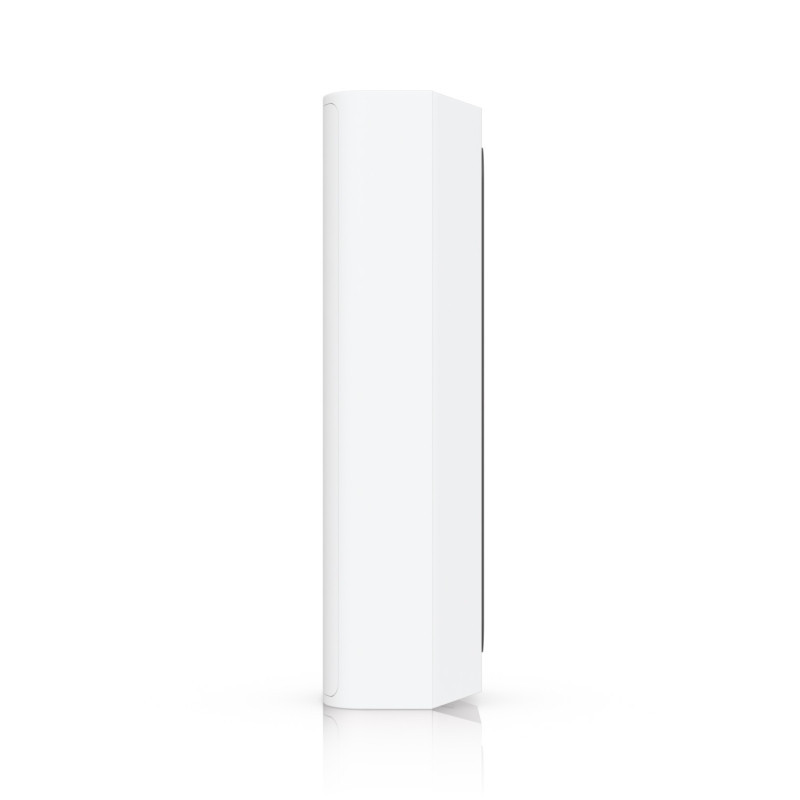

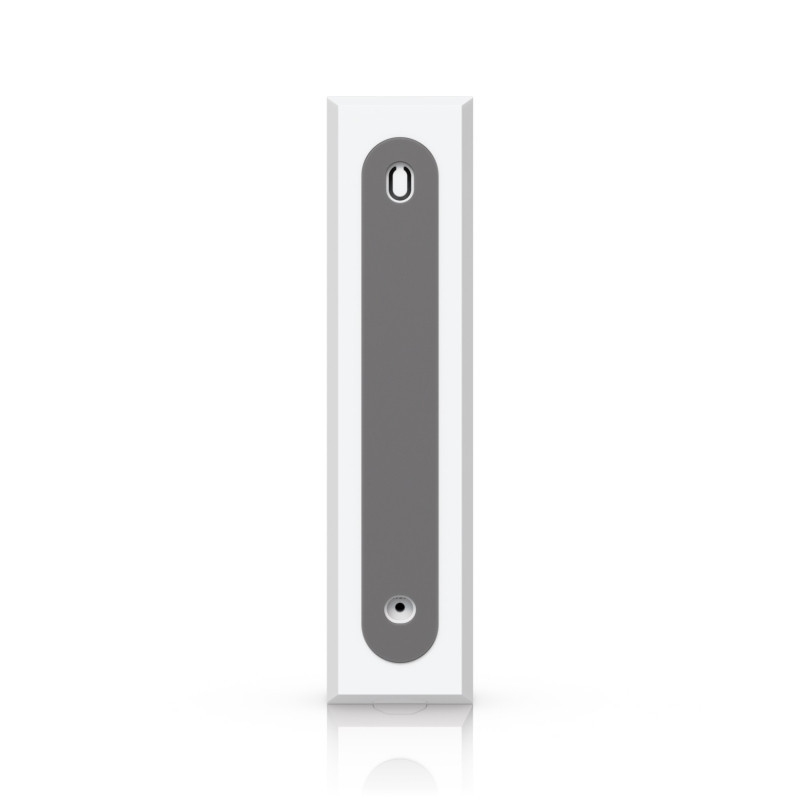

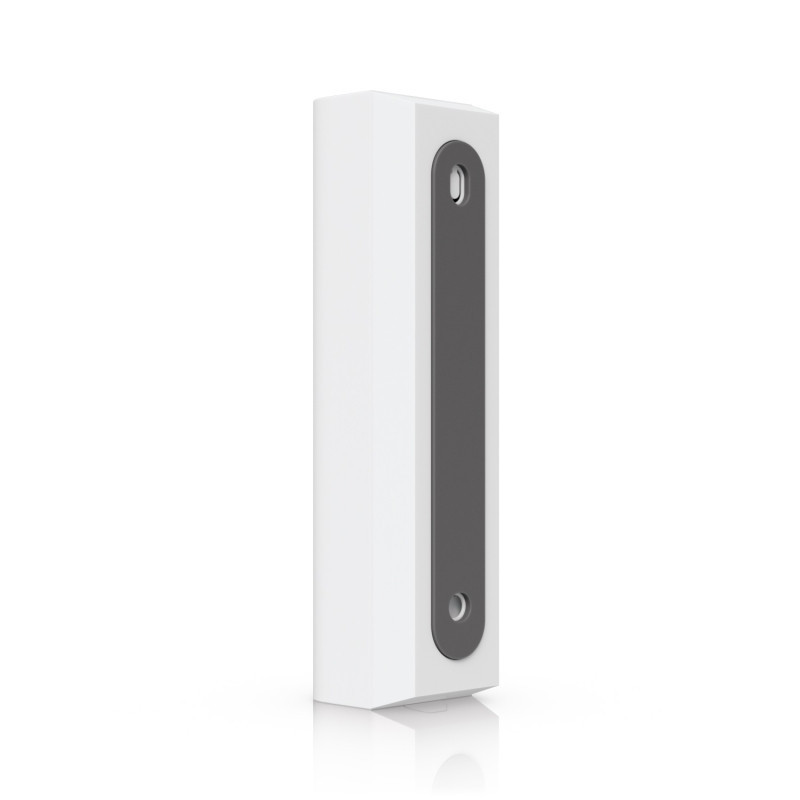

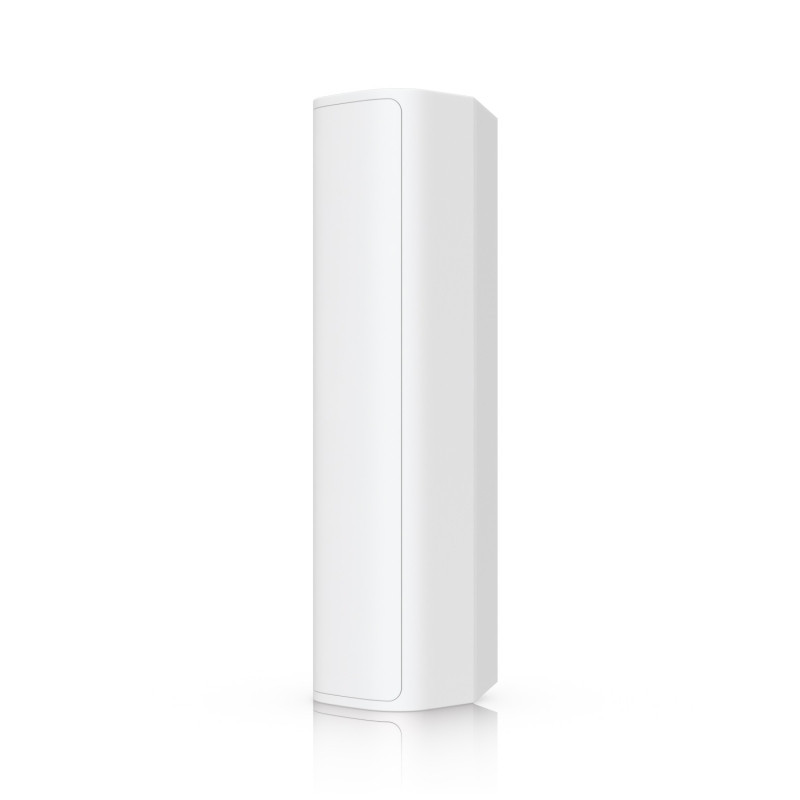

UBIQUITI Motion Sensor

Dimensions:

Device with wall mount: 93.5 x 22.5 x 24.7 mm (3.7 x 0.89 x 0.97")

Device with corner mount: 93.5 x 22.5 x 27.9 mm (3.7 x 0.89 x 1.1")

Mounting: Adhesive and screw mount

UniFi Application Suite: Protect

Performance

Connectivity: SuperLink (Proprietary)

Operating Frequency:

SuperLink: 865.1-869.5 MHz

Antenna Gain:

SuperLink: 1 dBi

Max. TX Power:

SuperLink: 14 dBm

Max. Range:

SuperLink: 2 km (1.2 mi)

Sensor Features:

Horizontal PIR Sensor: Detection range up to 1.5 m (4.9 ft)

Vertical PIR Sensor: Detection range up to 6 m (19.7 ft) with pet immunity

Hardware

Max. Power Consumption: 22.6mW

Supported Voltage Range: 3V

Power Method: Lithium battery CR123A

Battery Life: Up to 6 years

Weight: 45 g (1.6 oz)

Enclosure Material: Polycarbonate, high-density polyethylene (HDPE)

Mount Material: Polycarbonate

Buttons:

(1) Factory reset

(1) Function button

(1) Tamper switch

LEDs:

(1) Status: R/B/W

(1) Signal: B/R

Ambient Operating Temperature: 0 to 40° C (32 to 104° F)

Ambient Operating Humidity: 10 to 90% noncondensing

Certifications: FCC, IC, CE

NDAA Compliant: ✓

Software

Application Requirements:

Web Application: UniFi Protect

Mobile App: UniFi Protect iOS™ and Android™
