UBIQUITI Magnetic Lock

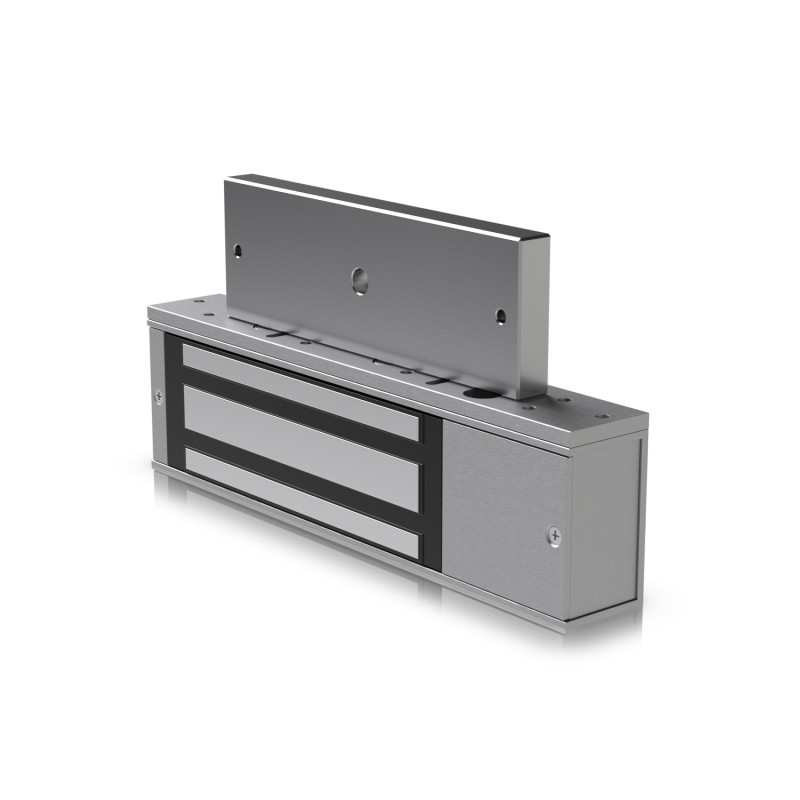

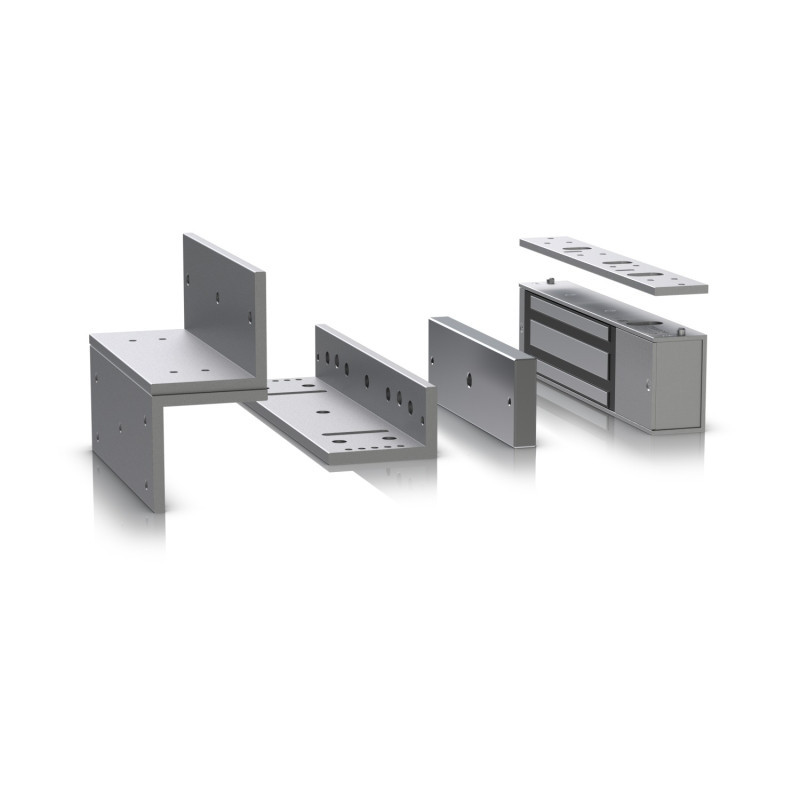

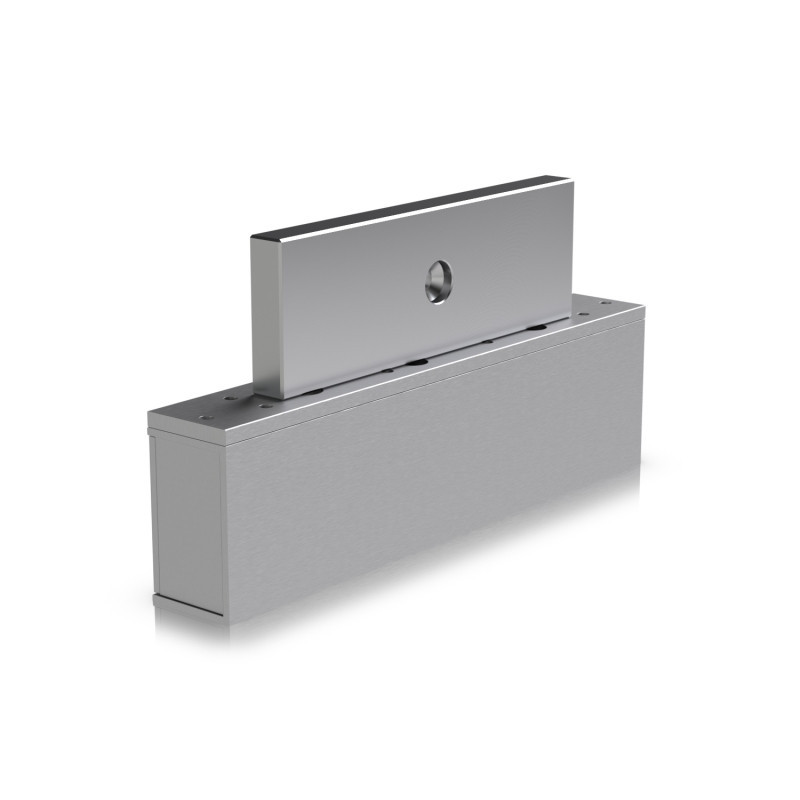

Strong Secure Lock The Ubiquiti UniFi Magnetic Lock is designed to deliver strong, reliable door security with a holding force of up to 540 kg. This makes it suitable for offices, commercial spaces, and secure facilities where reliable access control is essential. Built as a fail-safe lock, it automatically unlocks if power is cut, allowing safe exit during emergencies such as power outages or fire alarms. The lock is compatible with various types of doors, including wooden and metal doors (not suitable for full glass doors). For easy installation, the kit includes several brackets: an L-shaped bracket for outward-opening doors with thicknesses up to 42 mm, and a Z-shaped bracket for inward-opening doors. A durable aluminum housing and steel armature plate ensure long-term stability, while integrated LED indicators (red and green) provide clear visual confirmation of lock status at a glance.

Easy Setup Integration The UniFi Magnetic Lock is engineered for smooth integration into the UniFi Access ecosystem. It operates on 12 V DC power and requires about 500 mA (±10%), keeping power consumption efficient for continuous daily operation. Installation is straightforward thanks to its four clear connection terminals: Lock 12 V/NC, Lock 12 V/COM, DPS+, and DPS-, which connect directly to the UniFi Door Hub without the need for complex wiring. Compact yet durable, it can operate reliably in temperatures from -10 °C to 50 °C and withstand humidity levels up to 90% (non-condensing). The lock is NDAA-compliant and certified under CE, FCC, and IC standards, guaranteeing safe use in global projects. With robust construction, flexible mounting options, clear LED status feedback, and international compliance, the UniFi Magnetic Lock provides a secure and professional solution for enterprise, retail, and residential access control needs.

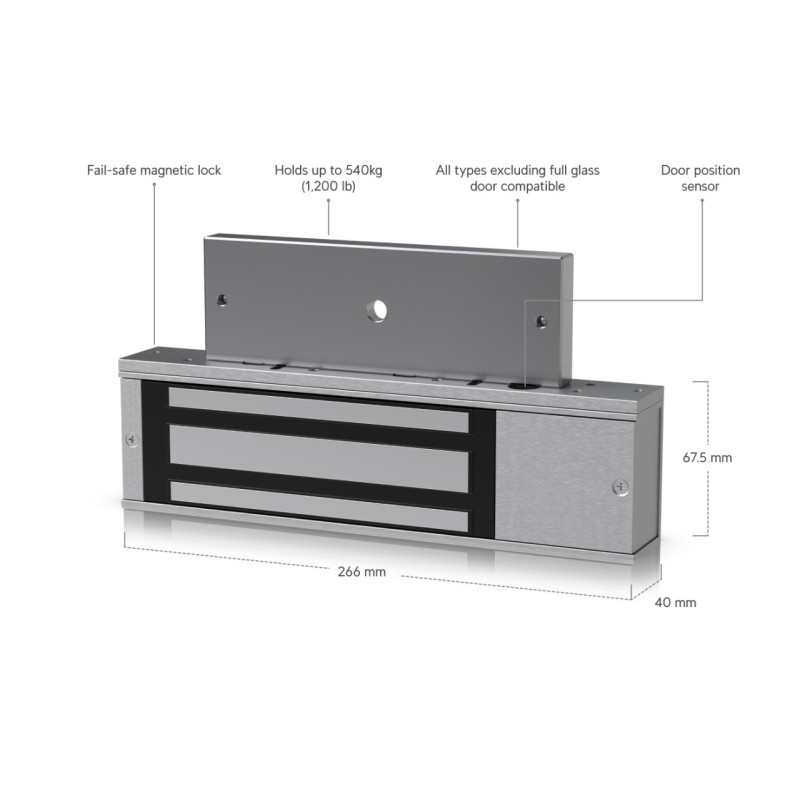

Dimensions: Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") Weight: Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) Enclosure Material: Device/brackets: aluminum Armature: steel Lock Features: Lock Type: Fail safe Support Door Type: Single door (Wooden/metal) DPS: Embedded Holding Force: 540 kg (1,200 lb) Current Power: 500mA ±10% Support Voltage Range: 12V DC ±10% Wiring: (1) Lock 12V/NC (ed) (1) Lock 12V/COM (black) (1) DPS/+ (white) (1) DPS/- (yellow) Mounting: L bracket: for outward opening door thickness < 42 mm (< 1.7") Z bracket: for inward opening door, used with L bracket LED Indicator: Green: unlocked Red: locked Ambient Storage Temperature: -20 to 70° C (-4 to 158° F) Ambient Operating Temperature: -10 to 60° C (14 to 140° F) Ambient Operating Humidity: 5 to 90% noncondensing NDAA Compliant: ✓ Certifications: FCC, IC, CE
