UBIQUITI G3 Starter Kit

All-in-One Access ControlThe Ubiquiti UniFi G3 Starter Kit (UA-G3-SK) is a complete access control system for managing a single door. It includes a UA-Hub-Door-Mini, a UA-G3 Reader, and two pocket keyfobs for secure, seamless authentication. Supporting NFC, Apple Touch Pass, and BLE 4.1, it enables flexible access methods. Powered by PoE, the system simplifies installation by eliminating the need for separate power supplies, reducing cable clutter. The UA-G3-SK seamlessly integrates with UniFi Access, offering centralized management through an intuitive interface. Designed for businesses, offices, and residential properties, the UA-G3-SK provides reliable, modern security with an easy-to-use interface and real-time access monitoring. The UA-Hub-Door-Mini acts as the system's control center, featuring three Gigabit RJ45 ports and supporting PoE++ (50V DC, 1A) for simplified installation. It delivers up to 31W of PoE output, ensuring reliable power for connected devices. Its polycarbonate and metal enclosure ensures durability. Also included are two NFC pocket keyfobs, offering users a simple, tap-to-unlock alternative to smartphones and keycards. This combination enhances security and convenience, making it ideal for multi-user environments.

Effortless IntegrationThe UA-G3-SK fully integrates with UniFi Access, enabling easy user management, real-time access monitoring, and credential configuration. Admins can assign NFC keyfobs, mobile credentials, or Apple Touch Pass for seamless authentication. The system offers robust encryption to protect access data and ensures smooth operation with PoE-powered components. With quick installation and multiple mounting options, the kit is ideal for offices, coworking spaces, and rental properties, delivering modern, flexible, and secure access control with minimal setup. The UA-G3 Reader provides secure access through NFC, BLE, and Apple Touch Pass. It is PoE-powered with a maximum consumption of 5W, ensuring efficient operation. Built with a polycarbonate and glass enclosure, an aluminum alloy mount, and IP55 weatherproofing, it withstands outdoor conditions. The compact design supports wall and gangbox mounting (included), with optional angle and junction box mounts available. Its modern design blends seamlessly into any environment while providing secure, high-performance access control.

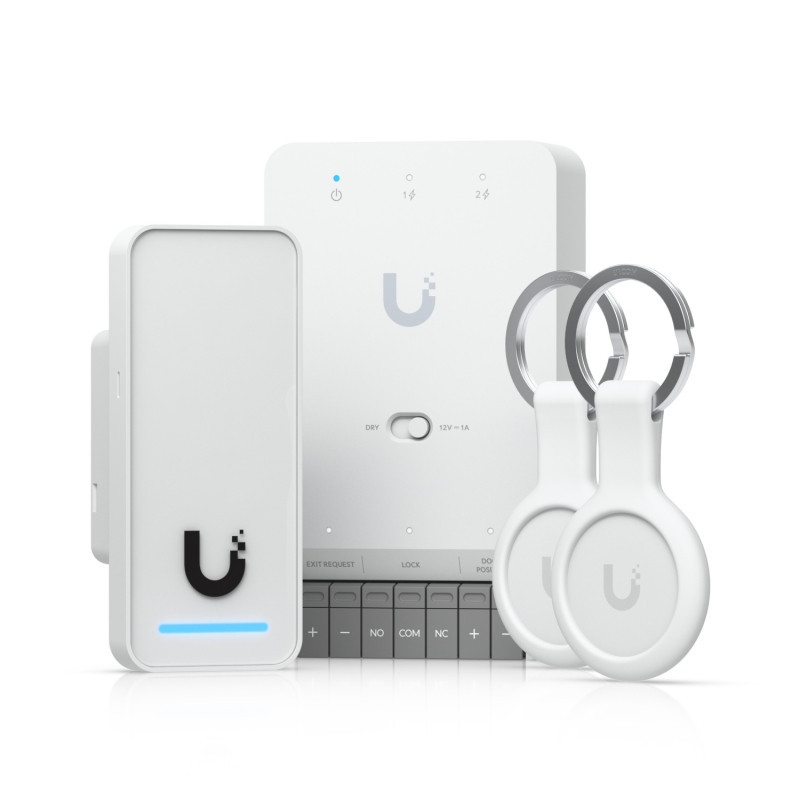

In the Box:Door Hub Mini x1 (1) G3 Reader x1 Pocket Keyfobs x2

Touch Pass: 10 free 1-year Touch Passes includedLearn More

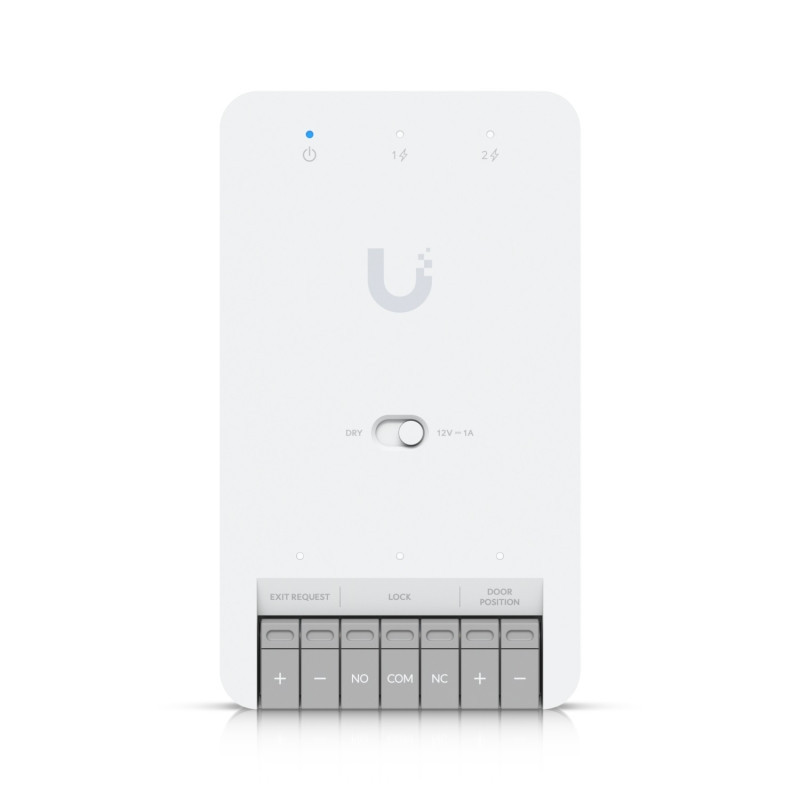

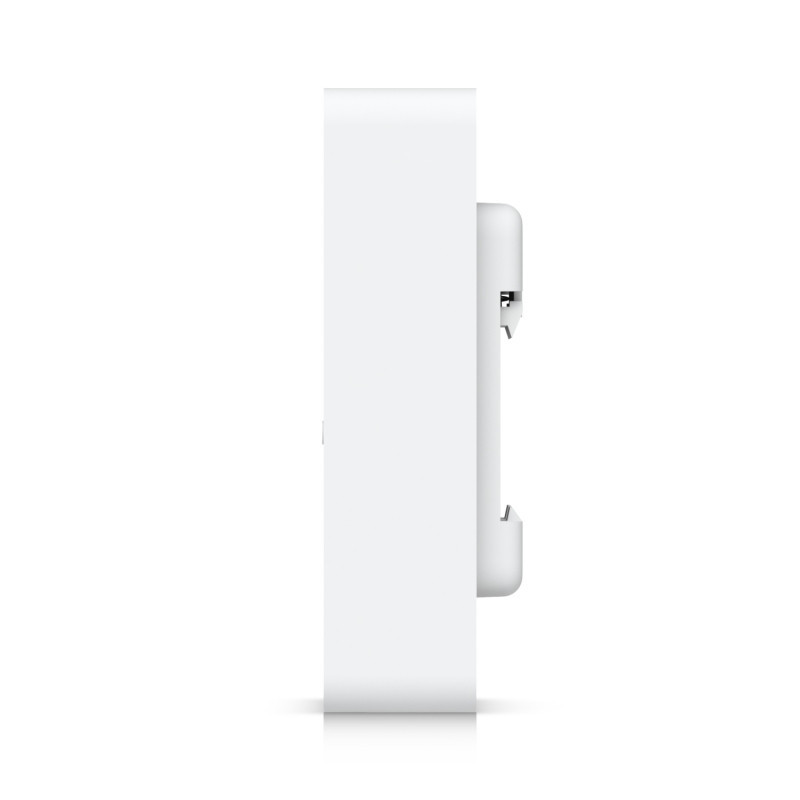

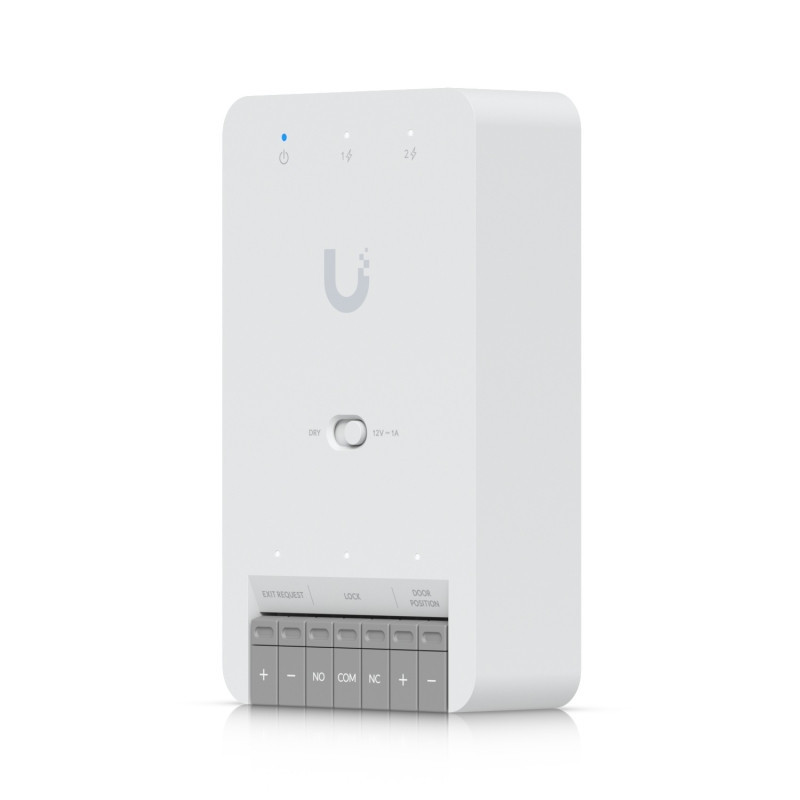

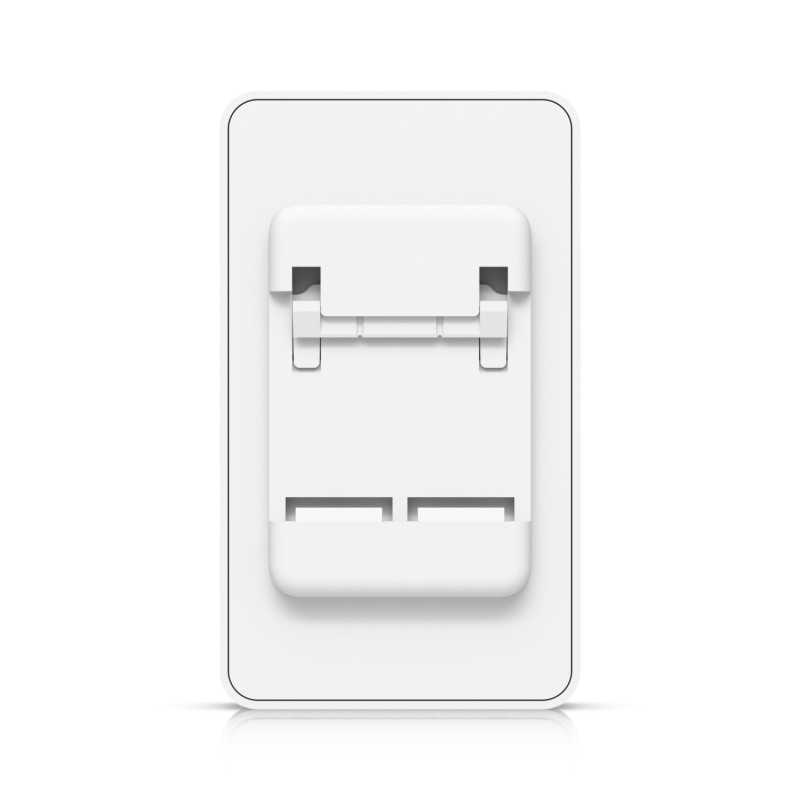

Door Hub Mini

Dimensions: 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1') Supported Doors: 1 Input Terminals: (1) Door Exit Request (1) Door Position Power Method: PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU NDAA Compliant: Yes UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I Weight: 190 g (6.7 oz) Enclosure Material: Polycarbonate, metal Mounting: DIN-rail (Included) Ambient Operating Temperature: 0 to 40° C (32 to 104° F) Ambient Operating Humidity: 5 to 90% noncondensing Networking Interface: (3) GbE RJ45 ports PoE Interface: (1) PoE++ input, 50V DC, 1A (2) PoE outputs, total 31W Max. Power Consumption: 19W (Without PoE output) 50W (With PoE output) Digital Input: Request to exit, door position sensor Dry Output Relay: 30V DC, 1A Wet Output Relay: 12V DC, 1A LEDs: B/WLearn MoreButtons: (1) Factory-reset (1) Dry/Wet switch Recommend Max. Cable Length: UA-Lock-Electric (400mA): 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft) UA-Lock-Magnetic-540kg (500mA): 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (262 ft) UA-Lock-Magnetic-270kg (800mA): 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft) Other locks (1A): 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft) PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade: Grade assignment: I Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Software Information: The software version can be checked athttps://unifi.ui.com

G3 Reader

Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4') NFC Card Keyfob Access: Yes Apple/Google Wallet: Yes Mobile Unlock: Yes Handwave Request to Exit: Yes Weatherproofing: IP55 NDAA Compliant: Yes UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I Weight: 82 g (2.9 oz) Enclosure Material: Polycarbonate, glass Mount Material: Aluminum alloy Mounting: In-wall, gang box (Included) Junction box (Optional) Indoor and Outdoor Use: Yes Ambient Operating Temperature: -30 to 45° C (-22 to 113° F) Ambient Operating Humidity: 5 to 90% noncondensing Networking Interface: (1) 10/100 MbE RJ45 port Connectivity: BLE 4.1 NFC Power Method: PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU Max. Power Consumption: 5W Supported Voltage Range: 48V DC ESD/EMP Protection: Air: ±15kV, contact: ±8kV Sensors: Proximity sensor Speaker: (1) Yes, 0.7W LEDs: R/G/B/WLearn MoreButton: (1) Factory-reset NFC Frequency: 13.56 MHz NFC Read Range: < 30 mm (1.18'') NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category used should match the transmission speed required at the installation site. The minimum conductor gauge allowed to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. CAN/ULC-60839-11-1 Grade: Grade assignment: I Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Software Information: The software version can be checked athttps://unifi.ui.com

Pocket Keyfob

Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29') Weight: 16 g (0.56 oz) Enclosure Material: Polycarbonate, stainless steel, silicone rubber Weatherproofing: IP54 NDAA Compliant: Yes Ambient Operating Humidity: 10 to 90% noncondensing Ambient Operating Temperature: -10 to 45° C (14 to 113° F) NFC Frequency: 13.56 MHz NFC Technology: ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol Certification: CE
