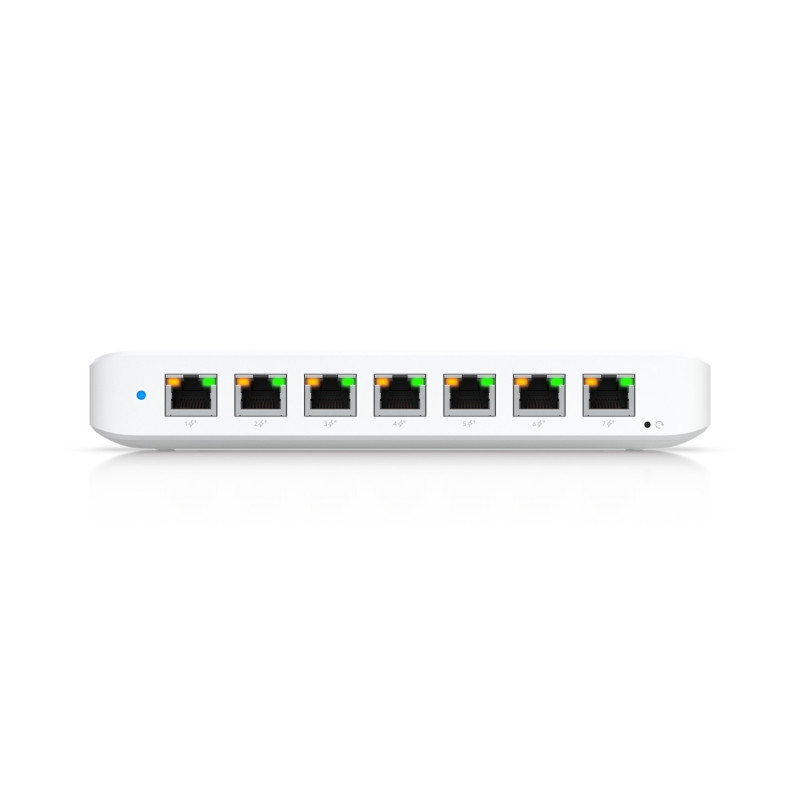

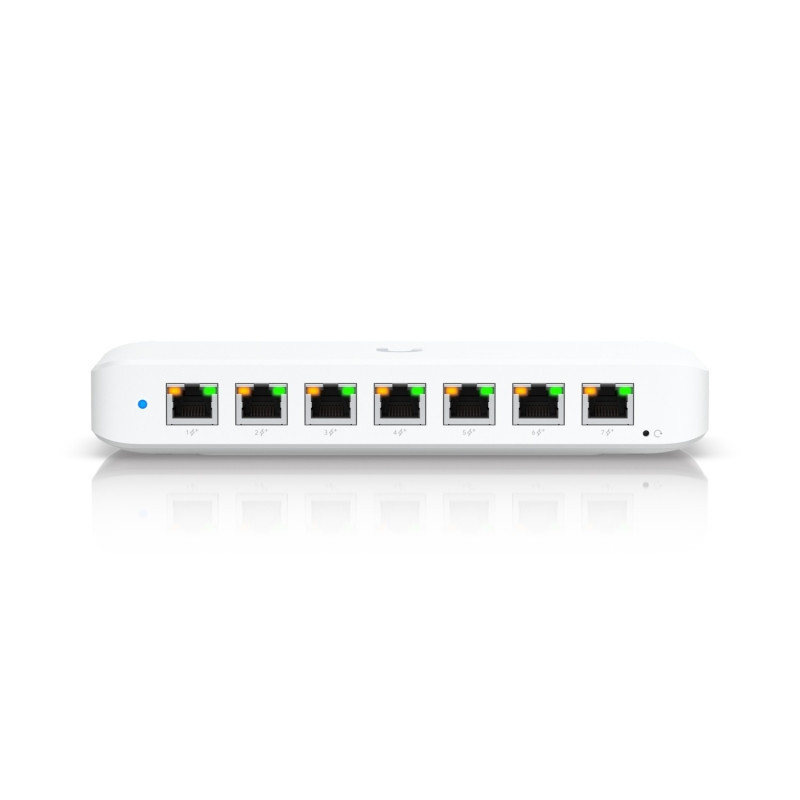

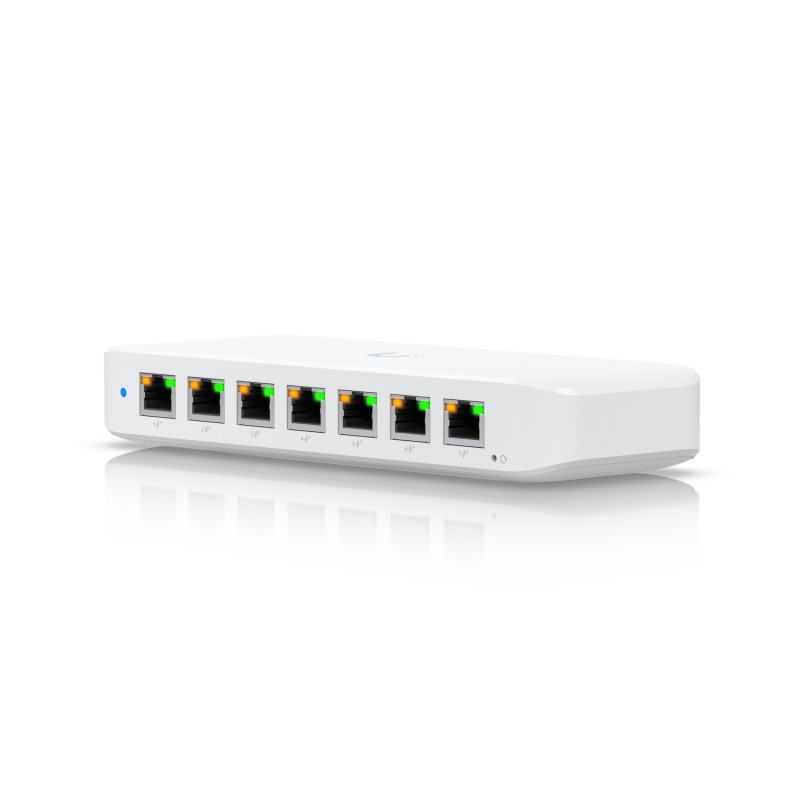

UBIQUITI Compact, Layer 2, 8-port GbE PoE UniFi Switch Ultra 60W

Compact Networking SolutionExperience the pinnacle of network performance in a compact form factor with the Ubiquiti USW-Ultra-60W, an 8-port, Layer 2 Gigabit PoE switch. USW-Ultra-60W is the ideal solution for small businesses, home offices, and other environments where space is limited and reliable PoE connectivity is essential. Its compact design, powerful PoE capabilities, and advanced features make it an ideal choice for powering and managing your connected devices.

Key featuresSeven GbE PoE+ output ports deliver power to your PoE-powered devices, while the one GbE PoE++ input port provides power for the switch itself. When PoE++ is used to power the switch, the total available PoE power reaches 42W, when PoE+ is used at the input, the total PoE power reaches 17W, and when standard PoE is used, the total PoE power reaches 8W. If the switch is powered by the included power adapter, the total PoE power reaches 52W, providing enough power for the connected devices. USW-Ultra-60W operates as a Layer 2 switch, supporting advanced features like VLAN, port mirroring, and port bonding for enhanced network management and control. This switch is a space-saving solution that can be easily mounted on a wall or flat surface, making it ideal for deployments where space is limited.

Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3') Port Layout: 1 GbE RJ45, 8 (7 PoE+; 1 PoE++ input) Max. PoE Output: Up to PoE+ Total PoE Availability: PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W Form Factor: Compact desktop, wall, magnetic

Performance

Switching Capacity: 16 Gbps Total Non-Blocking Throughput: 8 Gbps Forwarding Rate: 12 Mpps Supported VLANs: 256 MAC Address Table Size: 4,000

Layer 2 Features

STP RSTP: Yes Egress Rate Limit: Yes Flow Control: Yes Storm Control: Yes Multicast Broadcast Rate Limiting: Yes Port Isolation: Yes Port Mirroring: Yes Jumbo Frames: Yes Loop Protection: Yes

Hardware

PoE Ports: PoE+: 7 PoE++: 1

Max. PoE Wattage per Port by PSE: PoE+: 30W

Max. Power Consumption: 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 60W (Including PoE Output) with 60W AC adapter input

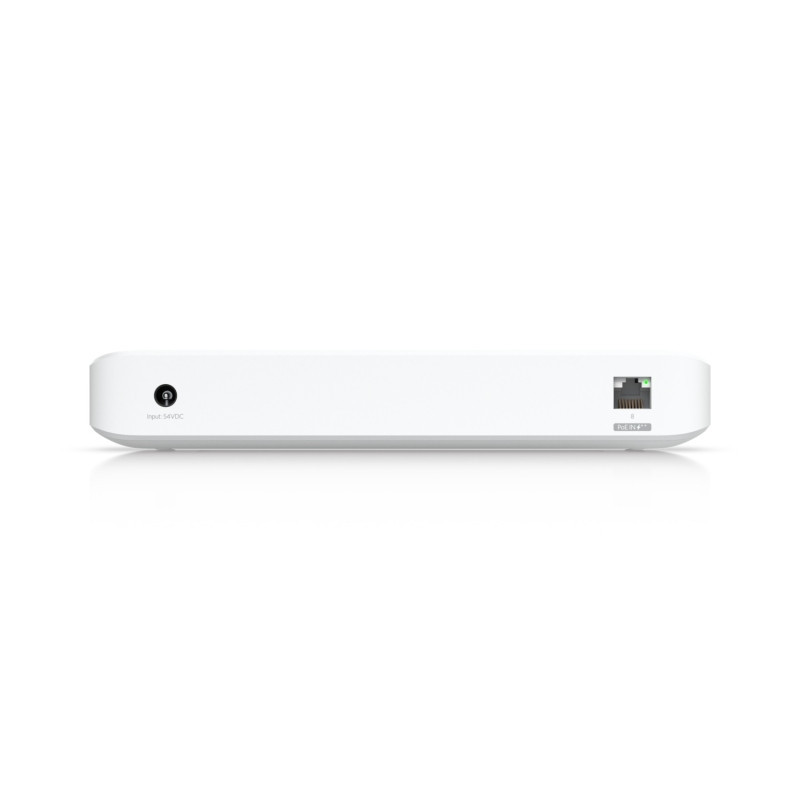

Power Method: (1) AC/DC adapter (Included) (1) PoE++

Power Input Method: DC Input PoE

Power Supply: AC/DC, external, 60W Supported Voltage Range: 50—57V DC/PoE Management: Ethernet Heat Dissipation (Excluding PoE Output): 30,708 BTU/hr 27,296 BTU/hr Weight: Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz) Enclosure Material: Polycarbonate

Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F)

Ambient Operating Humidity: 10 to 90% non-condensing Certifications: CE, FCC, IC
