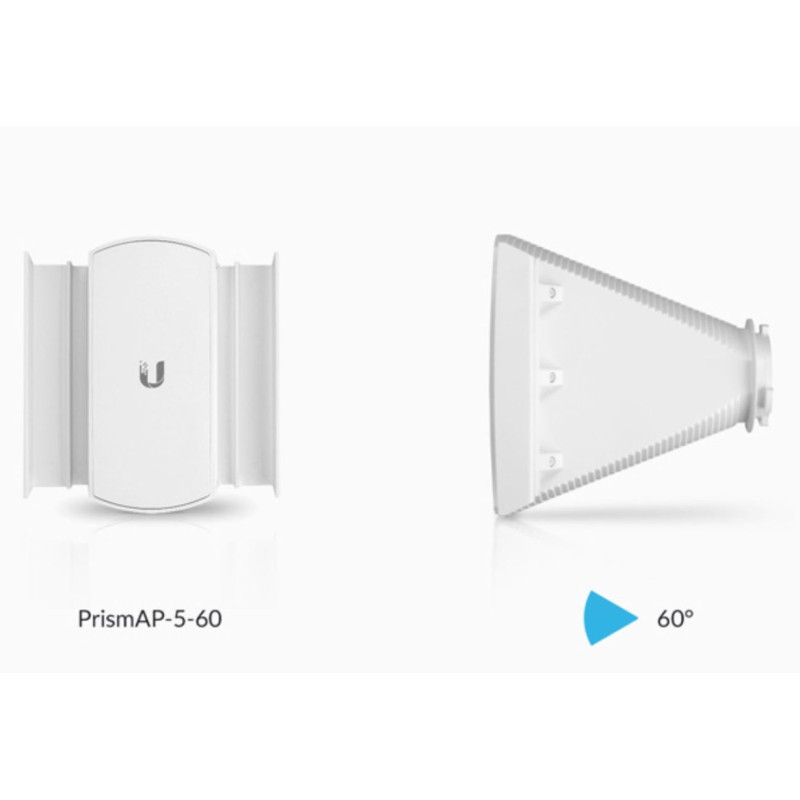

UBIQUITI airMAX® ac Beamwidth Sector Isolation Antenna Horn, 60 degrees

Modular Design With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environmental needs. The PrismStation 5AC and soStations use horn antenna sectors designed for increased co-location performance without sacrificing gain. Scalability Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology. Enhanced Co-Location Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements. Dimensions 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73') Weight 720g (25.39 oz) Supported Frequency Range 5.15 - 5.85 GHz Gain: 16 dBi HPOL Beamwidth: 60° VPOL Beamwidth: 60° Elevation Beamwidth: 30° Maximum VSWR: 2:1 Wind Survivability: 200 km/h (125 mph) Wind Loading: 50 N @ 200 km/h (11.2 lbf @ 125 mph) Polarization: Dual-Linear Cross-Pol Isolation: 17 dB The PrismAP is compatible with the following models: • IsoStation™ IS-M5 • IsoStation IS-5AC • PrismStation™ PS-5AC IsoStation and/or PrismStation IS NOT INCLUDED !!!
