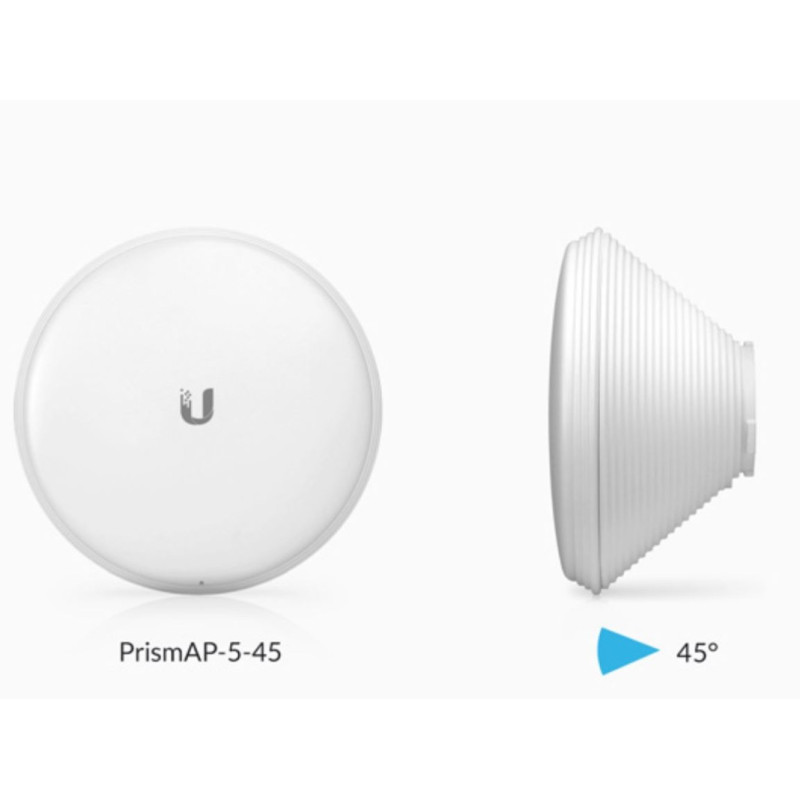

UBIQUITI airMAX® ac Beamwidth Sector Isolation Antenna Horn, 45 degrees

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environmental needs. The PrismStation 5AC and soStations use horn antenna sectors designed for increased co-location performance without sacrificing gain.

Scalability

Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Dimensions: Ø 175 x 184 mm (6.9 x 7.2') Weight: 1.34 kg (47.23 oz) Supported Frequency Range: 5.15 - 5.85 GHz Gain: 15.5 dBi HPOL Beamwidth: 45° VPOL Beamwidth: 45° Elevation Beamwidth: 45° Maximum VSWR: 1.7:1 Wind Survivability: 200 km/h (125 mph) Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph) Polarization: Dual-Linear Cross-Pol Isolation: 17 dB

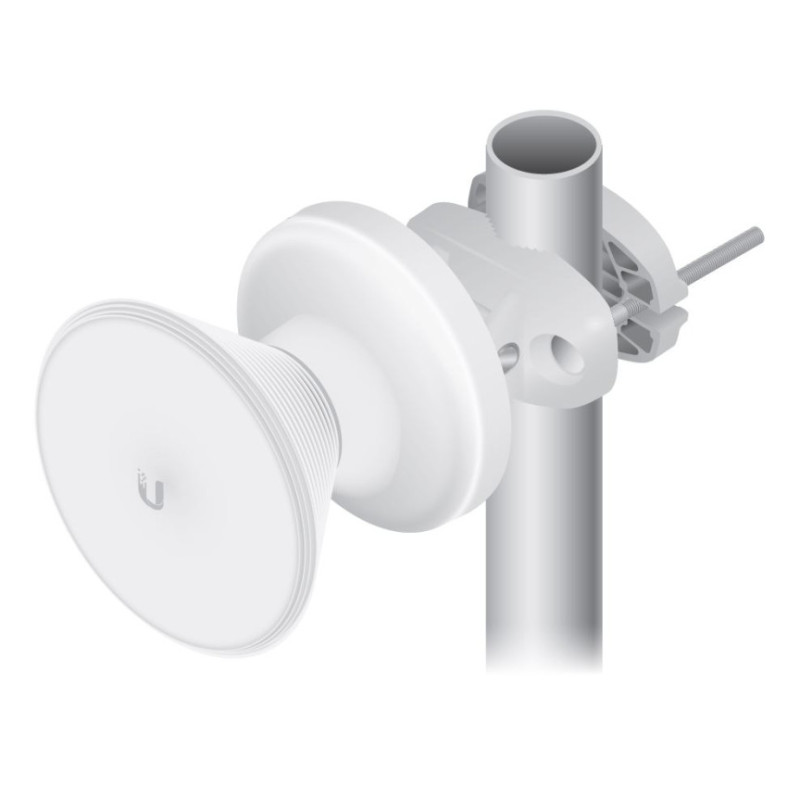

The PrismAP is compatible with the following models: • IsoStation™ IS-M5 • IsoStation IS-5AC • PrismStation™ PS-5AC

IsoStation and/or PrismStation IS NOT INCLUDED !!!
