UBIQUITI airCube-ISP - airMAX Home Wi-Fi Access Point

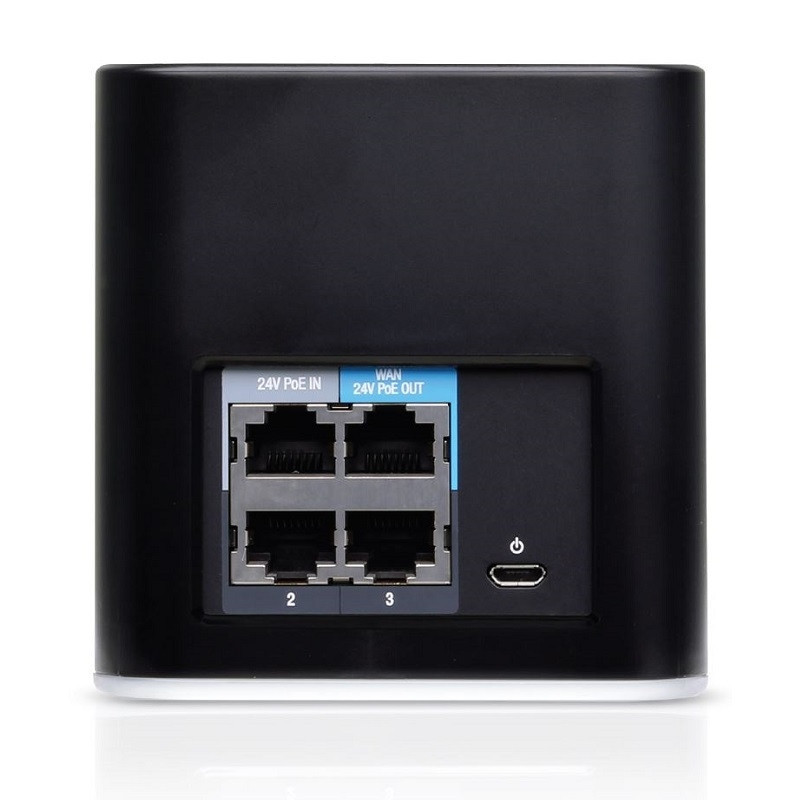

• (4) 10/100 Fast Ethernet Ports • 24V PoE Passthrough for airMAX CPE • 802.11n, 2x2 MIMO Technology • Up to 300 Mbps in the 2.4 GHz Radio Band • Powered by 24V Passive PoE or 2A Micro USB Adapter (Not Included)

UNMS Support

Ubiquiti Network Management Software simplifies remote network management.

Super Antenna

Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

24V PoE Passthrough

The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

UMobile Support

Use the intuitive UMobile app for iOS and Android to install and configure airCube.

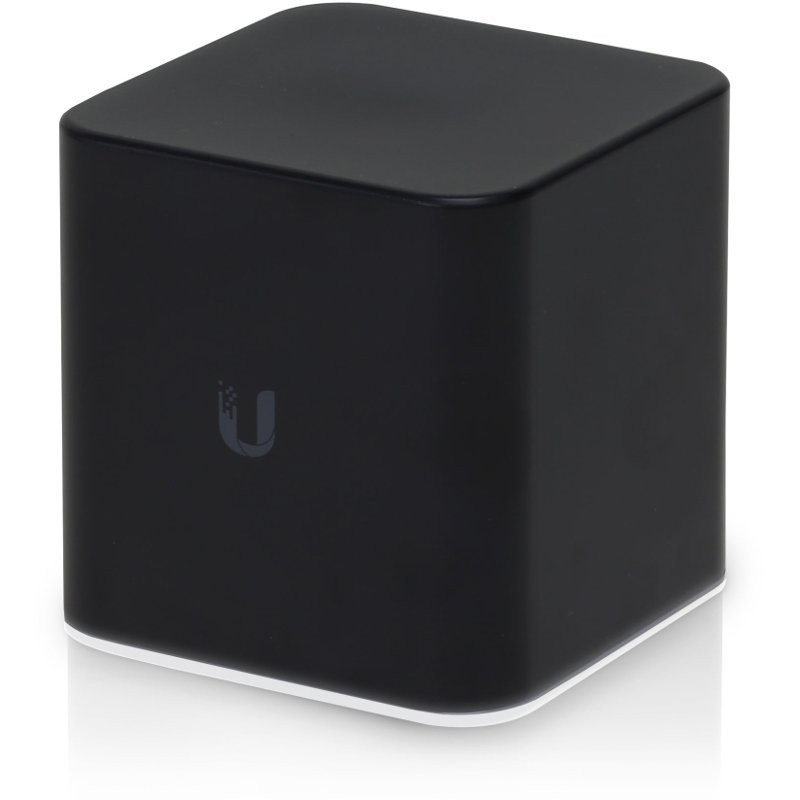

Sleek Design

The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.

Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51') Weight: 215 g (7.58 oz) Power Supply: 5V Power Method: PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included) Supported Power Voltage: 4.95-5.05V Max. Power Consumption: 5W PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port Management Interface: Wi-Fi / Ethernet Networking Interface: (4) 10/100 Fast Ethernet Ports LED: Status Max. TX Power: 22 dBm Antenna Gain: 4 dBi Max. Speeds: 300 Mbps Enclosure Characteristics: Black Plastic ESD/EMP Protection: ±24 kV RJ-45 Interface Operating Temperature: -10 to 50° C (-14 to 122° F) Operating Humidity: 5 to 95% Noncondensing Certifications: CE, FCC, IC
