UBIQUITI airCube-AC - airMAX Home Wi-Fi Access Point

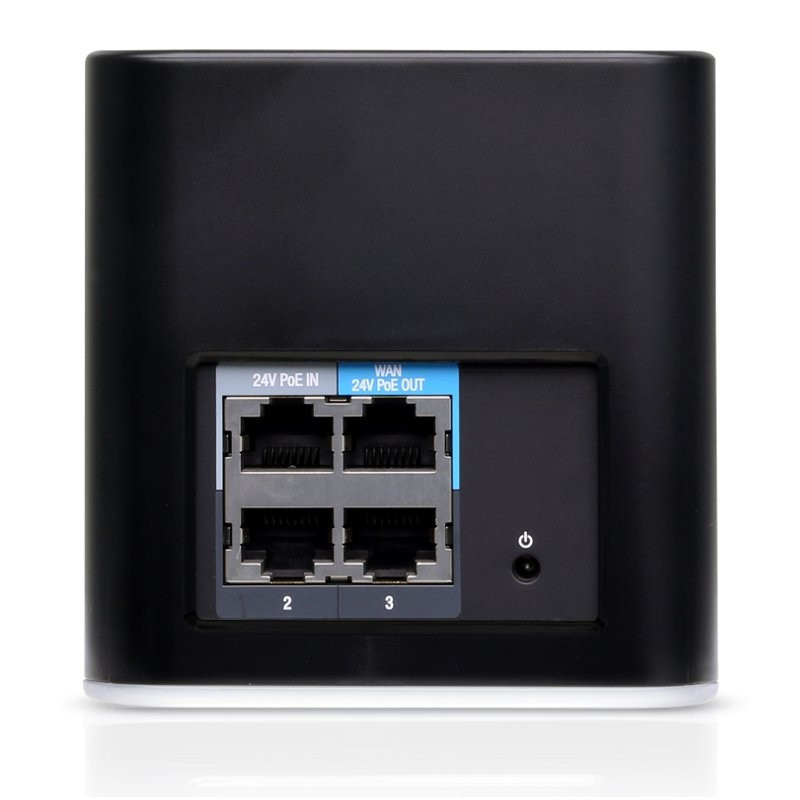

• (4) Gigabit Ethernet Ports • 24V PoE Passthrough for airMAX CPE • Dual-Band, 802.11ac, 2x2 MIMO Technology • Up to 300 Mbps in the 2.4 GHz Radio Band • Up to 866.7 Mbps in the 5 GHz Radio Band • Powered by 24V Passive PoE or Included Power Adapter

UNMS Support

Ubiquiti Network Management Software simplifies remote network management.

Super Antenna

Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

24V PoE Passthrough

The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

UMobile Support

Use the intuitive UMobile app for iOS and Android to install and configure airCube.

Sleek Design

The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.

Dimensions: 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51') Weight: 280 g (9.88 oz) Management Interface: Wi-Fi / Ethernet Networking Interface: (4) Gigabit Ethernet Ports LED: Status Antenna Gain: 4 dBi @ 2.4 GHz, 5 dBi @ 5 GHz Max. Speeds: 300 Mbps @ 2.4 GHz, 866.7 Mbps @ 5 GHz, Max. Power Consumption: 8.5W Max. TX Power: 22 dBm Power Supply: DC24V Power Method: 24VDC, 0.83A; PoE 24V In on LAN Port 1 PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port Supported Power Voltage: 22-26V Operating Temperature: -10 to 50° C (-14 to 122° F) Operating Humidity: 5 to 95% Noncondensing ESD/EMP Protection: ± 24 kV Contact / Air Certifications: CE, FCC, IC
