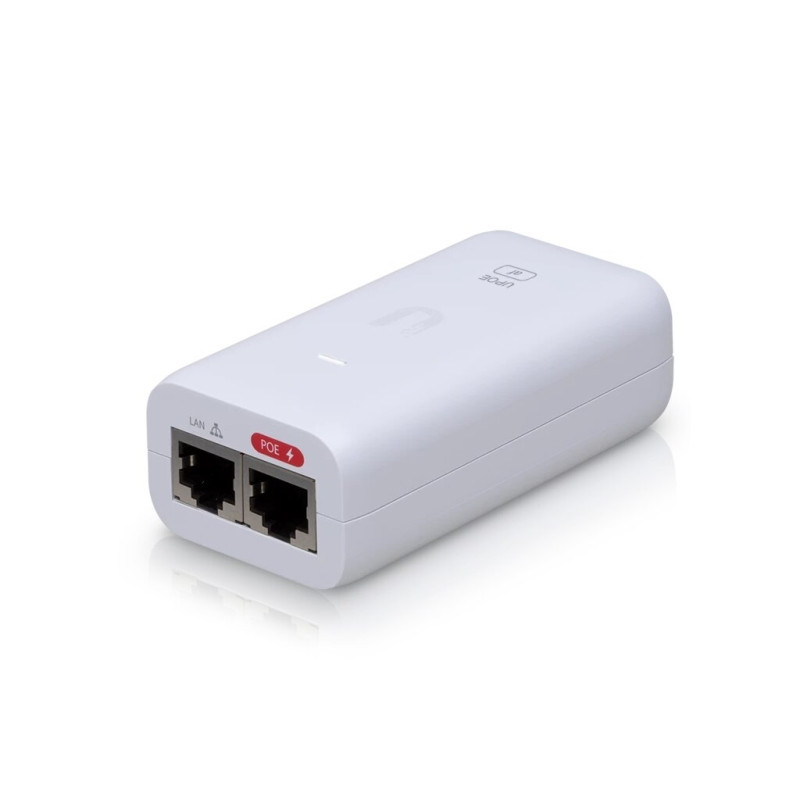

UBIQUITI 802.3af Supported 0.32A Gigabit PoE Injector
Product reference:
18-U-POE-af
UBIQUITI 802.3af Supported 0.32A Gigabit PoE Injector
UBIQUITI 802.3af Supported 0.32A Gigabit PoE Injector
Product reference:
18-U-POE-af
UBIQUITI 802.3af Supported 0.32A Gigabit PoE Injector
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Not available
| Dimensions | 86 x 46 x 33 mm (3.39 x 1.81 x 1.30') |
| Weight | 100g (3.53oz) |
| Output Voltage | 48VDC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 500mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | - |
| 4-Pair Powering | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 5 to 90% Non-condensing |

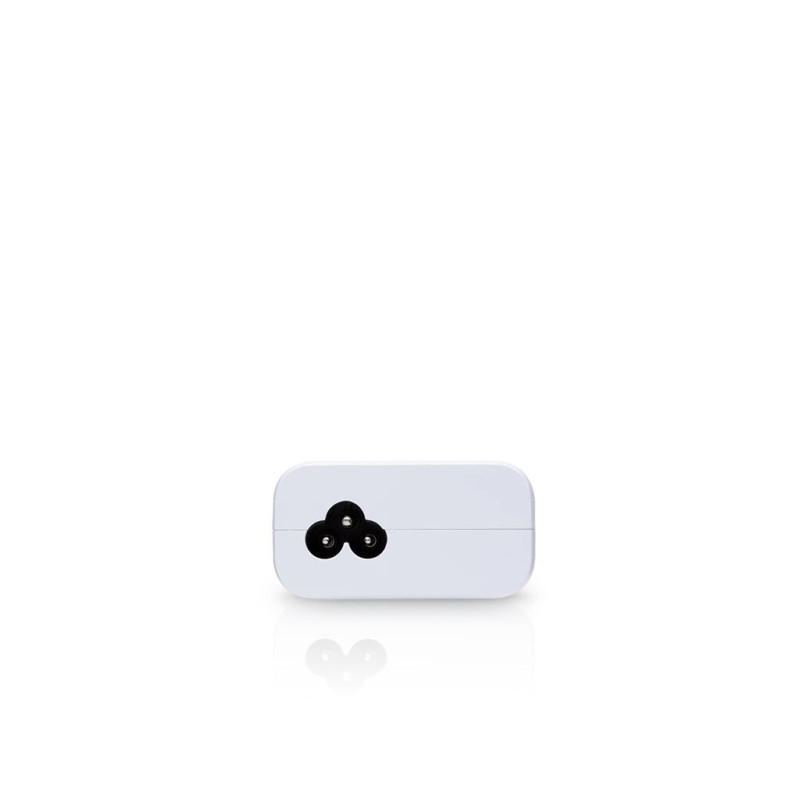

| AC Connector | IEC-320 C6 |
| Date IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Date |
| Shunt Capacitance | <5 pF date |
| Response Time | <1ns |
| Certifications | CE, FCC, IC, UL |
