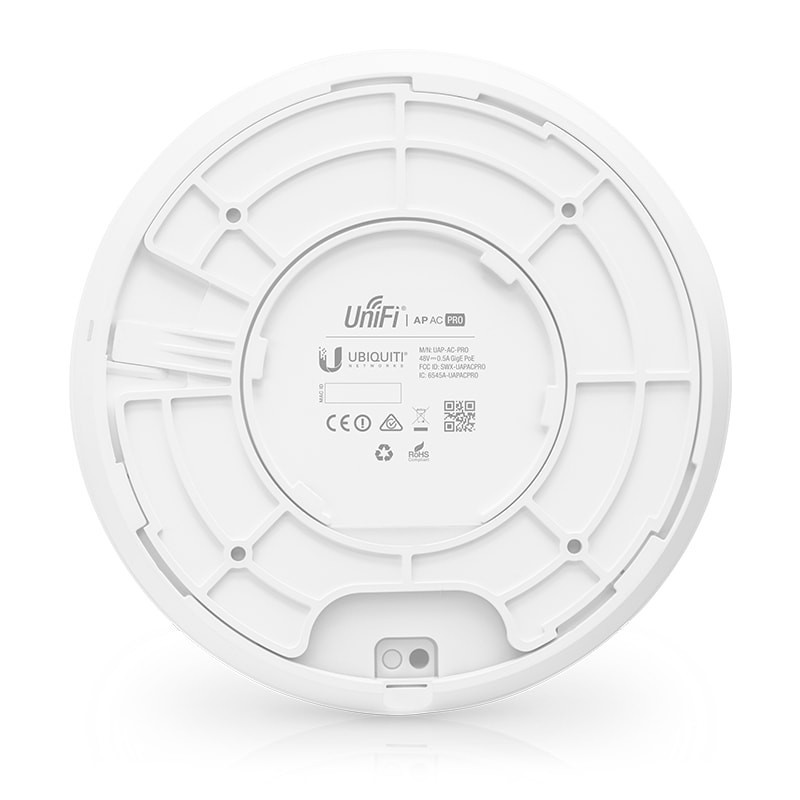

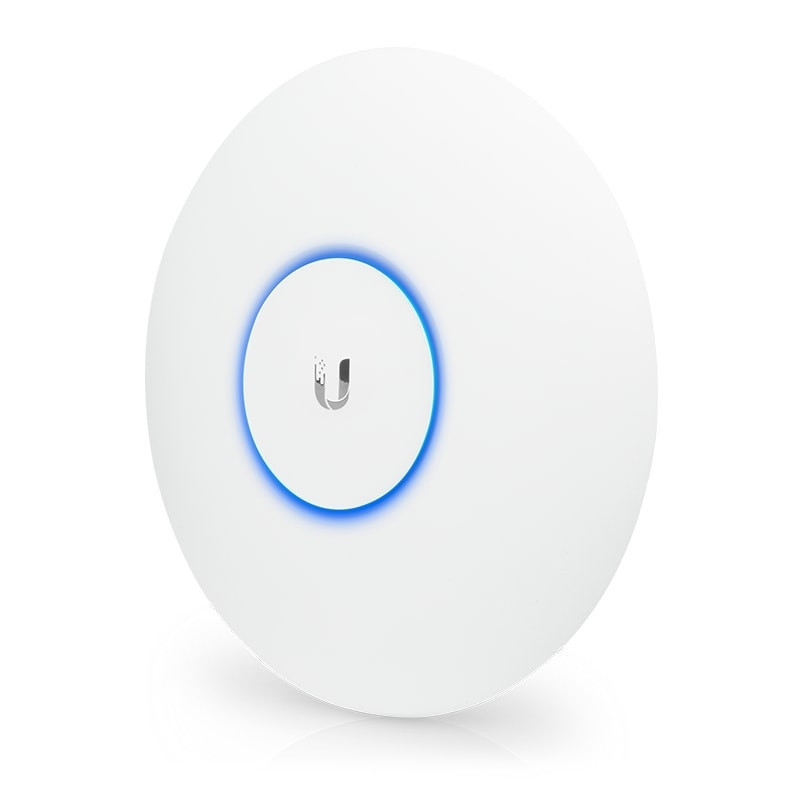

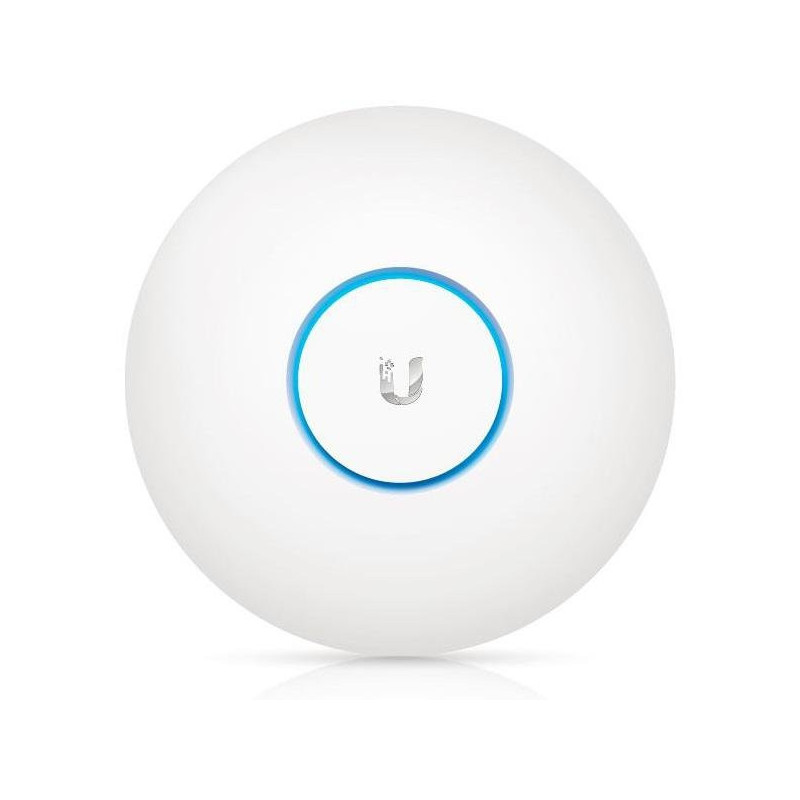

UBIQUITI 802.11ac Dual-Radio Pro Access Point, with PoE adapter included (UAP-AC-PRO)

Scalable Enterprise Wi-Fi Management

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual-Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Features

Save Money and Save TimeUnlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Powerful HardwareThe UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.

Intuitive UniFi Controller SoftwareConfigure and manage your APs with the easy-to-learn user interface.

ExpandableUnlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three-pack) and expand to thousands while maintaining a single unified management system.

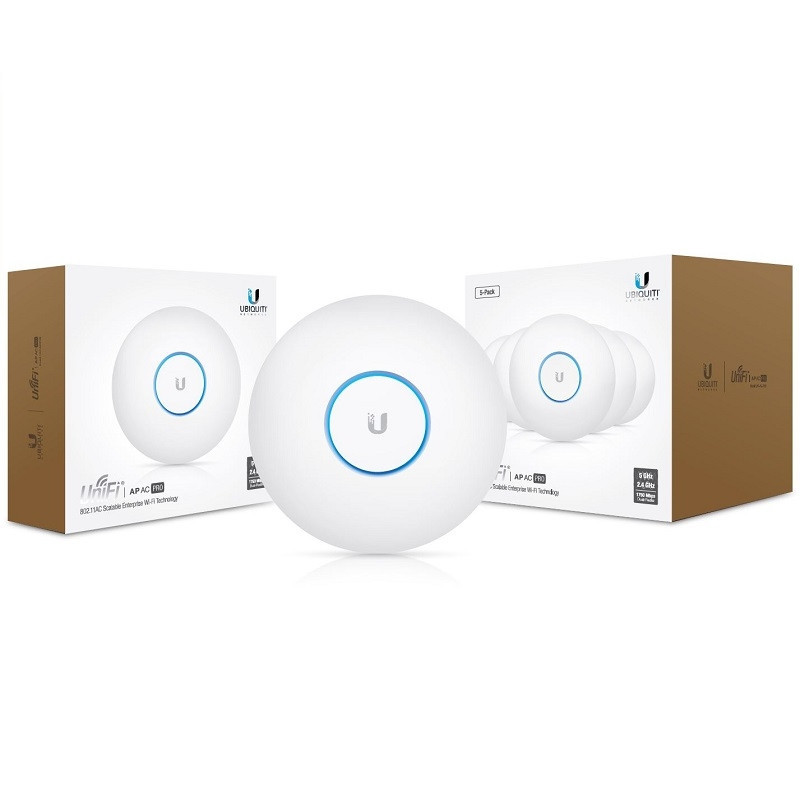

Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance. Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five-packs.

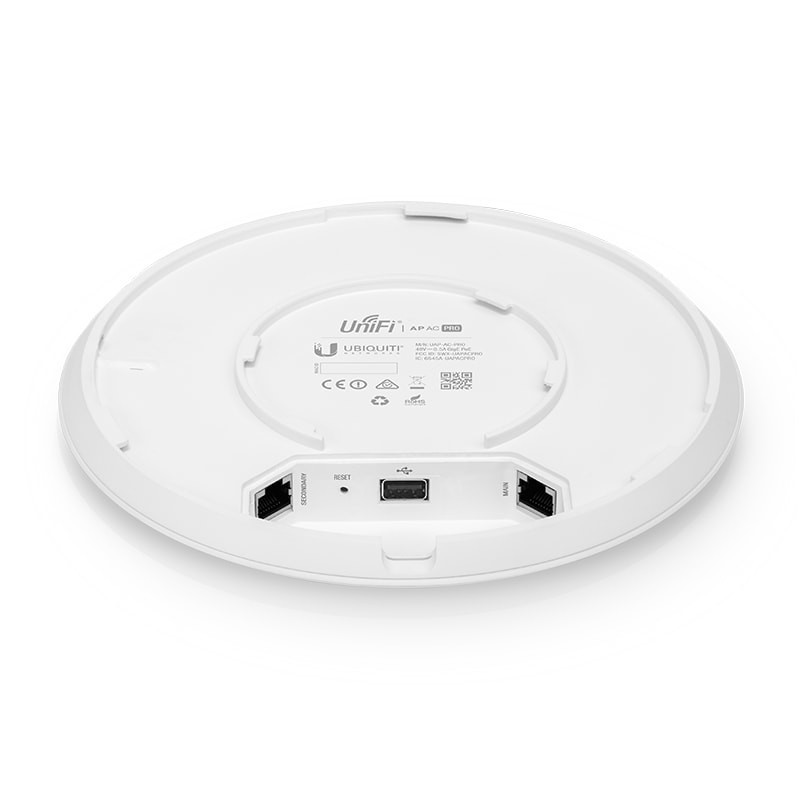

Dimensions: 196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38') Weight: 350 g (12.4 oz) (With Mounting Kits - 450 g (15.9 oz)) Networking Interface: (2) 10/100/1000 Ethernet Ports Port: (1) USB 2.0 Port Buttons: Reset Power Method: Passive Power over Ethernet (48V), 802.3af/802.3at Supported (Supported Voltage Range: 44 to 57VDC) Power Supply: UniFi Switch (PoE) Power Save: Supported Maximum Power Consumption: 9W Maximum TX Power: 2.4 GHz - 22 dBm 5 GHz - 22 dBm Antennas: (3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi Wi-Fi Standards: 802.11 a/b/g/n/ac Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) BSSID: Up to 8 per Radio Mounting: Wall/Ceiling (Kits Included) Operating Temperature: -10 to 70° C (14 to 158° F) Operating Humidity: 5 to 95% Noncondensing Certifications: CE, FCC, IC

Advanced Traffic Management

VLANs:802.1Q Advanced QoS: Per-User Rate Limiting Guest Traffic Isolation: Supported WMM: Voice, Video, Best Effort, and Background Concurrent Clients: 250+

Supported Data Rates (Mbps)

Standard / Data Rates 802.11ac / 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) 802.11n / 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11a / 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11g / 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b / 1, 2, 5.5, 11 Mbps
