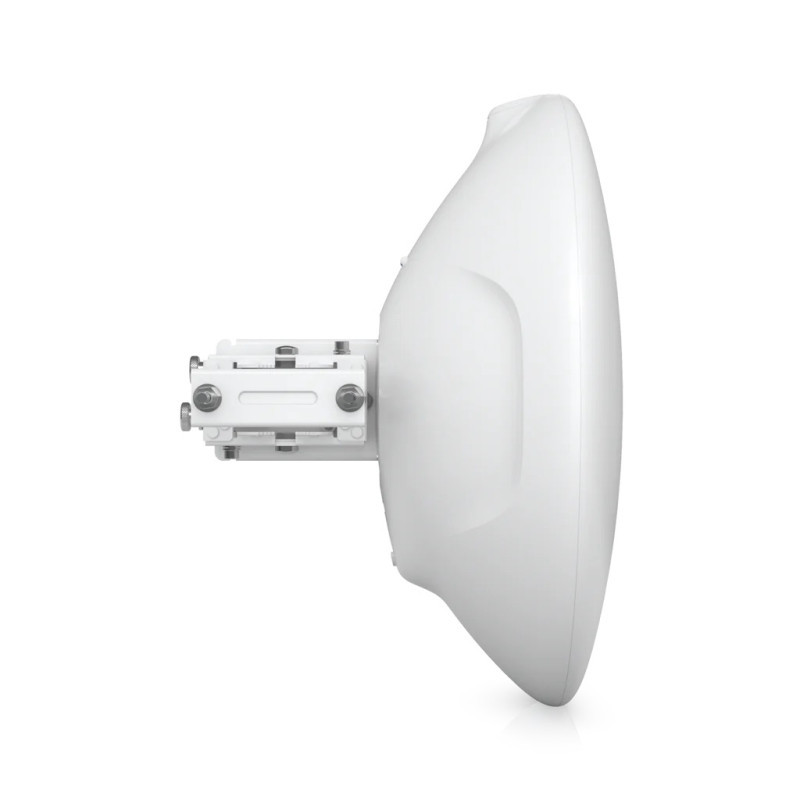

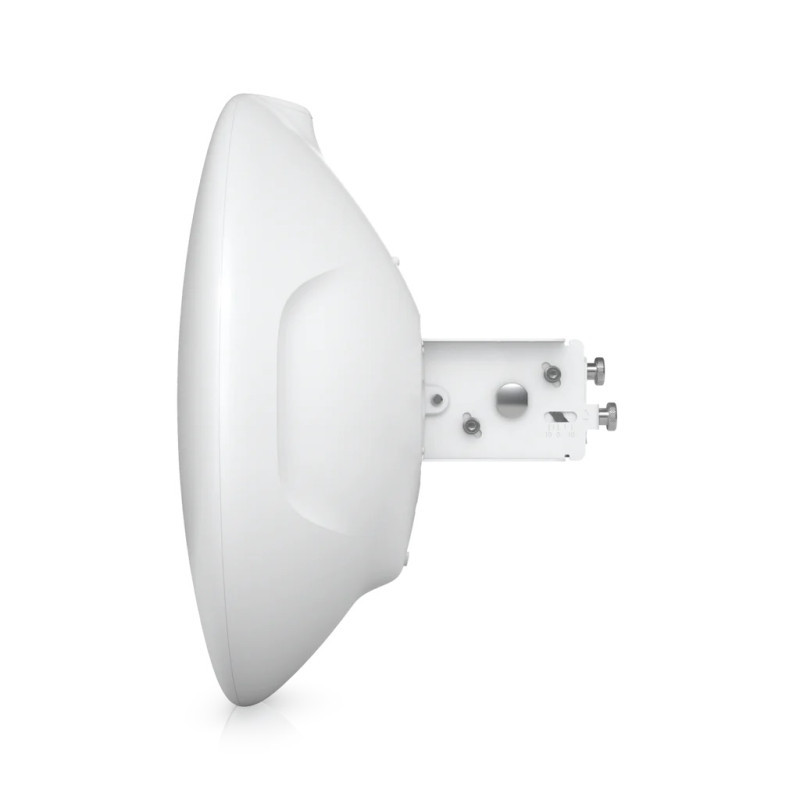

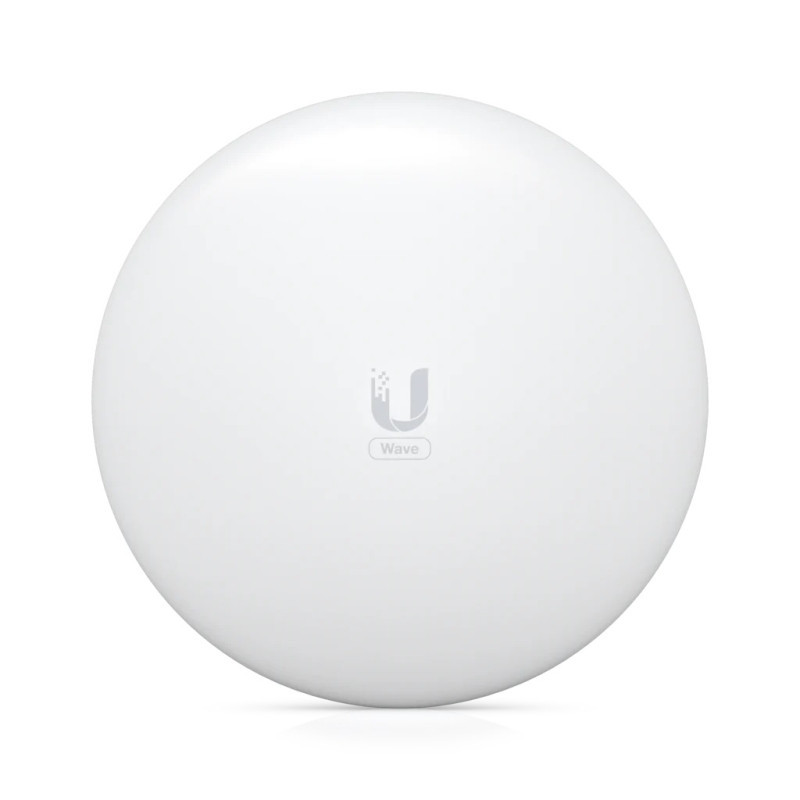

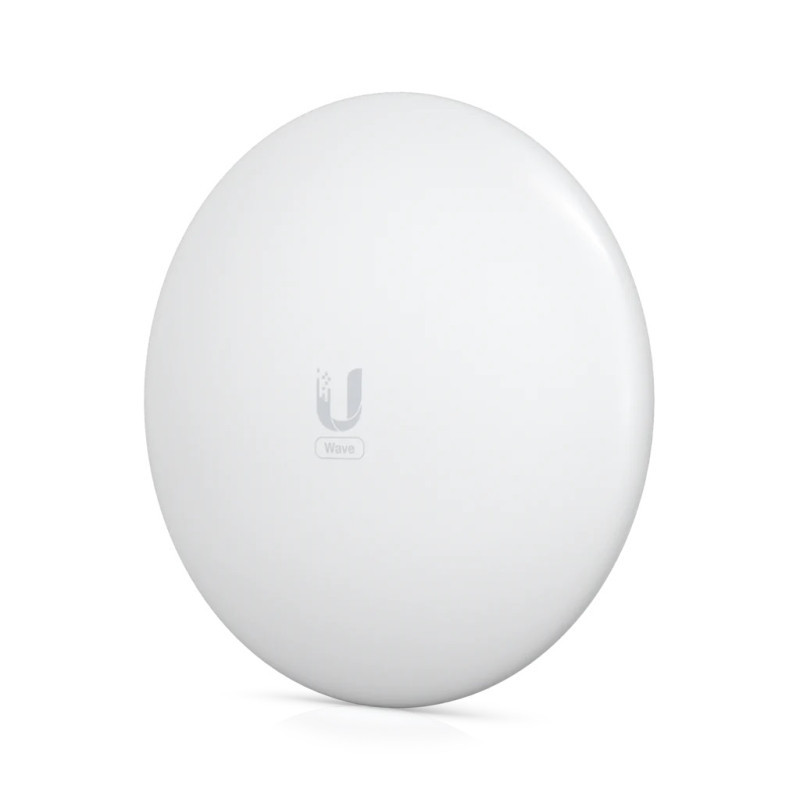

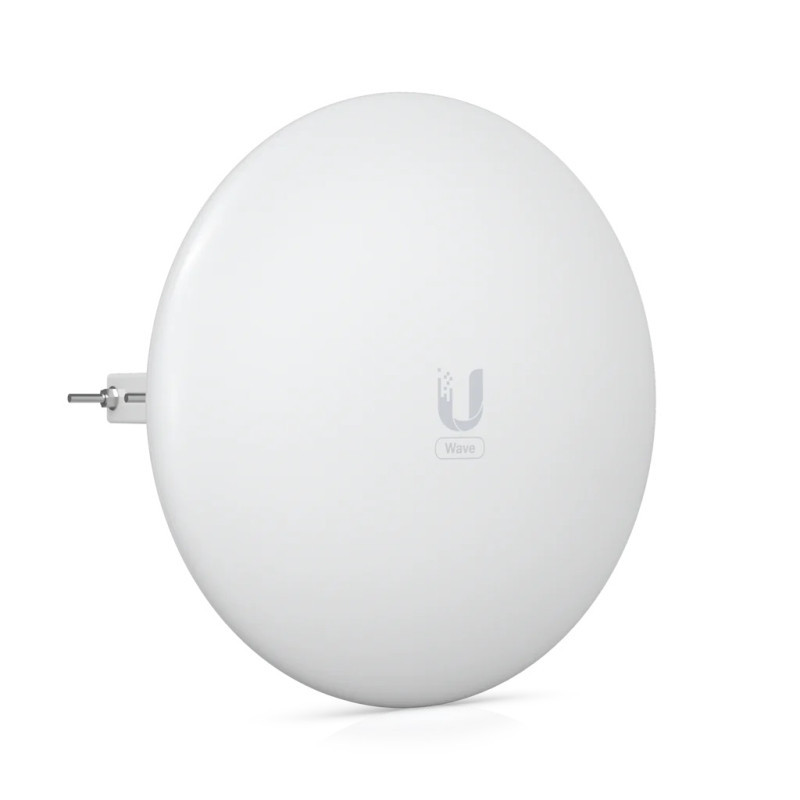

UBIQUITI 60 GHz PtMP station, Wave-LR
Product reference:
18-Wave-LR
UBIQUITI 60 GHz PtMP station, Wave-LR
UBIQUITI 60 GHz PtMP station, Wave-LR
Product reference:
18-Wave-LR
UBIQUITI 60 GHz PtMP station, Wave-LR
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
60 GHz PtMP station powered by Wave Technology.
Can connect to aWave APand deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
- 5 GHz backup radio
- Link range: up to 8 km
- Router mode support
- Integrated GPS antenna
- Link planning support viaISP Design Center
| Mechanical | |
|---|---|
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5') |
| Weight | Without mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb) |
| Enclosure material | UV stabilized plastic |
| Mounting material | Galvanized steel |
| Pole mount diameter | 25 to 76.2 mm (1 to 3') on pipe outer diameter |
| Wind loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Memory | DDR3L 512MB |
| Network interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP station |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Software management | Bluetooth management for easy setup over UISP app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | 8+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz*Depends on regulatory region. |
| Channel bandwidth | 2160, 1080MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz*Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 46 dBi |
| Azimuth and elevation beamwidth | 3 dB: 0.8° 6 dB: 1.1° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz*Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80MHz |
| Modulation | BPSK (1 2), QPSK (1 2), QPSK (3 4), 16QAM (1 2), 16QAM (3 4), 64QAM (2 3), 64QAM (3 4), 64QAM (5 6), 256QAM (3 4), 256QAM (5 6), 1024QAM (3 4), 1024QAM (5 6) |
| Antenna gain | 22 dBi |
| Polarization | Dual-linear |
| Cross-pole isolation | 20 dB |
| Azimuth and elevation beamwidth | 3 dB: 8 to 10° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Will | White: towards 5GHz Blue: towards 60GHz |
