UBIQUITI 5-Port Layer 2 Gigabit Switch with PoE Support
Product reference: 18-USW-FLEX

UBIQUITI 5-Port Layer 2 Gigabit Switch with PoE Support

UBIQUITI 5-Port Layer 2 Gigabit Switch with PoE Support

Product reference: 18-USW-FLEX

UBIQUITI 5-Port Layer 2 Gigabit Switch with PoE Support

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
118,10
120,51 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

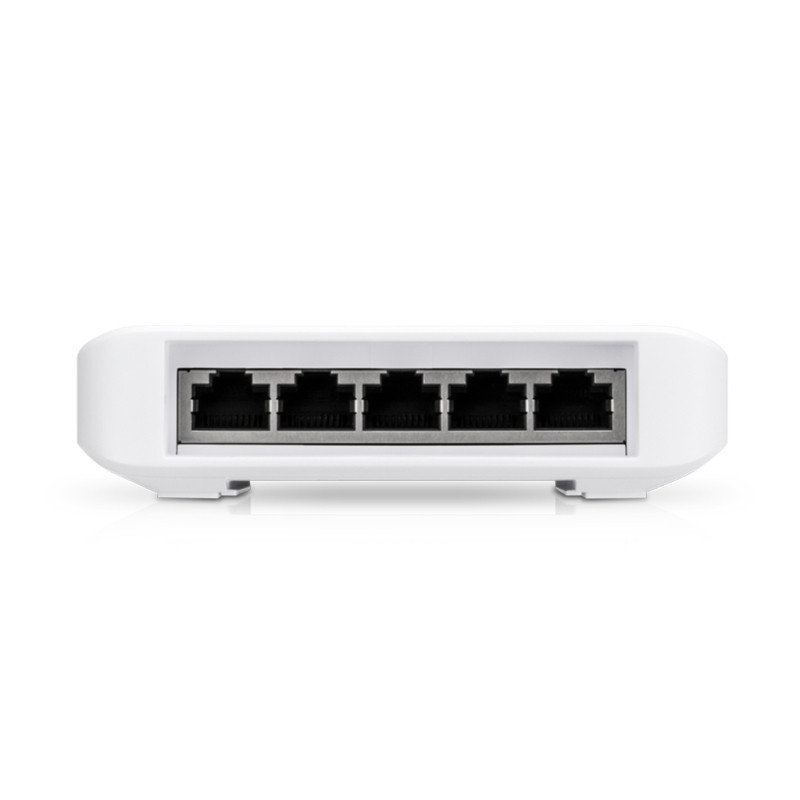

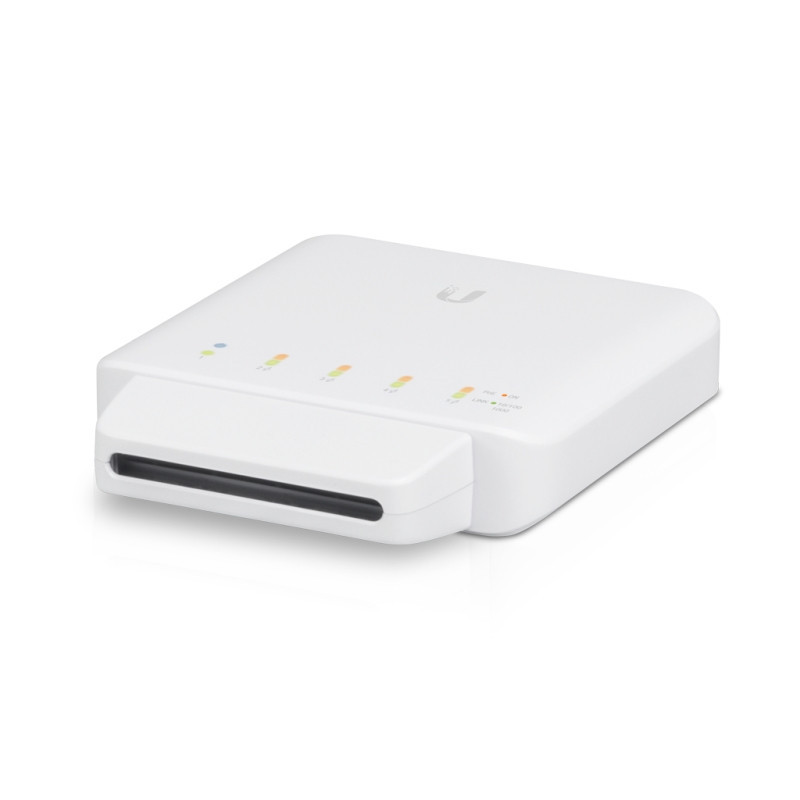

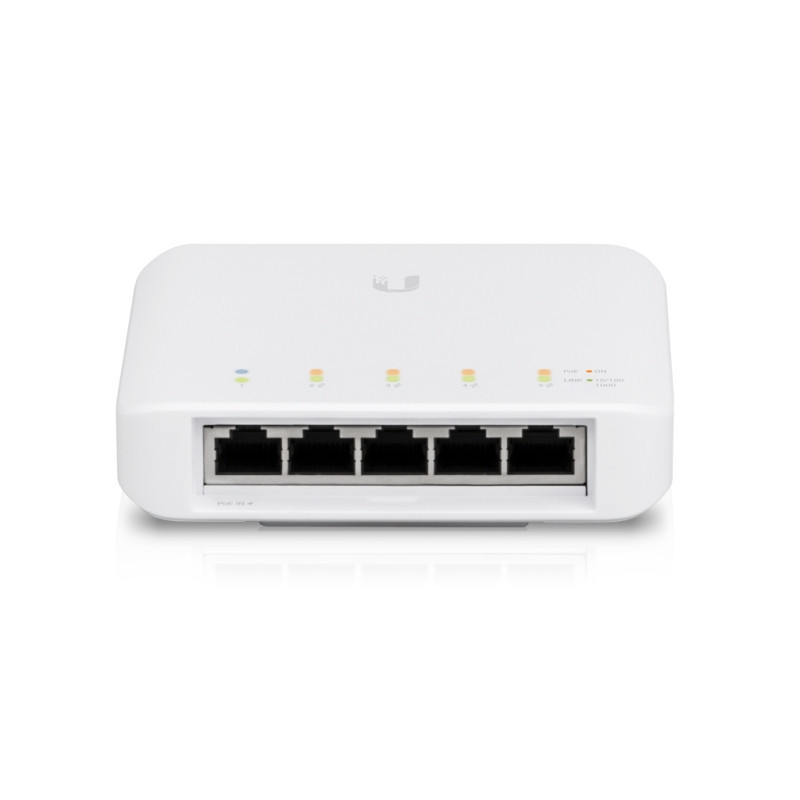

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

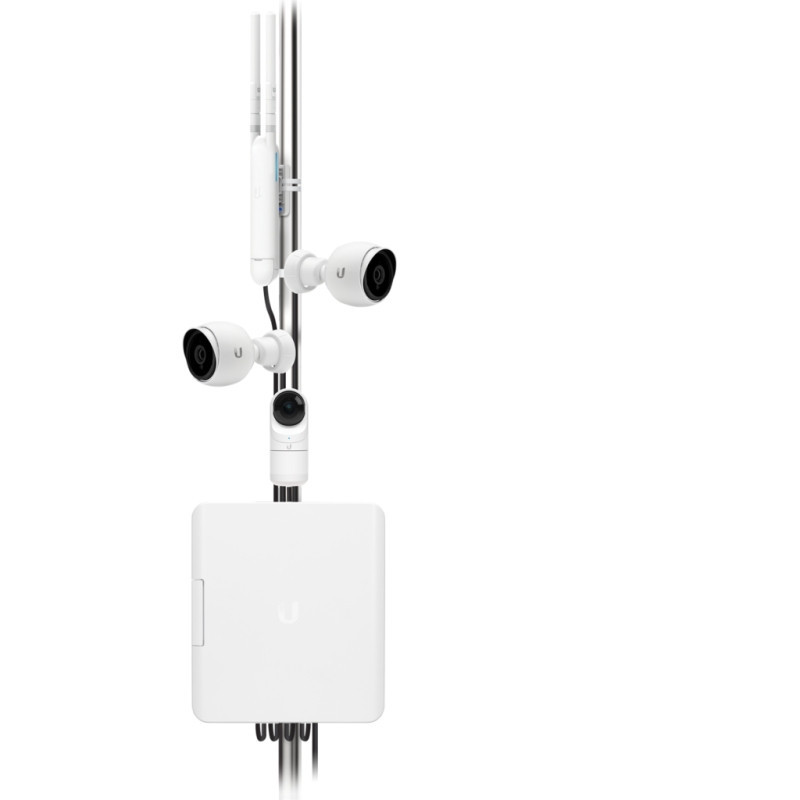

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has a weatherproof housing and offers versatile mounting options.


Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

























































Dimensions 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10')
Weight 230g (8.11oz)
Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports
Management Interface Ethernet In-Band
Power Method (Port 1) PoE Mode 1: PoE Mode 2: PoE Mode 3: 802.3af/at (Pins 1, 2+; 3, 6-) 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 54V / 1.1A PoE Adapter
PoE Out (Ports 2-5) 802.3af (Pins 1, 2+; 3, 6-)
Max. Power Consumption (Excluding PoE Output) 7W
Supported Voltage Range 802.3af Mode 802.3at/bt Mode 44V - 57V 50V - 57V
LEDs System RJ45 Data Ports Status PoE; Link/Speed/Activity
ESD/EMP Protection ± 16kV Air, ± 16kV Contact
Operating Temperature -40 to 55° C (-40 to 131° F)
Operating Humidity 5 to 95% Non-condensing
Certifications CE, FCC, IC
