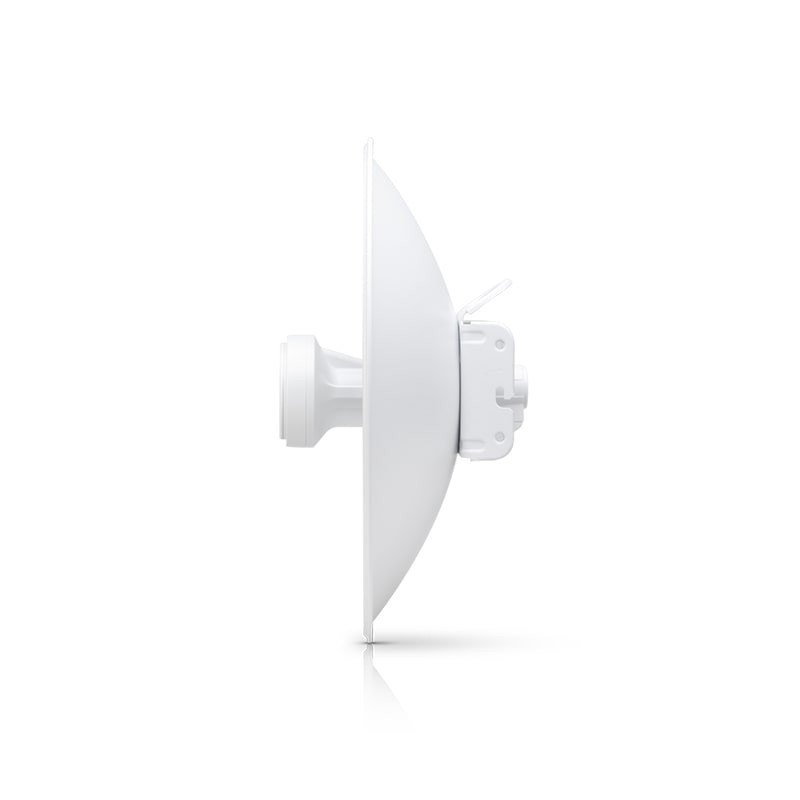

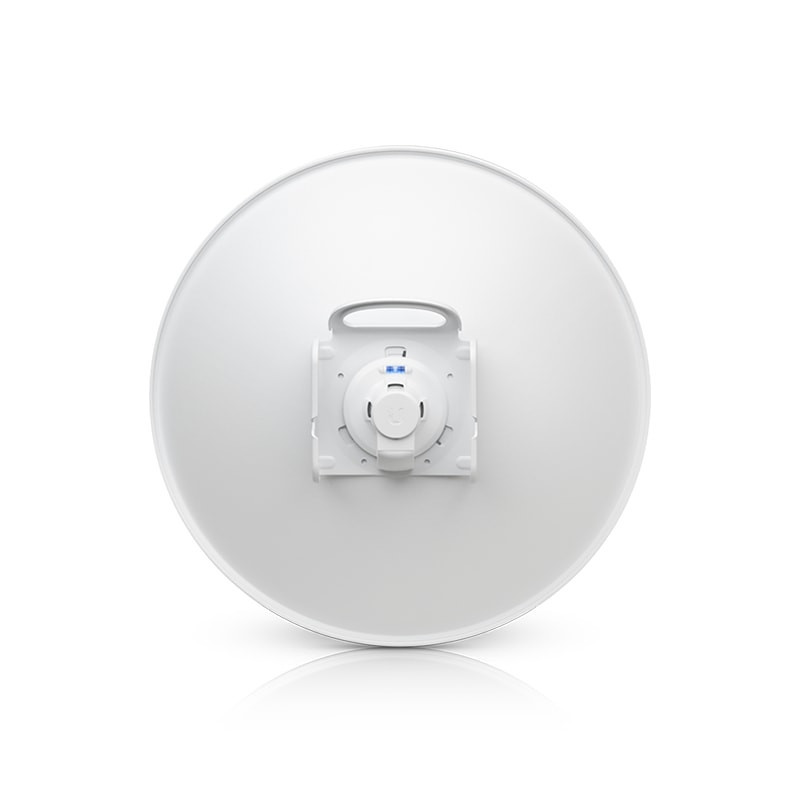

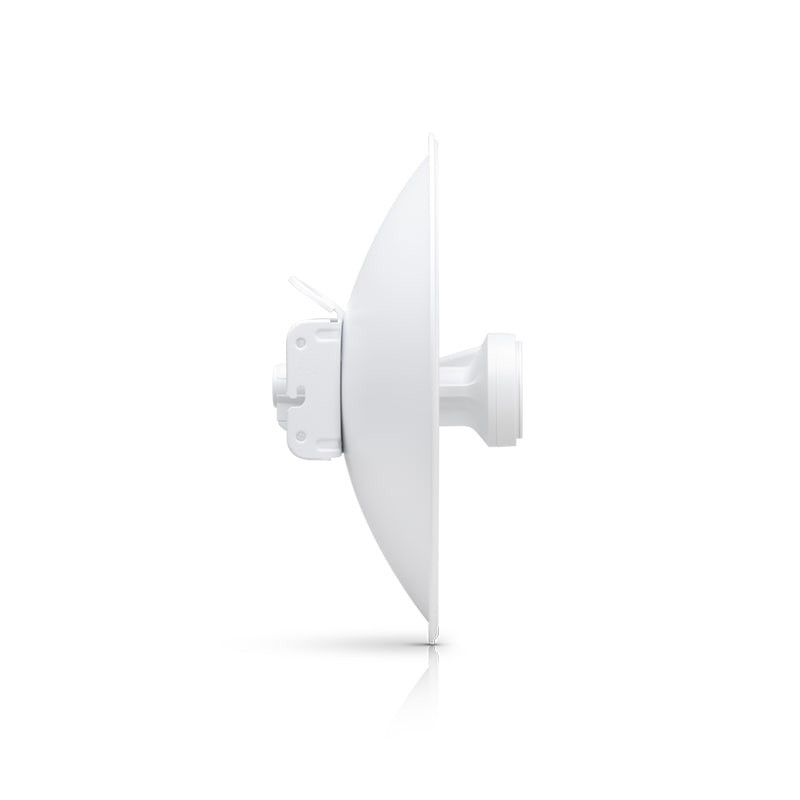

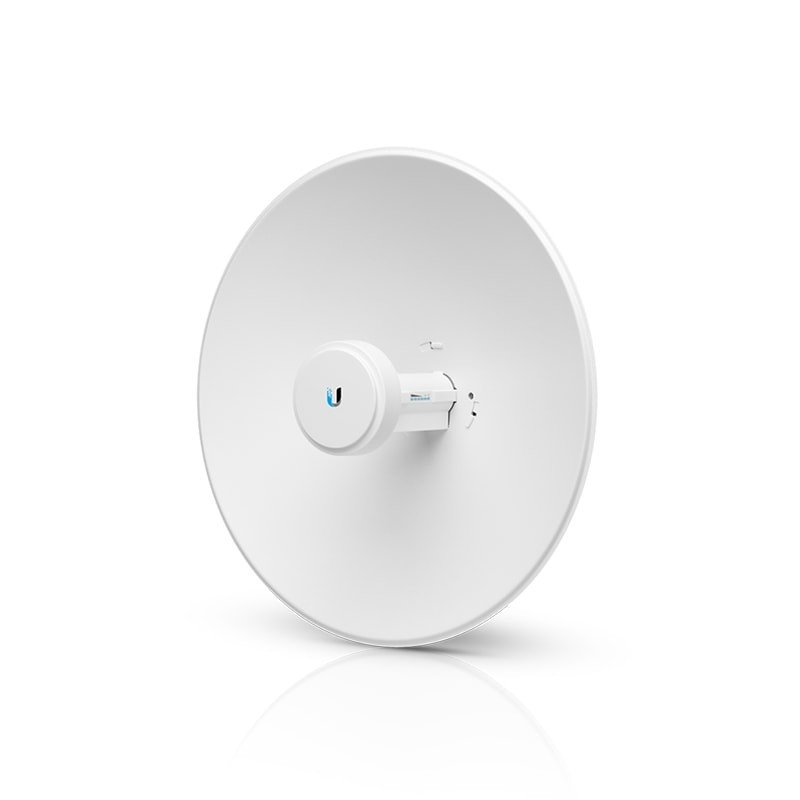

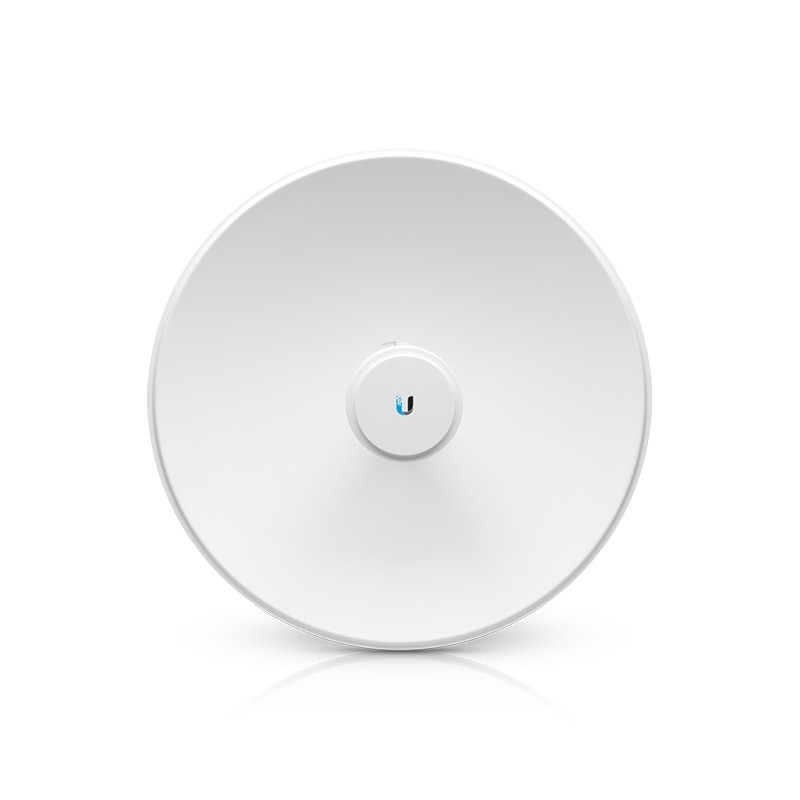

UBIQUITI 2.4 GHz High-Performance airMAX® ac Bridge with Dedicated Wi-Fi Management

The latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management.

Improved Noise Immunity

The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 2AC is versatile and cost-effective to deploy.

Management Wi-Fi Radio

The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection

Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation

The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna 'Beam' Performance

The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC's excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Operating Frequency (MHz): 2412-2472

Management Radio (MHz): 5150-5250

Dimensions (with Radome): 420 x 420 x 289 mm; (16.54 x 16.54 x 11.38') Weight (Mount Included): 1.795 kg (4.809 lbs) Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included) Max. Power Consumption: 7.5W Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range: 22 to 26VDC Gain: 18 dBi Networking Interface: (1) 10/100/1000 Ethernet Port Processor Specs: MIPS 74Kc Memory: 64 MB LEDs: Power, Ethernet, (4) Signal Strength

Channel Sizes: PtP Mode - 10/20/40 MHz PtMP Mode - 10/20/40 MHz

Enclosure Characteristics: Antenna Feed - Outdoor UV Stabilized Plastic Dish Reflector - Powder-Coated SPCC

Mounting: Pole-Mounting Kit (Included) Wind Loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph) Wind Survivability: 200 km/h (125 mph) ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Operating Temperature: -40 to 70° C (-40 to 158° F) Operating Humidity: 5 to 95% Noncondensing RoHS Compliance: Yes Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test: IEC 68-2-6 Temperature Shock Test: IEC 68-2-14 UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 Certifications: CE, FCC, IC
