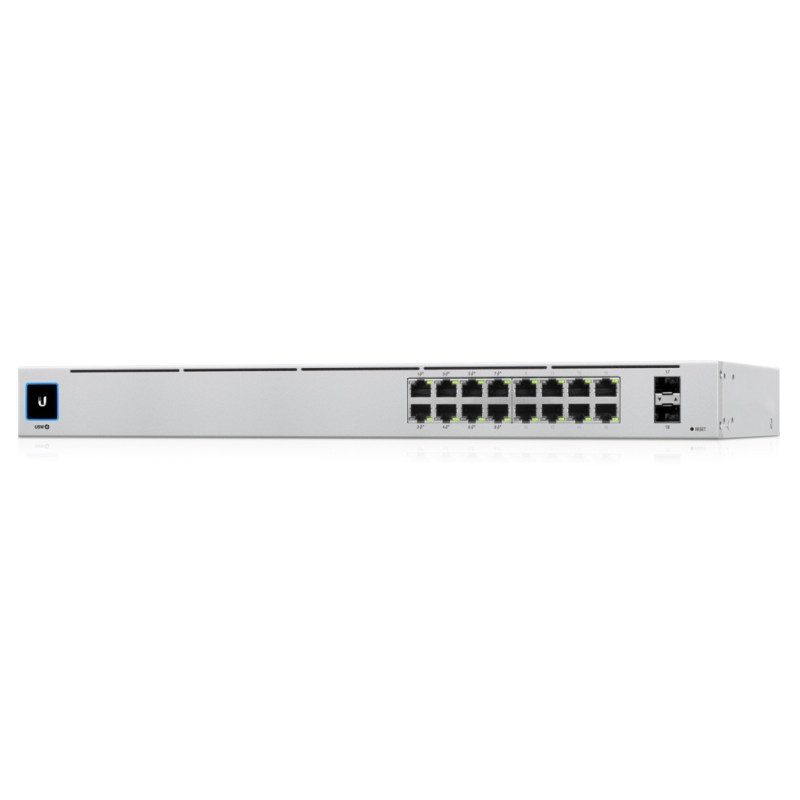

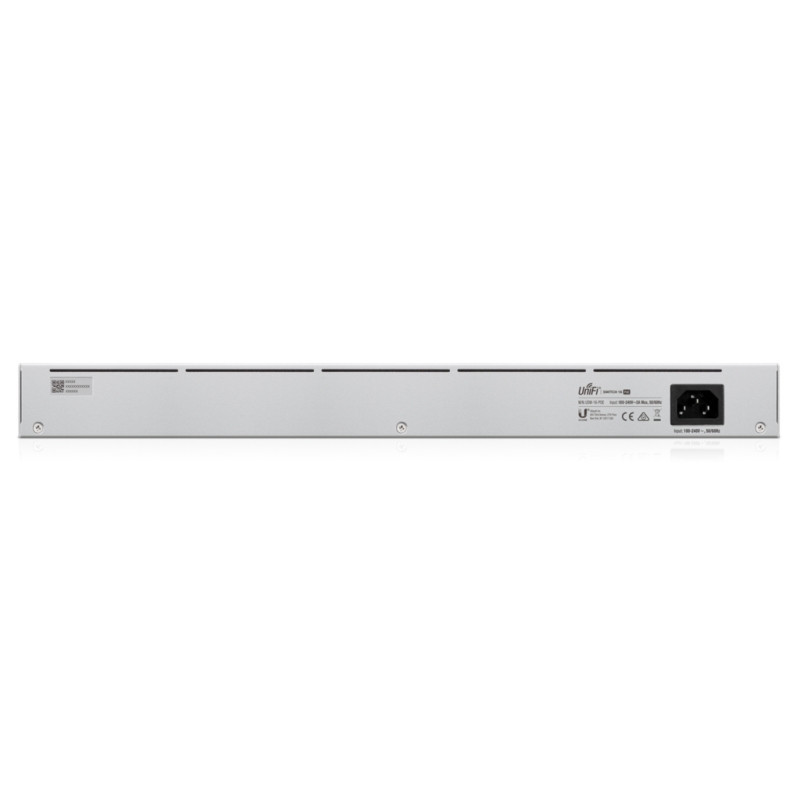

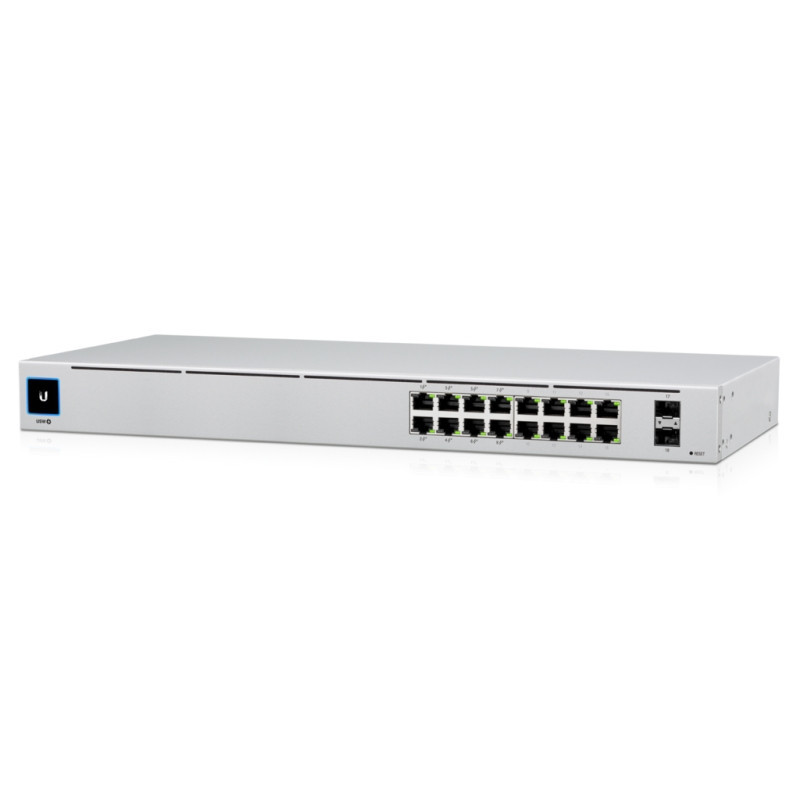

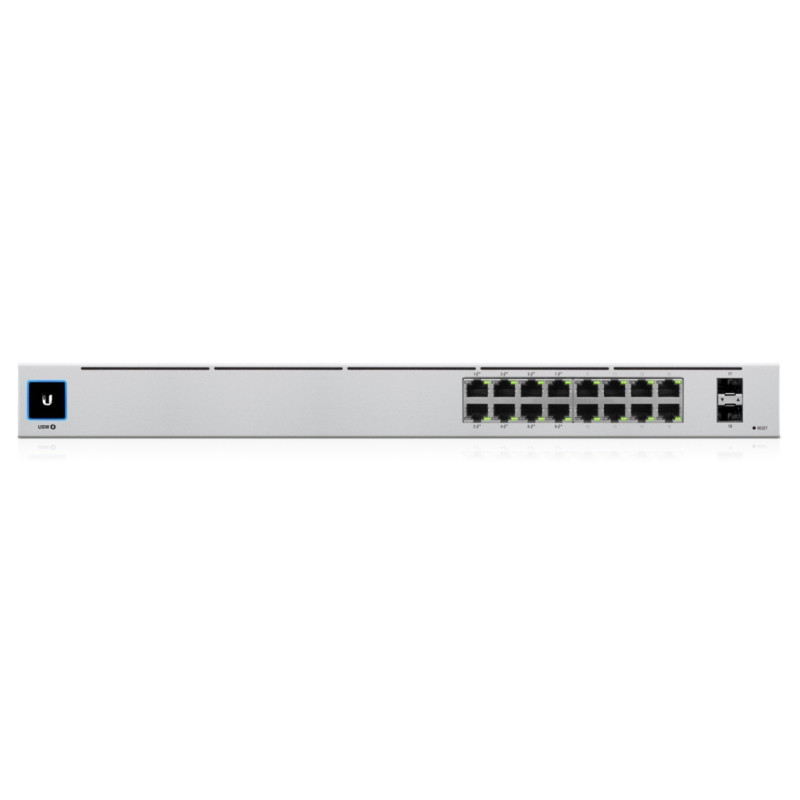

UBIQUITI 16 Gigabit ports POE Switch Gen2
Product reference:
18-USW-16-POE
UBIQUITI 16 Gigabit ports POE Switch Gen2
UBIQUITI 16 Gigabit ports POE Switch Gen2
Product reference:
18-USW-16-POE
UBIQUITI 16 Gigabit ports POE Switch Gen2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3' touch LCM to provide status information. With a depth of 7.9', the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
| Dimensions | 424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72') |
| Weight | 2.80 kg (6.17 lb) 2.89 kg (6.37 lb, With Rackmount Brackets) |
| Interfaces | Networking: (16) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports Management: Ethernet In-Band |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 60W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 18W |
| LEDs | System: Status RJ45 Data Ports: PoE; Speed/Link/Activity SFP Data Ports: Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Operating Humidity | 10 to 90% Non-condensing |
| Certifications | CE, FCC, IC |
| PoE Interfaces | Ports 1-8: POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE 802.3at | 32W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
