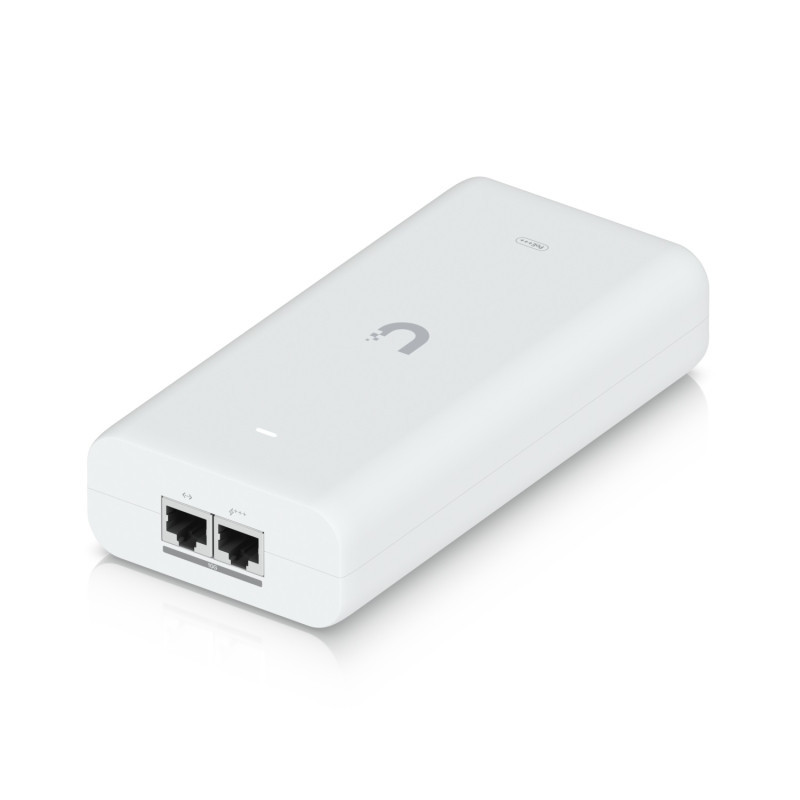

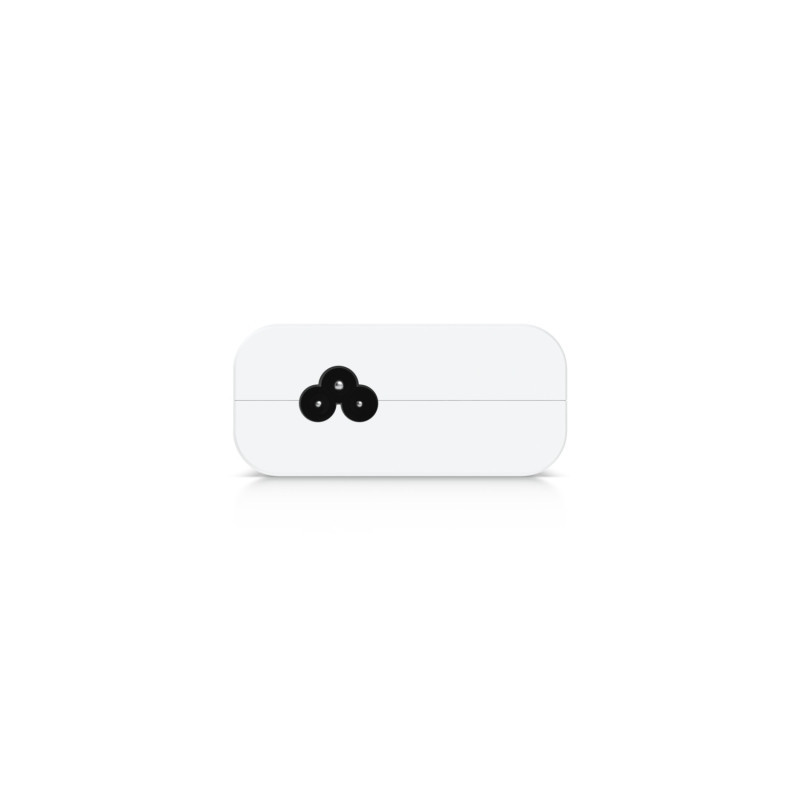

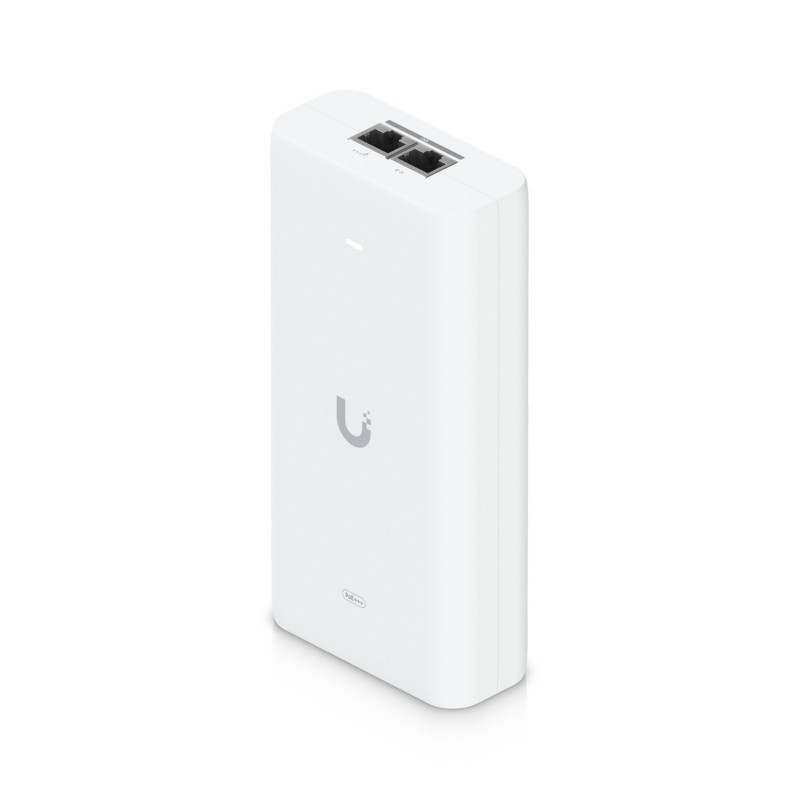

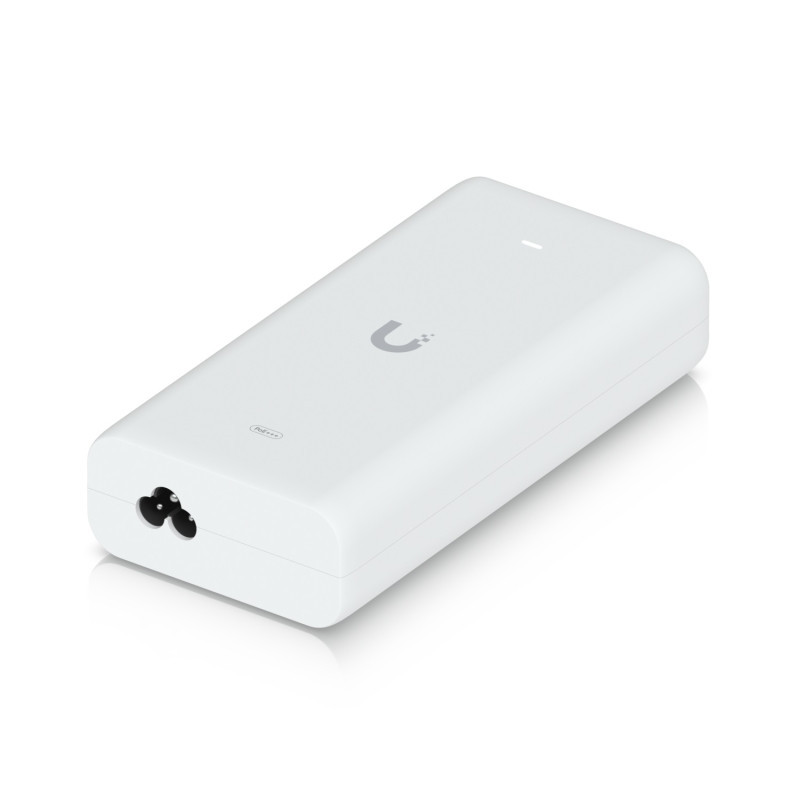

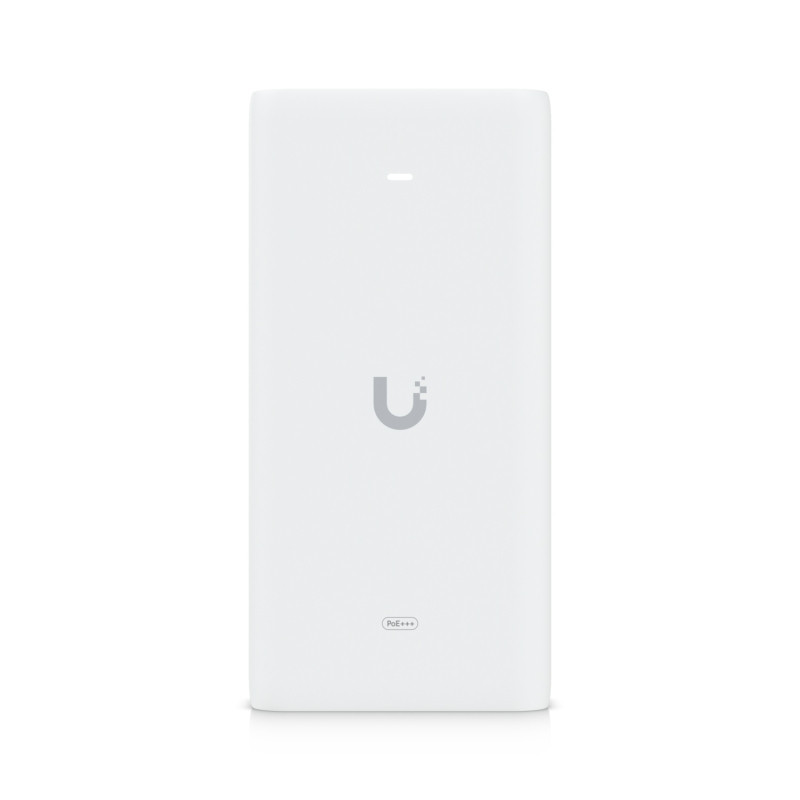

UBIQUITI 10G PoE+++ Adapter, 90W
Product reference:
18-UACC-PoE+++-10G
UBIQUITI 10G PoE+++ Adapter, 90W
UBIQUITI 10G PoE+++ Adapter, 90W
Product reference:
18-UACC-PoE+++-10G
UBIQUITI 10G PoE+++ Adapter, 90W
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
- Delivers up to 90W of PoE+++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE+++ output
- LED indicator for status monitoring
Dimensions: 164.5 x 81 x 42 mm (6.5 x 3.2 x 1.7")
Weight: 372 g (13.1 oz)
Power Cable: Included
Output Voltage: 54V DC @ 1.67A
Rated Voltage: 100-240V AC at 50/60Hz
Gigabit LAN Port: ✓
4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection: 11V data, 60V power
Data In / PoE: RJ45 shielded socket
Input Current: 1.5A Max.
Inrush Current: <120A peak @ 230V AC
Efficiency: > 88%
Switching Frequency: 65 kHz
Output Ripple: 1% Max.
Line Regulation: ≤ 2%
Load Regulation: ≤ 5%
Max. PoE+ Wattage per Port by PSE: 90W
Max. Surge Discharge: 1500A (8/20 μs) power
Peak Pulse Current: 36A (10/1000 μs) data
Response Time: <1 ns
Shunt Capacitance: <5 pF data
Surge Protection: Difference and common mode
Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
